5176C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

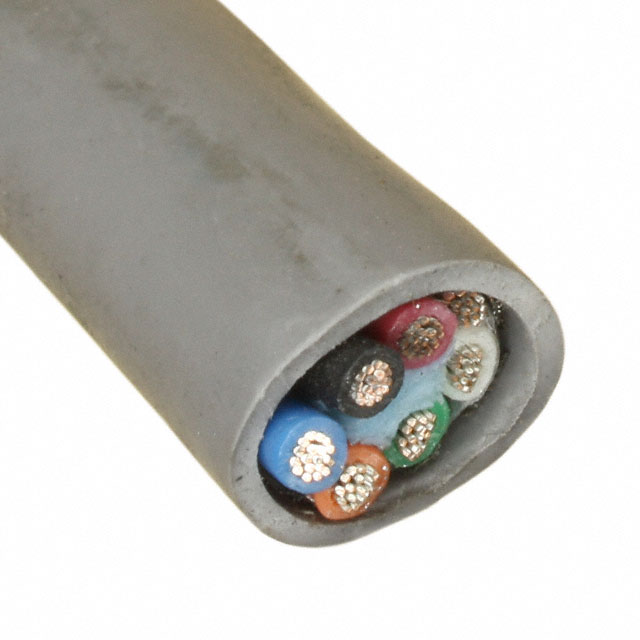

CABLE 6CON 16AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Shield Type | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Conductor Material | Jacket Color | Voltage | Features | Jacket (Insulation) Material | Wire Gauge | Usage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 100 ft | 30.5 m | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 16 AWG | Communication Control | 6 | 0.813 mm | 0.032 in | 0.371 in | 9.42 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | -35 °C | 105 ░C | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 16 AWG | Communication Control | 6 | 0.813 mm | 0.032 in | 0.371 in | 9.42 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | -35 °C | 105 ░C | 152.4 m | 500 ft | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Black | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 16 AWG | Communication Control | 6 | 0.813 mm | 0.032 in | 0.371 in | 9.42 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | -35 °C | 105 ░C | 304.8 m | 1000 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 16 AWG | Communication Control | 6 | 0.813 mm | 0.032 in | 0.371 in | 9.42 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | -35 °C | 105 ░C |
