2382 Series
Manufacturer: Pomona Electronics
Beta
⌘K

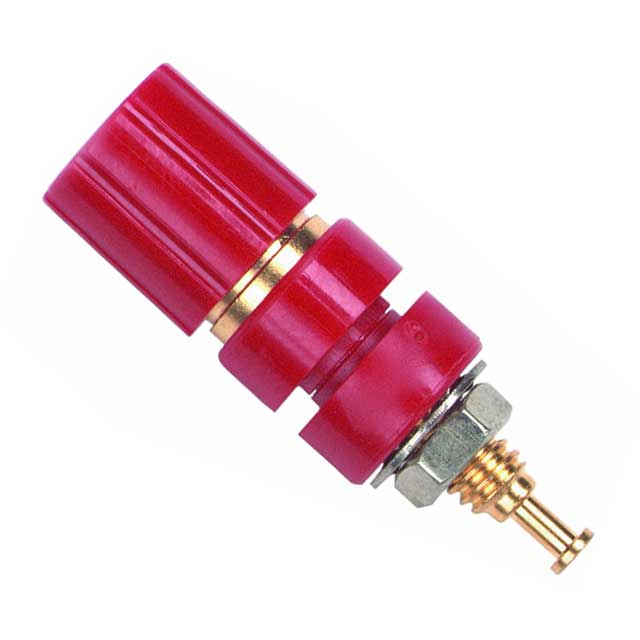

BINDING POST, 2382 SERIES, 5 A, 1.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, RED
| Part | Nut Plating | Voltage Rating | Head Size [custom] | Head Size [custom] | Head Size [diameter] | Head Size [diameter] | Nut Material | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Material - Insulation | Termination | Plating - Body | Color | Termination Thread | Type | Material - Body | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pomona Electronics | Nickel | 1500 VAC | 0.086 in | 2.18 mm | 9.65 mm | 0.38 in | Brass | 0.07 " | 0.17 in | 1.78 mm | 4.32 mm | Polycarbonate (PC) | Threaded and Turret | Gold | Red | 8-32 | Miniature | Brass | 5 A |

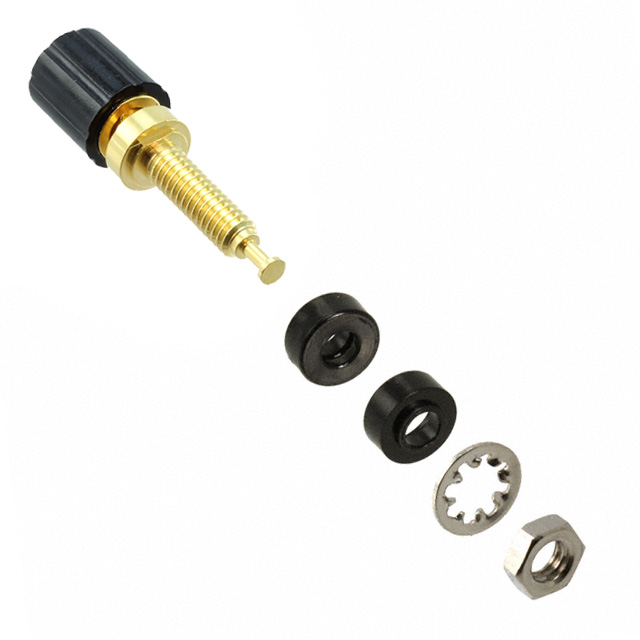

 Pomona Electronics | Nickel | 1500 VAC | 0.086 in | 2.18 mm | 9.65 mm | 0.38 in | Brass | 0.07 " | 0.17 in | 1.78 mm | 4.32 mm | Polycarbonate (PC) | Threaded and Turret | Gold | Black | 8-32 | Miniature | Brass | 5 A |
