PJ-12V150 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 12.5A 150W 18-PIN CARTON
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features | Voltage - Isolation | Power (Watts) | Current - Output 1 | Type | Number of Outputs | Voltage - Output 1 | Applications | Mounting Type | Efficiency | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70 °C | -10 °C | 7.4 in | 85 mm | 47 mm | 3.35 in | 1.85 in | 188 mm | Adjustable Output PFC Universal Input | 3000 V | 150 W | 12.5 A | Conformal Coated Enclosed | 1 | 12 V | ITE (Commercial) | Chassis Mount | 91 % | CB CE cURus TUV |

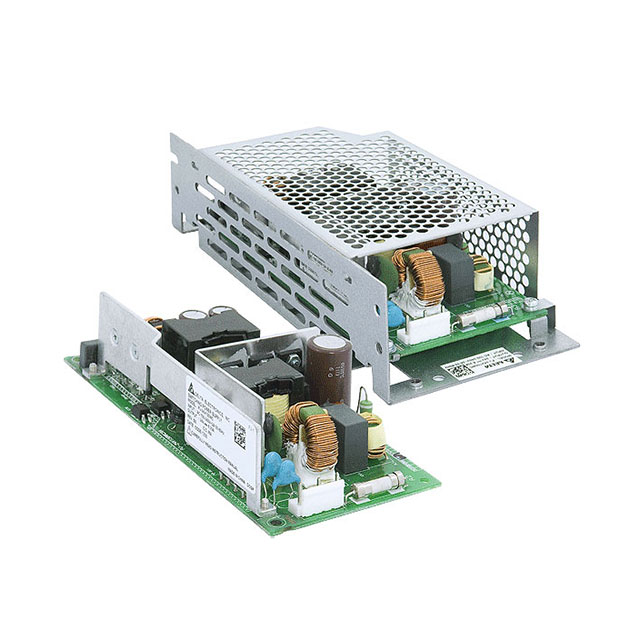

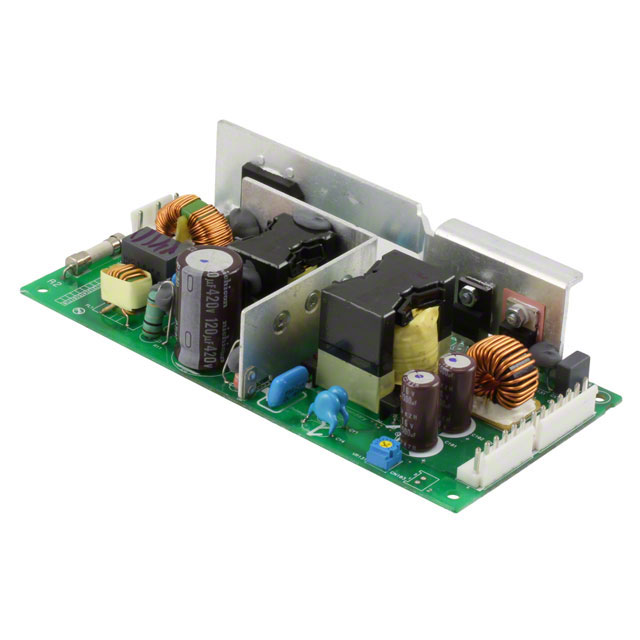

 Delta Electronics | 70 °C | -10 °C | 6.3 in | 75 mm | 37 mm | 2.95 " | 1.46 in | 160 mm | Adjustable Output PFC Universal Input | 3000 V | 150 W | 12.5 A | Open Frame Conformal Coated | 1 | 12 V | ITE (Commercial) | Chassis Mount | 91 % | CB CE cURus TUV |

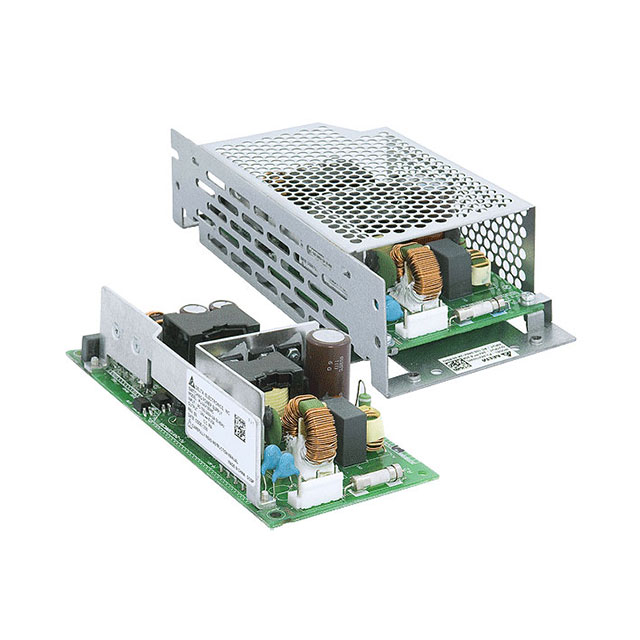

 Delta Electronics | 70 °C | -10 °C | 6.3 in | 75 mm | 37 mm | 2.95 " | 1.46 in | 160 mm | Adjustable Output PFC Remote On/Off Universal Input | 3000 V | 150 W | 12.5 A | Open Frame | 1 | 12 V | ITE (Commercial) | Chassis Mount | 91 % | CB CE cURus TUV |

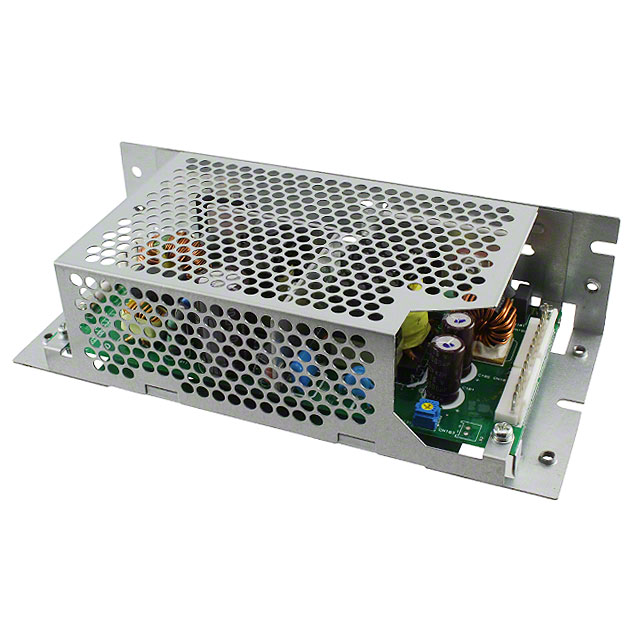

 Delta Electronics | 70 °C | -10 °C | 7.4 in | 85 mm | 47 mm | 3.35 in | 1.85 in | 188 mm | Adjustable Output PFC Remote On/Off Universal Input | 3000 V | 150 W | 12.5 A | Enclosed | 1 | 12 V | ITE (Commercial) | Chassis Mount | 91 % | CB CE cURus TUV |
