1986713 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

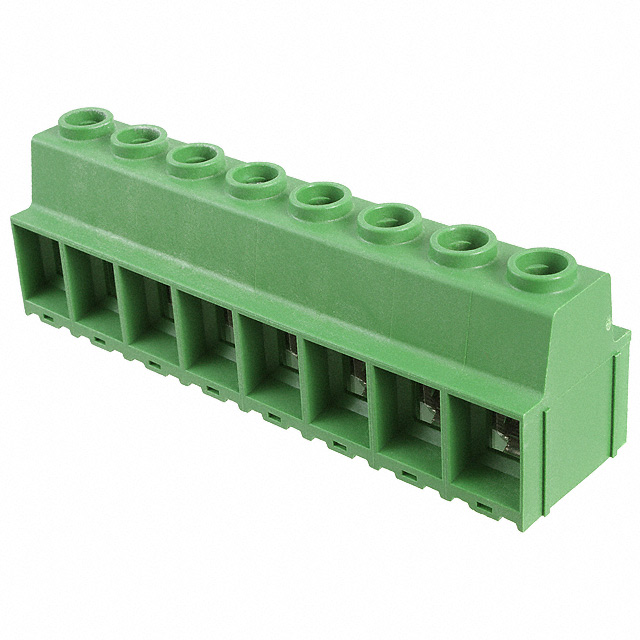

TERM BLK 8P SIDE ENTRY 15MM PCB
| Part | Screw Thread | Mounting Type | Mating Orientation | Number of Levels | Positions Per Level | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Wire Termination | Color | Contact Material - Plating | Pitch [x] | Pitch [x] | Screw Material - Plating | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Housing Material | Features | Current | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 8 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |
 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 7 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |

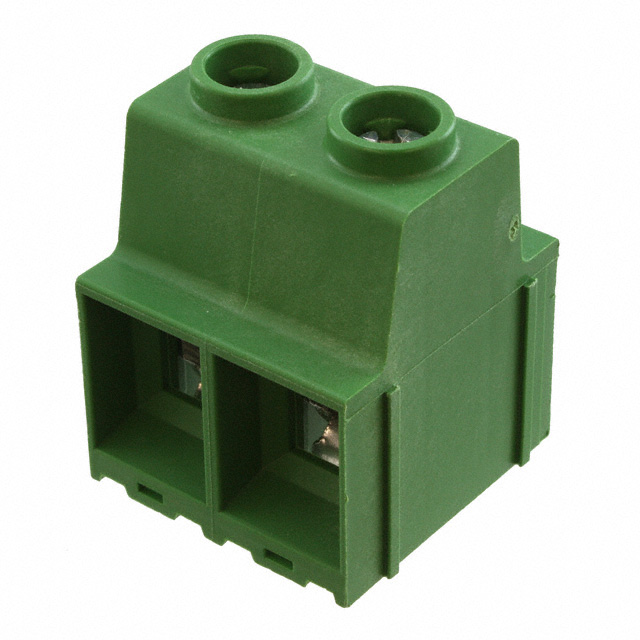

 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 2 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |
 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 5 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |

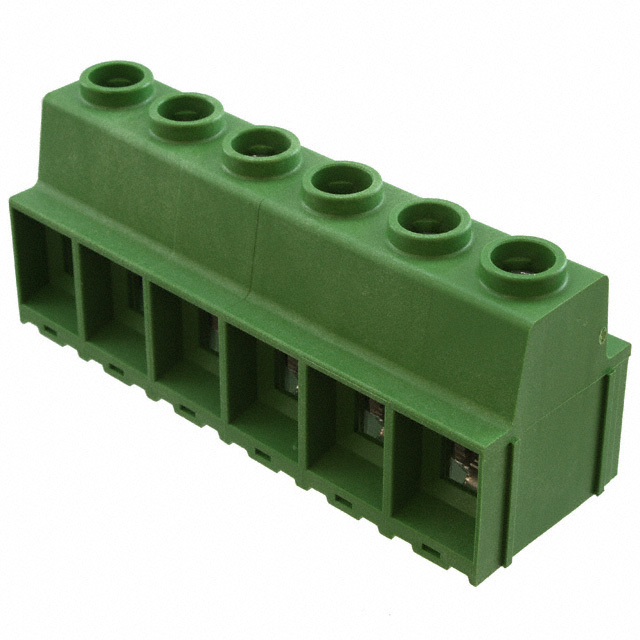

 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 6 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |

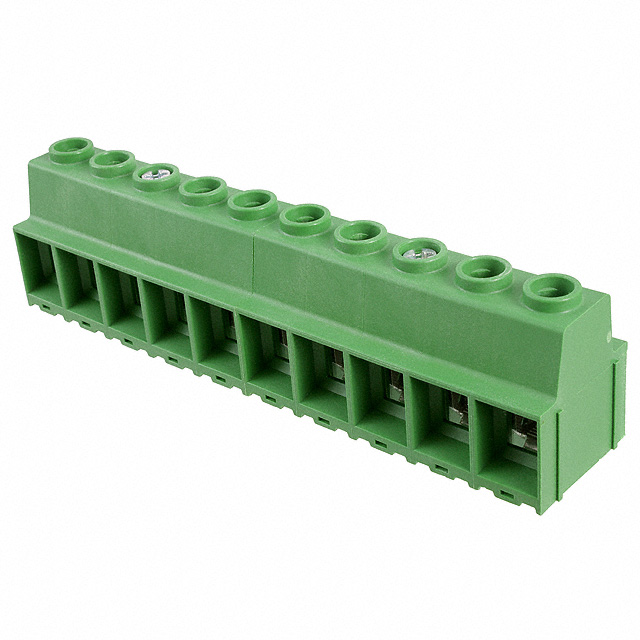

 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 10 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |
 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 4 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |
 TE Connectivity Raychem Cable Protection | M5 | Through Hole | Horizontal with Board | 1 | 12 | Tin Plated | Steel | Screw | Green | Copper Alloy - Tin Plated | 0.591 in | 15 mm | Nickel Plated Steel | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | Polyamide (PA) Nylon | Interlocking (Side) | 130 A | -40 °C | 110 °C | 600 V | 20 AWG | 1 AWG |
