3292P Series

Catalog

TRIMMER 50 OHM 0.5W PC PIN SIDE

Part	Temperature Coefficient	Resistive Material	Termination Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Resistance	Number of Turns	Mounting Type	Power (Watts)	Power (Watts)	Adjustment Type
Bourns Inc. 3292P-1-500	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	50 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-202LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	2 kOhms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-502LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	5 kOhms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-502	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	5 kOhms	25	Through Hole	0.5 W	0.5 W	Side Adjustment

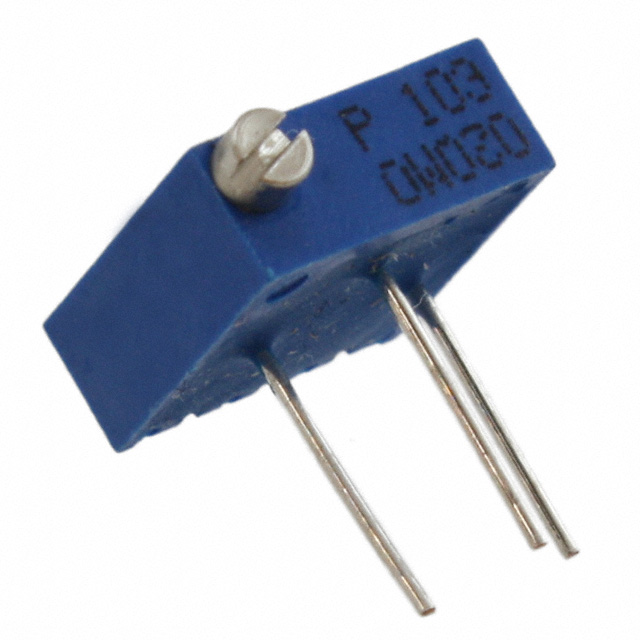

Bourns Inc. 3292P-1-103LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	10000 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-505LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	5000000 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-201LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	200 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-503	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	50000 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-501LF	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	0.5 kOhms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
Bourns Inc. 3292P-1-200	100 ppm/°C	Cermet	PC Pins	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	20 Ohms	25	Through Hole	0.5 W	0.5 W	Side Adjustment
