BQ24115 Series
Manufacturer: Texas Instruments
Beta
⌘K
SWITCHING BATTERY CHARGER LI-ION/LI-POL/NICD/NIMH 2000MA 2.1V TO 15.5V 20-PIN VQFN EP T/R
| Part | Programmable Features | Voltage - Supply (Max) [Max] | Battery Pack Voltage | Charge Current - Max [Max] | Number of Cells [Min] | Number of Cells [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Current - Charging | Mounting Type | Fault Protection | Package / Case | Primary Attributes | Primary Attributes | Primary Attributes [Max] | Primary Attributes [Min] | Function | Contents | Type | Supplied Contents | Secondary Attributes | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Current Timer | 16 V | 15.5 V | 2 A | 1 | 3 cells | 20-VQFN (3.5x4.5) | 85 °C | -40 °C | Multi-Chemistry | Constant - Programmable | Surface Mount | Over Temperature Over Voltage | 20-VFQFN Exposed Pad | |||||||||||

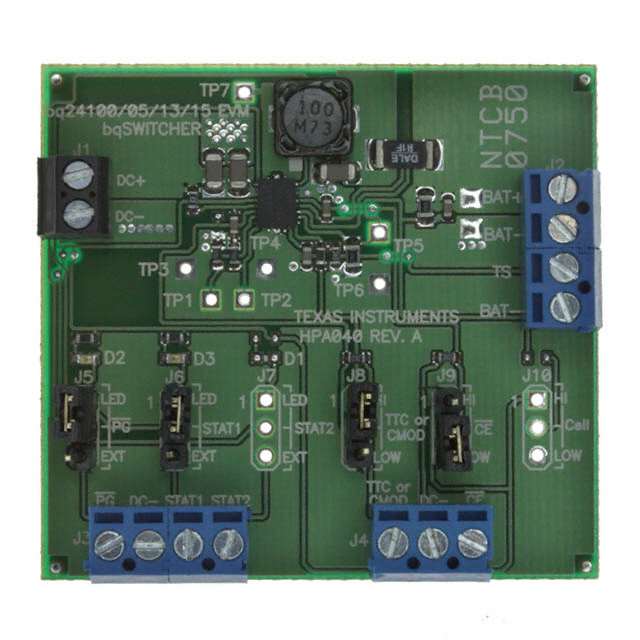

 Texas Instruments | 1 2 Inputs 2 A 3 Cells | Cell Li-Ion/ Li-Pol | 16 V | 5 V | Battery Charger | Board(s) | Power Management | Board(s) | Charge Conditioning Charge Status Charge Termination | BQ24115 |
