R3G190 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

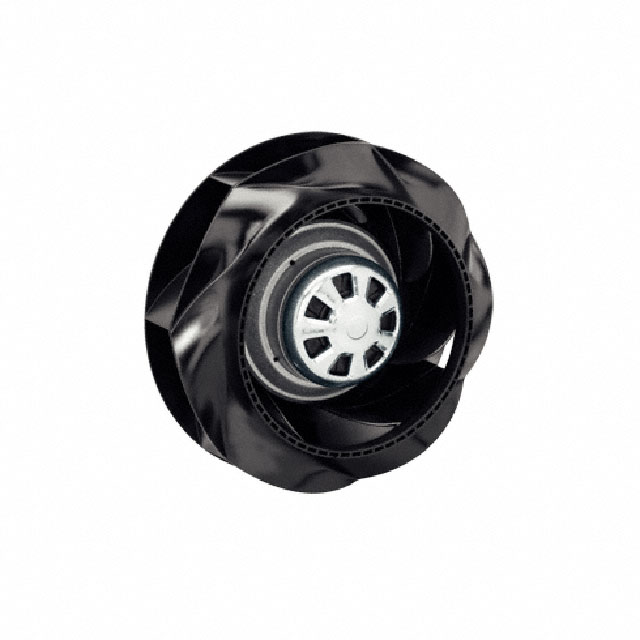

190 MM EC CENTRIFUGAL FAN
| Part | Material - Blade | Material - Frame | Features | Bearing Type | Air Flow | Air Flow | Power (Watts) | Width [x] | Size / Dimension [diameter] | Size / Dimension | Termination | Approval Agency | Fan Type | Noise | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Voltage - Rated | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | Electronic Commutation (EC) | Ball | 573.9 CFM | 16.07 m³/min | 169 W | 90.7 mm | 190 mm | Round | 2 Wire Leads | UL | Motorized Impellers | 72 dB(A) | 4120 RPM | -25 °C | 60 °C | 1.4 kg | 3 lb | 230 VAC | IP54 - Dust Protected Water Resistant |
