2412 Series
Manufacturer: Belden Inc.
Beta
⌘K

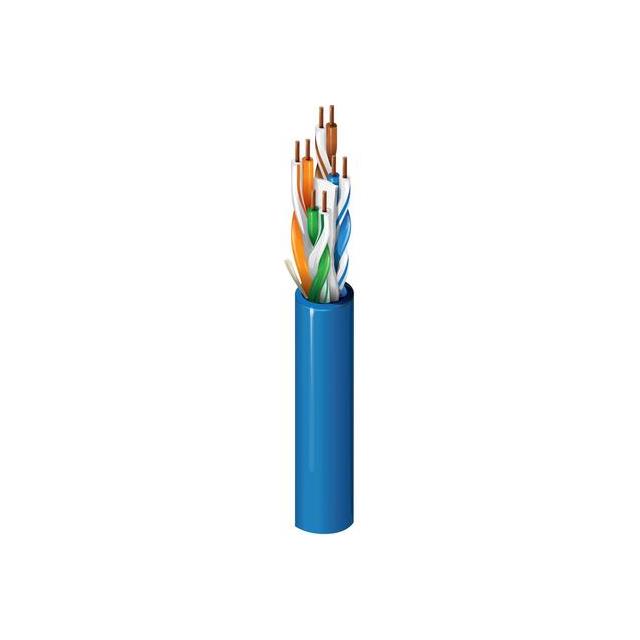

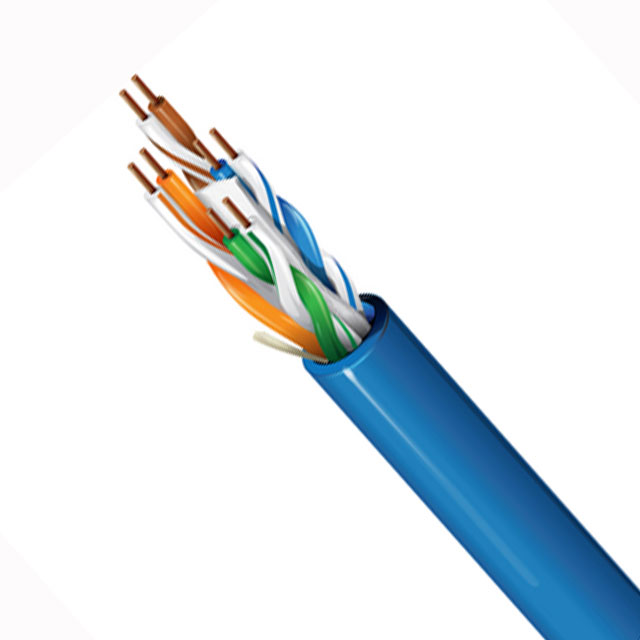

CAT6+ 4PR U/UTP CMR REEL
| Part | Features | Length | Length | Voltage | Number of Conductors | Conductor Material | Conductor Insulation | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Conductor Strand | Usage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Rip Cord | 2500 ft | 762 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Yellow | 23 AWG |
 Belden Inc. | Rip Cord | 2500 ft | 762 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Blue | 23 AWG |
Belden Inc. | Rip Cord | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Blue | 23 AWG | ||
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Orange | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Yellow | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Gray | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Blue | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Black | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | Green | 23 AWG |
Belden Inc. | Rip Cord | 1000 ft | 304.8 m | 300 VDC | 8 | Copper Bare | Polyolefin | PO | Multi-Pair Cat6 | Poly-Vinyl Chloride (PVC) Riser | Solid | Ethernet | UL Style CMR | 5.69 mm | 0.224 " | White | 23 AWG |
