1415536 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RTH34024WG
| Part | Coil Resistance | Operate Time | Termination Style | Must Release Voltage | Relay Type | Seal Rating | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Insulation | Must Operate Voltage | Coil Type | Release Time | Switching Voltage [Max] | Coil Current | Contact Material | Contact Form | Coil Voltage | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

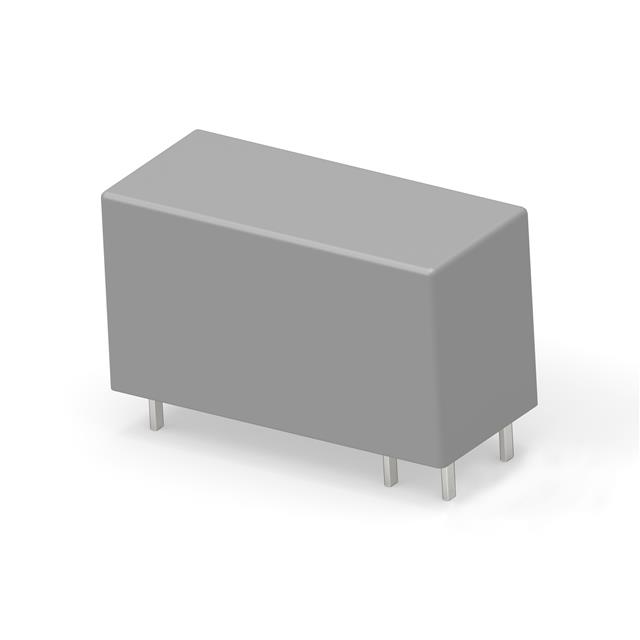

 TE Connectivity AMP Connectors | 1440 Ohms | 8 ms | PC Pin | 2.4 VDC | General Purpose | Sealed - Flux Protection | 6400 VA | -40 C | 105 ░C | 16 A | Class F | 16.8 VDC | Non Latching | 6 ms | 400 VAC | 16.7 mA | Silver Nickel (AgNi) | SPST-NO (1 Form A) | 24 VDC | CQC CSA cURus VDE | Through Hole |

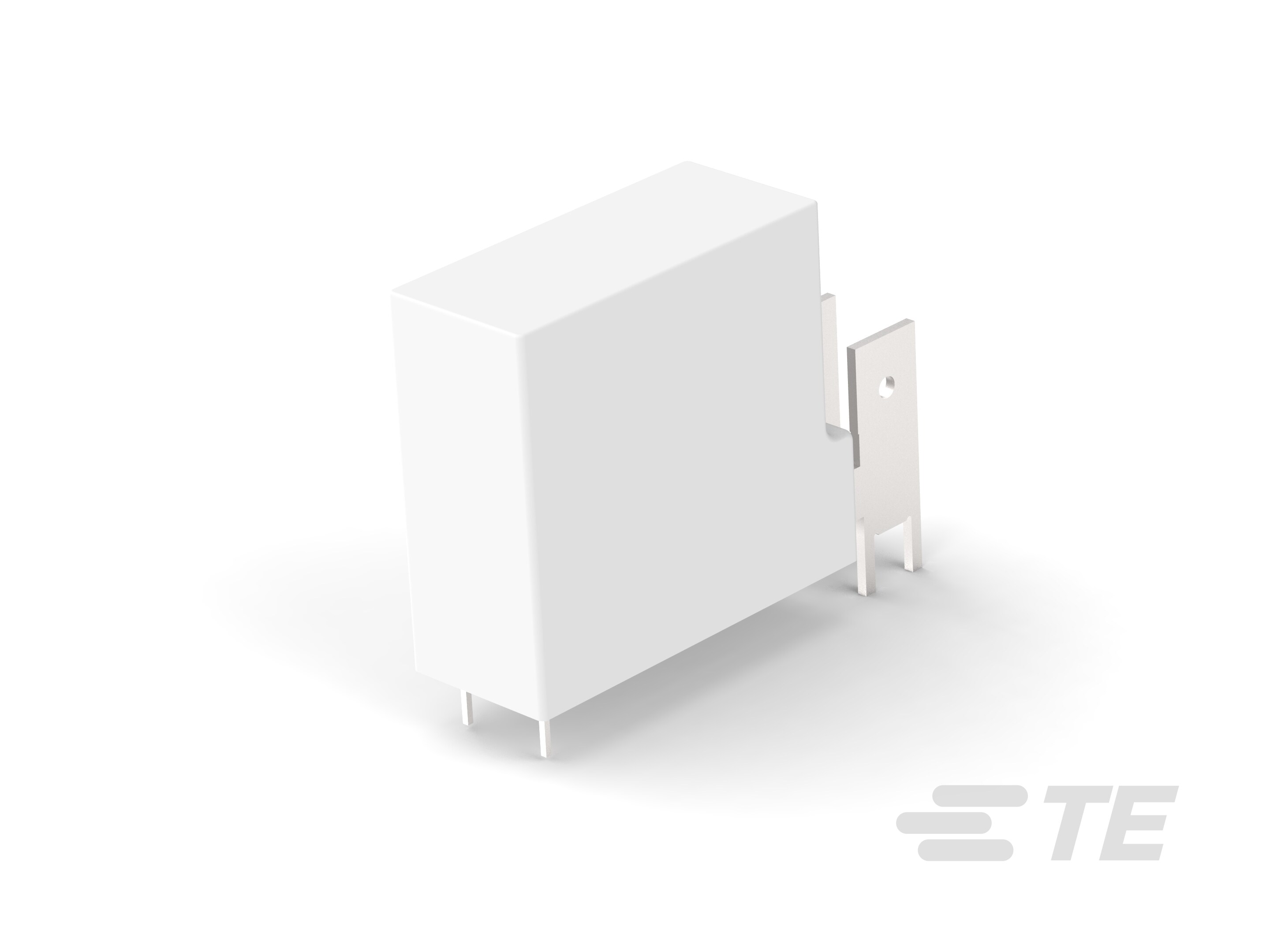

 TE Connectivity AMP Connectors | 400 Ohms | PC Pin Quick Connect - 0.250" (6.3mm) | 0.9 VDC | General Purpose | 6400 VA | -20 ░C | 85 °C | 16 A | 7.9 VDC | Non Latching | 400 VAC | 0.03 A | Silver Nickel (AgNi) | SPST-NO (DM) (1 Form X) | 12 VDC | cURus VDE | Through Hole | ||||
 TE Connectivity AMP Connectors | 1.6 kOhms | PC Pin Quick Connect - 0.250" (6.3mm) | 1.8 VDC | General Purpose | 6400 VA | -20 ░C | 85 °C | 16 A | 15.8 VDC | Non Latching | 400 VAC | 0.015 A | Silver Nickel (AgNi) | SPST-NO (DM) (1 Form X) | 24 VDC | cURus VDE | Through Hole |
