SPHWH2 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

Catalog

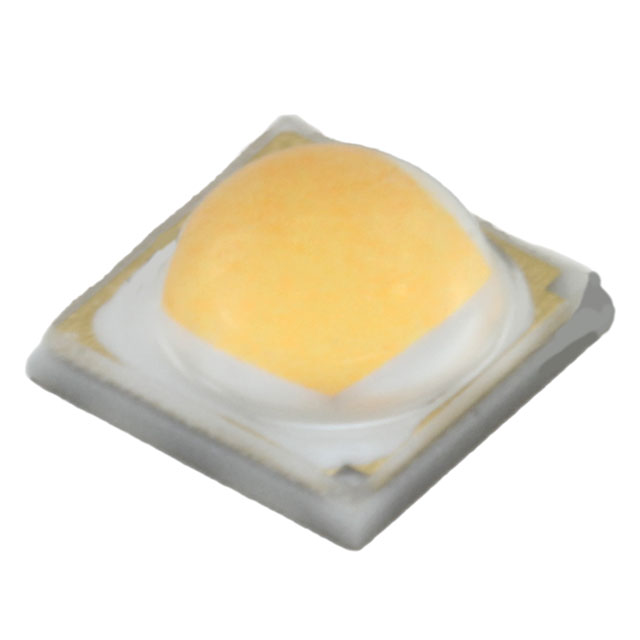

LED LH351B WARM WHT 3000K 3535

...

Part	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	CRI (Color Rendering Index)	CCT (K)	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Package / Case	Lumens/Watt @ Current - Test	Mounting Type	Thermal Resistance of Package	Flux @ 85°C, Current - Test	CCT (K)
Samsung Semiconductor, Inc. SPHWH2L3D30CD4VPK3	130 lm	160 lm	120 °	2.8 V	350 mA	70	3000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	148 lm/W	Surface Mount
Samsung Semiconductor, Inc. SPHWH2L3D30CD4TPP3	160 lm	190 lm	120 °	2.8 V	350 mA	70	4000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Neutral White	1414 (3535 Metric)	179 lm/W	Surface Mount	4 °C/W	175 lm
Samsung Semiconductor, Inc. SPHWH2L3D30GD4UPG3			120 °	2.8 V	350 mA	90	3500 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	117 lm/W	Surface Mount	4 °C/W	115 lm
Samsung Semiconductor, Inc. SPHWH2L3D30ED4UMJ3	120 lm	150 lm	120 °	2.8 V	350 mA	80	3500 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	138 lm/W	Surface Mount	4 °C/W	135 lm	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SPHWH2L3D30ED4V0M3	140 lm	170 lm	120 °	2.8 V	350 mA	80	3000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	158 lm/W	Surface Mount	4 °C/W	155 lm
Samsung Semiconductor, Inc. SPHWH2L3D30ED4TPG3			120 °	2.8 V	350 mA	80	4000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Neutral White	1414 (3535 Metric)	117 lm/W	Surface Mount	4 °C/W	115 lm
Samsung Semiconductor, Inc. SPHWH2L3D30CD4RTM3	140 lm	170 lm	120 °	2.8 V	350 mA	70	5000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Cool White	1414 (3535 Metric)	158 lm/W	Surface Mount	4 °C/W	155 lm
Samsung Semiconductor, Inc. SPHWH2L3D30ED4UPJ3	120 lm	150 lm	120 °	2.8 V	350 mA	80	3500 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	138 lm/W	Surface Mount	4 °C/W	135 lm
Samsung Semiconductor, Inc. SPHWH2L3D30CD4UMK3	130 lm	160 lm	120 °	2.8 V	350 mA	70	3500 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Warm White	1414 (3535 Metric)	148 lm/W	Surface Mount	4 °C/W		3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SPHWH2L3D30DD4RTK3	130 lm	160 lm	120 °	2.8 V	350 mA	75	5000 K	3535	0.138 in	0.138 in	3.5 mm	3.5 mm	1.5 A	0.081 "	2.06 mm	Cool White	1414 (3535 Metric)	148 lm/W	Surface Mount	4 °C/W
