MX84B Series

Catalog

CONN PIN HEADER 20 POS R/A PHEV/

Part	Number of Positions	Contact Length - Mating	Contact Length - Mating	Style	Contact Shape	Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Shrouding	Current Rating (Amps)	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Connector Type	Insulation Material	Contact Type	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Fastening Type	Color	Pitch	Pitch	Contact Termination	Row Spacing	Row Spacing	Note

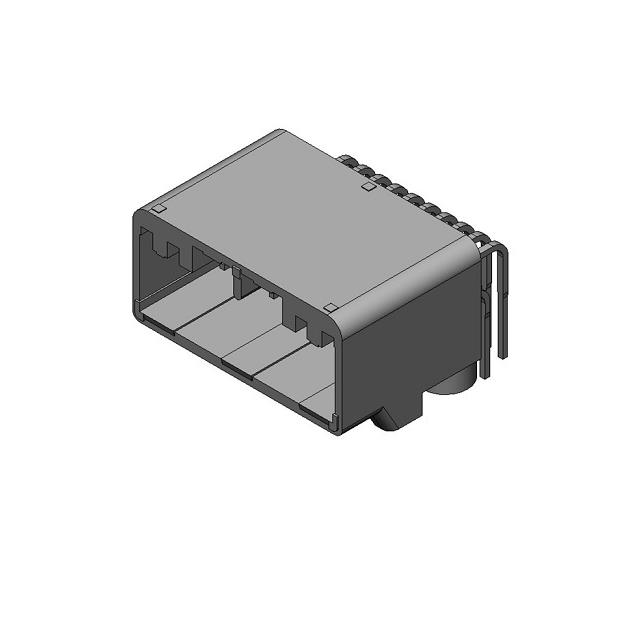

JAE Electronics MX84B020NF1	20	0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange	85 °C	-40 C	0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall	3 A	All	UL94 V-0	Black	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2

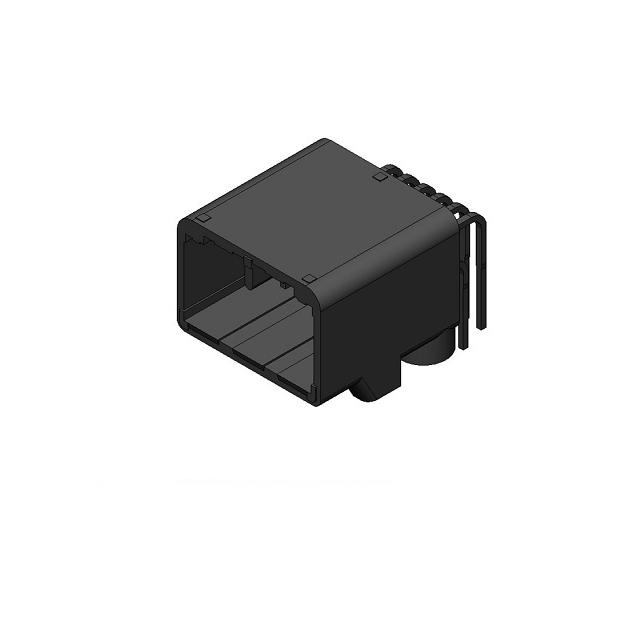

JAE Electronics MX84B012NF1	12	0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange	85 °C	-40 C	0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall	3 A	All	UL94 V-0	Black	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2	Locking Ramp
JAE Electronics MX84B024SF2	24						Retainer													Receptacle	Polybutylene Terephthalate (PBT)	Female Socket		Free Hanging (In-Line)					2	Latch Lock	Aqua	2.2 mm	0.087 in	Crimp	3 mm	0.118 "

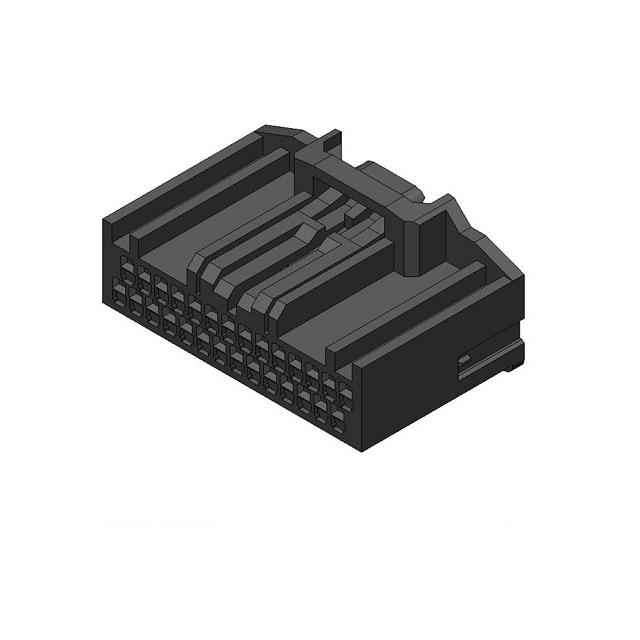

JAE Electronics MX84B028SF1	28							85 °C	-40 C											Receptacle	Polybutylene Terephthalate (PBT)	Female Socket		Free Hanging (In-Line)					2	Latch Holder	Black	2.2 mm	0.087 in	Crimp	3 mm	0.118 "	Contacts Not Included

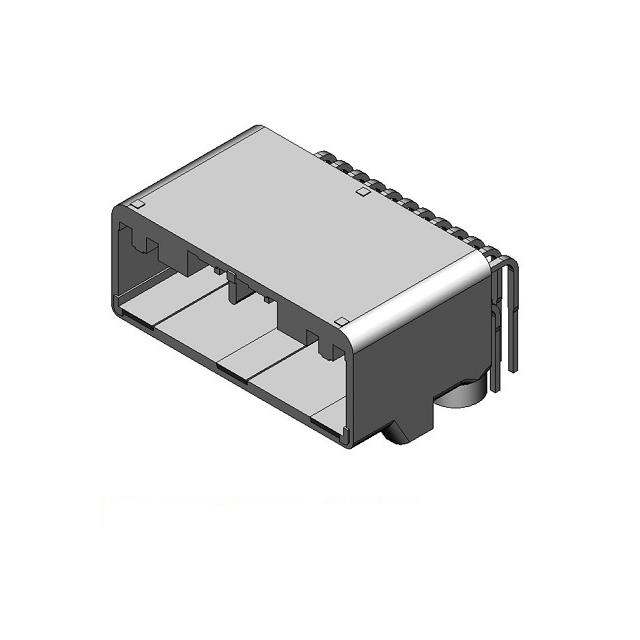

JAE Electronics MX84B024NF2	24	0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange			0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall		All		Aqua	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2

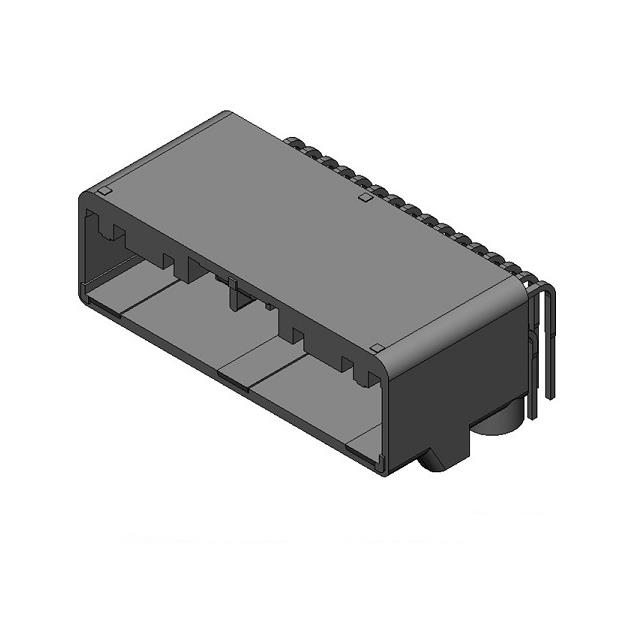

JAE Electronics MX84B032NF1		0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange	85 °C	-40 C	0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall	3 A	All	UL94 V-0	Black	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2	Locking Ramp

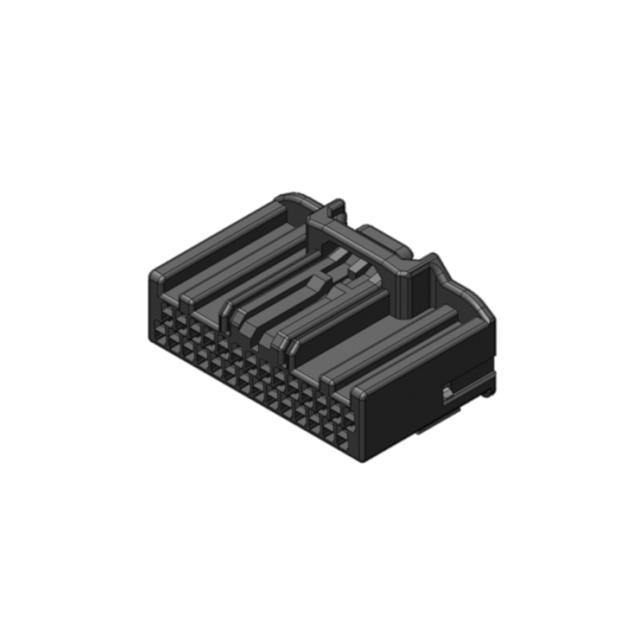

JAE Electronics MX84B032SF2							Retainer													Receptacle	Polybutylene Terephthalate (PBT)	Female Socket		Free Hanging (In-Line)					2	Latch Lock	Aqua	2.2 mm	0.087 in	Crimp	3 mm	0.118 "	Contacts Not Included

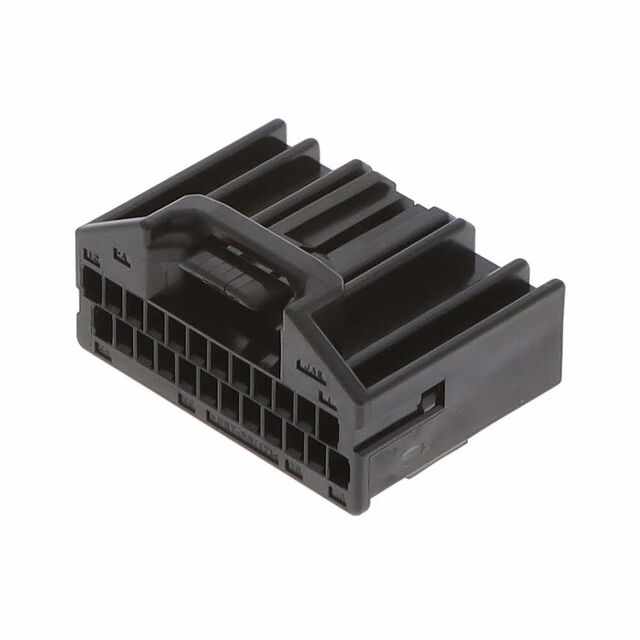

JAE Electronics MX84B024SF1	24							85 °C	-40 C											Receptacle	Polybutylene Terephthalate (PBT)	Female Socket		Free Hanging (In-Line)					2	Latch Holder	Black	2.2 mm	0.087 in	Crimp	3 mm	0.118 "	Contacts Not Included
JAE Electronics MX84B032NF2		0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange	85 °C	-40 C	0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall	3 A	All	UL94 V-0	Aqua	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2	Locking Ramp

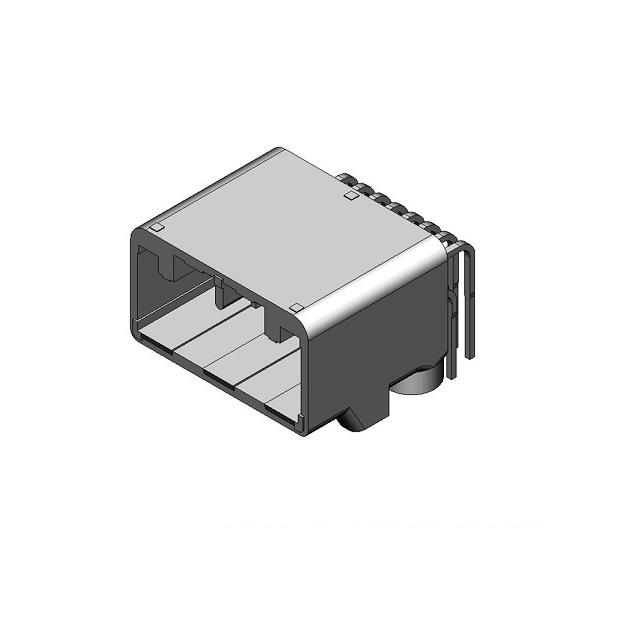

JAE Electronics MX84B016NF1	16	0.303 in	7.7 mm	Board to Cable/Wire	Square	Solder	Mounting Flange	85 °C	-40 C	0.626 in	15.9 mm	0.126 "	3.2 mm	Tin	Shrouded - 4 Wall	3 A	All	UL94 V-0	Black	Header	Glass Filled Syndiotactic Polystyrene (SPS)	Male Pin	Brass	Right Angle Through Hole	0.087 in	2.2 mm	0.118 in	3 mm	2	Locking Ramp
