29672 Series

Catalog

RELAY GEN PURPOSE DPDT 6A 60V

Part	Coil Resistance	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Features	Termination Style	Mounting Type	Release Time	Coil Current	Contact Rating (Current)	Contact Form	Coil Type	Relay Type	Approval Agency	Coil Voltage	Switching Voltage	Switching Voltage [Max]
Phoenix Contact 2967293	6 kOhms	8 ms	60 °C	-40 C	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Screw Terminal	DIN Rail	10 ms	10 mA	6 A	DPDT (2 Form C)	Non Latching	General Purpose	CE UKCA	60 VDC	250 VAC 250 VDC

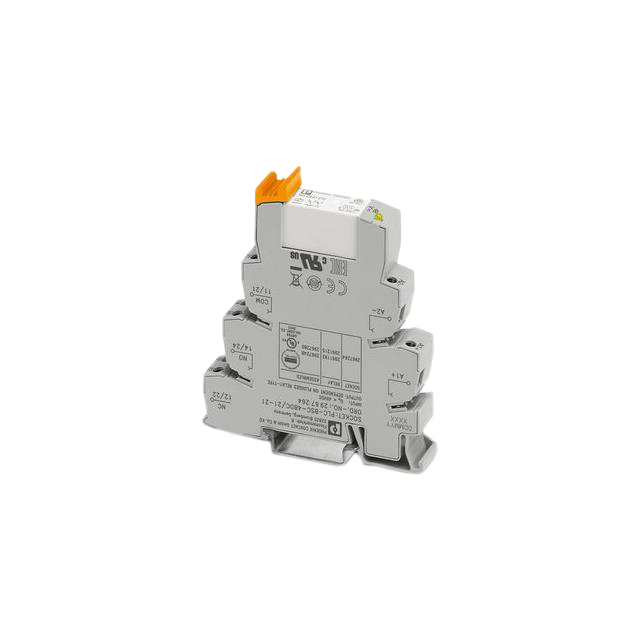

Phoenix Contact 2967280	2.4 kOhms	8 ms	60 °C	-25 °C	Gold (Au) Silver (Ag)	Lighted Indicator Socket Included	Screw Terminal	DIN Rail	10 ms	0.02 A	50 mA	DPDT (2 Form C)	Non Latching	General Purpose	cULus DNV EAC UL	48 VDC		30 VAC 36 VDC

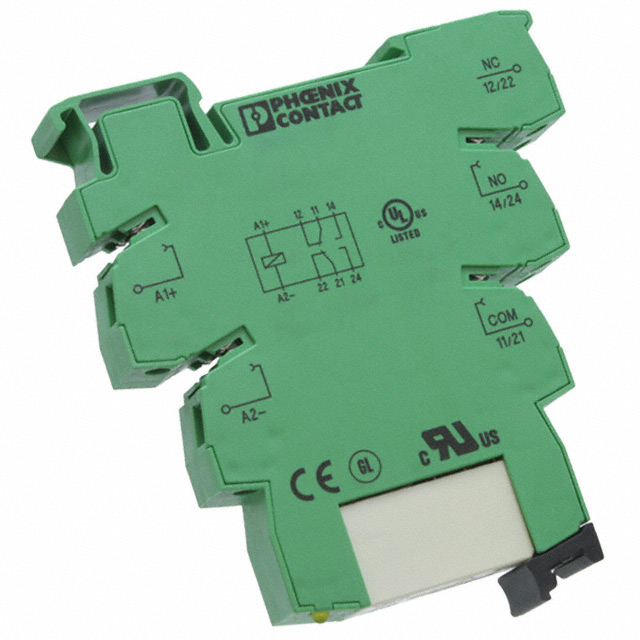

Phoenix Contact 2967248	2.4 kOhms	8 ms	60 °C	-25 °C	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Screw Terminal	DIN Rail	10 ms	0.02 A	6 A	DPDT (2 Form C)	Non Latching	General Purpose	CE UKCA	48 VDC	250 VAC 250 VDC

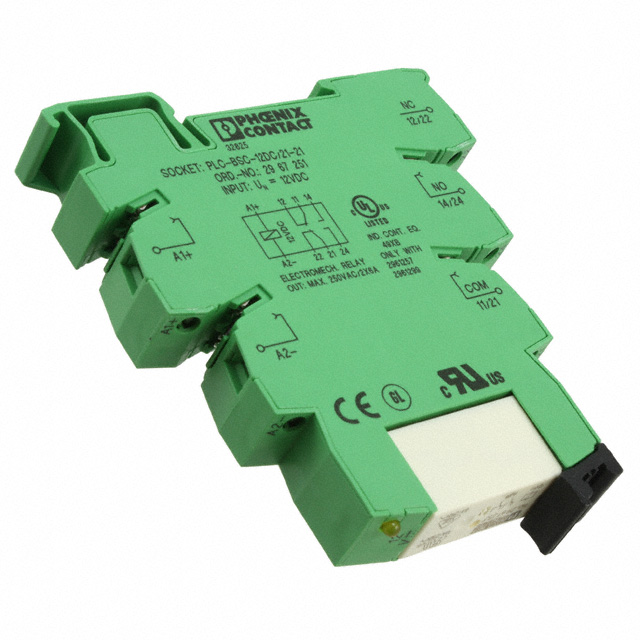

Phoenix Contact 2967235	364 Ohms	8 ms	60 °C	-40 C	Silver Nickel (AgNi)	Lighted Indicator Socket Included	Screw Terminal	DIN Rail	10 ms	33 mA	6 A	DPDT (2 Form C)	Non Latching	General Purpose	CE UKCA	12 VDC	250 VAC 250 VDC

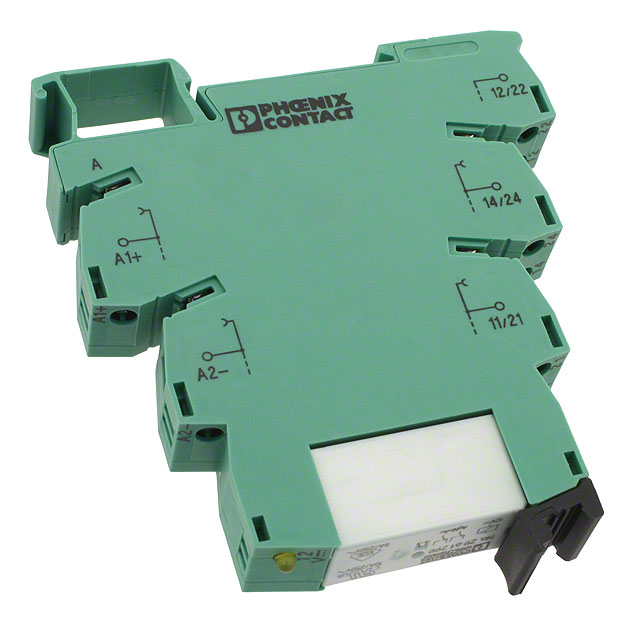

Phoenix Contact 2967277	364 kOhms	8 ms	60 °C	-40 C	Gold (Au) Silver (Ag)	Lighted Indicator Socket Included	Screw Terminal	DIN Rail	10 ms	33 mA	50 mA	DPDT (2 Form C)	Non Latching	General Purpose	cULus DNV EAC UL	12 VDC		30 VAC 36 VDC
