UT 4 Series
Manufacturer: Phoenix Contact
Beta
⌘K
DIN RAIL TERMINAL BLOCKS UT 4-L/HESILED 24 (5X20)
| Part | Material - Insulation | Stripping Length | Material Flammability Rating | Current - UL | Number of Levels | Number of Positions | Disconnect Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Type | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Terminal - Width [y] | Voltage - UL | Fuse Type [y] | Fuse Type [x] | Voltage - IEC | Features | Color | Termination Style | Current - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

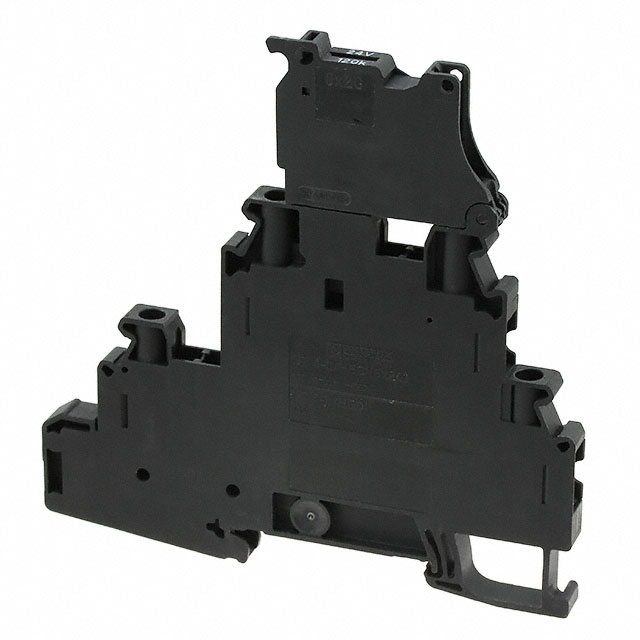

 Phoenix Contact | Nylon Polyamide (PA) | 9 mm | UL94 V-0 | 16 A | 2 | 4 | Fuse Lever | 26 AWG | 10 AWG | Disconnect Feed Through | 0.14 mm² | 4 mm² | 6.2 mm | 300 V | 20 mm | 5 mm | 500 V | LED | Black | Screw | |

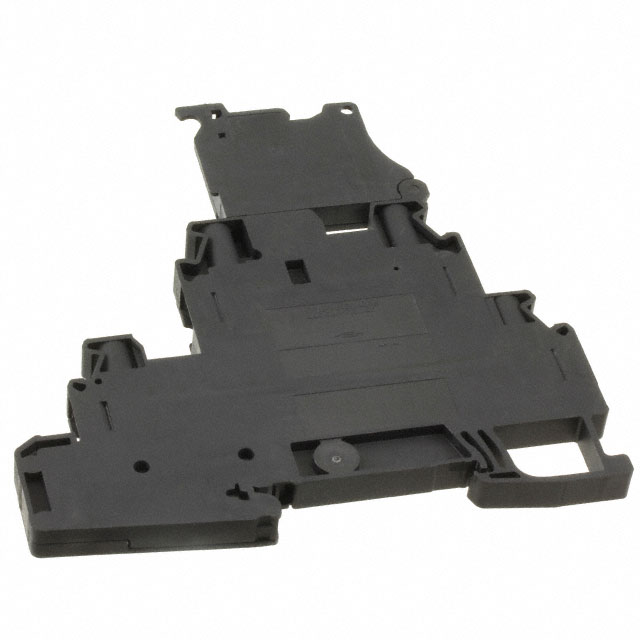

 Phoenix Contact | Nylon Polyamide (PA) | 9 mm | UL94 V-0 | 16 A | 3 | 5 | Fuse Lever | 26 AWG | 10 AWG | Disconnect Feed Through Isolated | 0.14 mm² | 4 mm² | 6.2 mm | 300 V | 20 mm | 5 mm | LED | Black | Screw | ||
 Phoenix Contact | 16 A | 3 | 5 | Lever Switch | 26 AWG | 10 AWG | Disconnect Feed Through Isolated | 0.14 mm² | 6 mm² | 6.2 mm | 300 V | 500 V | Gray | Screw | 36 A |
