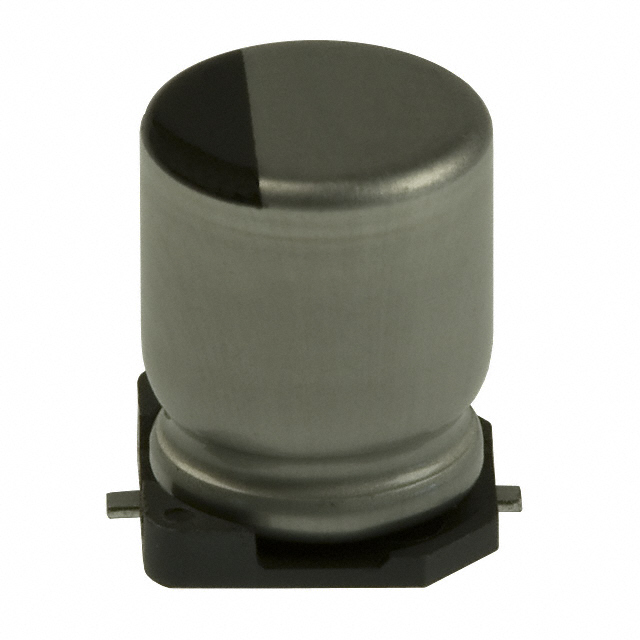

EEE-0JA Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 1000UF 20% 6.3V SMD

Part	Package / Case	Applications	Lifetime @ Temp.	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components EEE-0JA102UP	Radial Can - SMD	Automotive	2000 Hrs	500 mA	85 °C	-40 C	1000 µF	6.3 VDC	850 mA	20 %	AEC-Q200	0.315 in	8 mm	Polar	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	0.402 in	10.2 mm
Panasonic Electronic Components EEE-0JA470NP	Radial Can - SMD	Automotive	2000 Hrs	46 mA	85 °C	-40 C	47 µF	6.3 VDC	78.2 mA	20 %	AEC-Q200	0.248 "	6.3 mm	Bi-Polar	6.6 mm	6.6 mm	0.26 in	0.26 in	Surface Mount	0.213 in	5.4 mm
Panasonic Electronic Components EEE-0JA330WR	Radial Can - SMD	Automotive	1000 Hrs	22 mA	85 °C	-40 C	33 ÁF	6.3 VDC	37.4 mA	20 %	AEC-Q200	0.157 in	4 mm	Polar	4.3 mm	4.3 mm	0.169 in	0.169 "	Surface Mount	0.213 in	5.4 mm
Panasonic Electronic Components EEE-0JA330WAR	Radial Can - SMD	Automotive	1000 Hrs	22 mA	85 °C	-40 C	33 ÁF	6.3 VDC	37.4 mA	20 %	AEC-Q200	0.157 in	4 mm	Polar	4.3 mm	4.3 mm	0.169 in	0.169 "	Surface Mount	0.213 in	5.4 mm
Panasonic Electronic Components EEE-0JA101AP	Radial Can - SMD	Automotive	2000 Hrs	71 mA	85 °C	-40 C	100 µF	6.3 VDC	120.7 mA	20 %	AEC-Q200	0.248 "	6.3 mm	Polar	6.6 mm	6.6 mm	0.26 in	0.26 in	Surface Mount	0.213 in	5.4 mm
Panasonic Electronic Components EEE-0JA220SR	Radial Can - SMD	Automotive	2000 Hrs	29 mA	85 °C	-40 C	22 µF	6.3 VDC	49.3 mA	20 %	AEC-Q200	0.157 in	4 mm	Polar	4.3 mm	4.3 mm	0.169 in	0.169 "	Surface Mount	0.213 in	5.4 mm
Panasonic Electronic Components EEE-0JA471P	Radial Can - SMD	Automotive	2000 Hrs	380 mA	85 °C	-40 C	470 µF	6.3 VDC	646 mA	20 %	AEC-Q200	0.315 in	8 mm	Polar	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	0.402 in	10.2 mm
Panasonic Electronic Components EEE-0JA152UAP	Radial Can - SMD	Automotive	1000 Hrs	750 mA	85 °C	-40 C	1.5 mF	6.3 VDC	1.275 A	20 %	AEC-Q200	0.394 in	10 mm	Polar	10.3 mm	10.3 mm	0.406 "	0.406 in	Surface Mount	0.402 in	10.2 mm
Panasonic Electronic Components EEE-0JA152P	Radial Can - SMD	Automotive	2000 Hrs	750 mA	85 °C	-40 C	1.5 mF	6.3 VDC	1.275 A	20 %	AEC-Q200	0.394 in	10 mm	Polar	10.3 mm	10.3 mm	0.406 "	0.406 in	Surface Mount	0.402 in	10.2 mm
Panasonic Electronic Components EEE-0JA470AR	Radial Can - SMD	Automotive	2000 Hrs	46 mA	85 °C	-40 C	47 µF	6.3 VDC	78.2 mA	20 %	AEC-Q200	0.197 in	5 mm	Polar	0.209 in 5.3 mm	0.209 in 5.3 mm			Surface Mount	0.213 in	5.4 mm
