SI-LM40 Series

Catalog

LIMIT SWITCH: STANDARD IN-LINE

Part	Termination Style	Voltage Rating	Actuator Type	Approval Agency	Current Rating (Amps)	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Mechanical Life	Voltage Rating - AC	Mounting Type	Holding Force
BANNER ENGINEERING SI-LM40MKHD	Screw Terminal	24 VDC 110 VAC	Panel Disconnect	CE CSA UL	6 A 10 A	Non-Locking	IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NO/NC

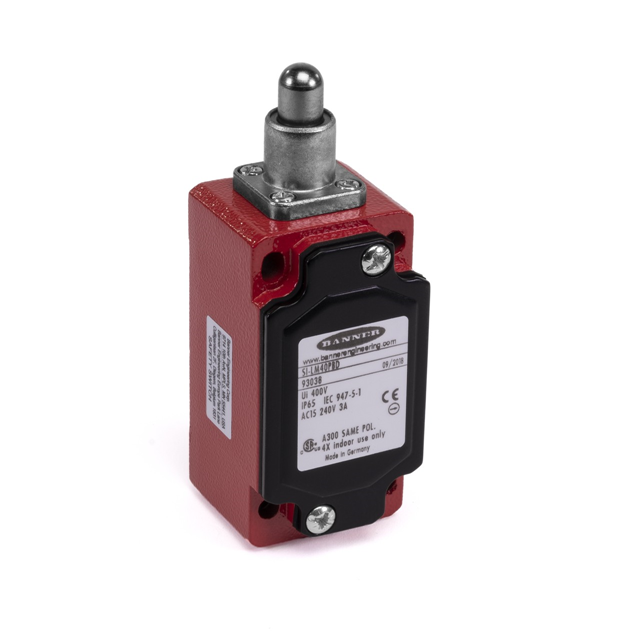

BANNER ENGINEERING SI-LM40PBD	Screw Terminal		Round (Pin Plunger)		6 A		IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NO/NC	Off-Mom On-Mom	1000000 Cycles	120 V	Chassis Mount
BANNER ENGINEERING SI-LM40KHF	Screw Terminal	24 VDC 110 VAC	Panel Disconnect	CE CSA UL	6 A 10 A	Non-Locking	IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	3PST-2NC/1NO
BANNER ENGINEERING SI-LM40RC18F	Screw Terminal		Roller Plunger		3 A		IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	3PST-2NC/1NO	Off-On On-Off	1000000 Cycles	120 V	Chassis Mount
BANNER ENGINEERING SI-LM40LA18E	Screw Terminal		Roller Side Rotary		6 A		IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NC	On-Off	1000000 Cycles	120 V	Chassis Mount

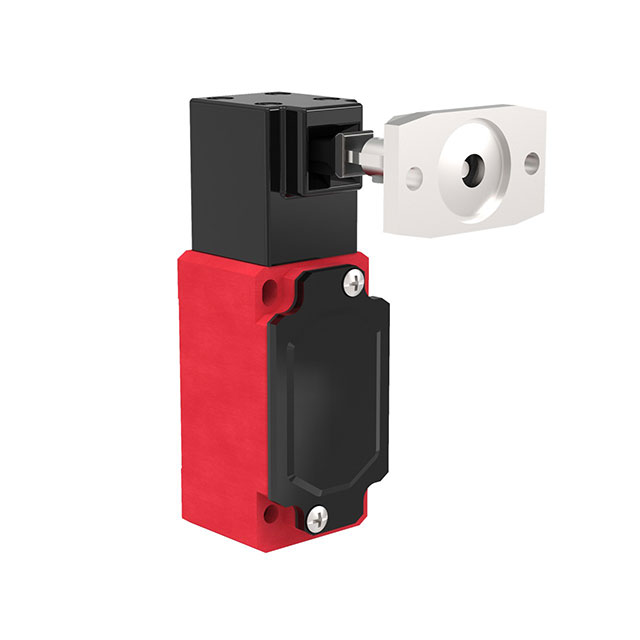

BANNER ENGINEERING SI-LM40MKHFF	Screw Terminal	24 VDC 110 VAC	Panel Disconnect	CE CSA UL	6 A 10 A	Non-Locking	IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	3PST-2NC/1NO
BANNER ENGINEERING SI-LM40LA18F	Screw Terminal		Roller Side Rotary		3 A		IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	3PST-2NC/1NO	Off-On On-Off	1000000 Cycles	120 V	Chassis Mount

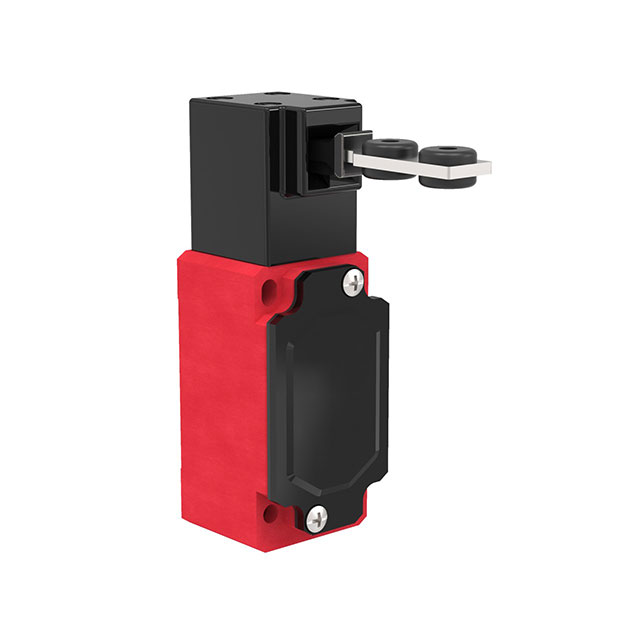

BANNER ENGINEERING SI-LM40MKHE	Screw Terminal	24 VDC 110 VAC	Panel Disconnect	CE CSA UL	6 A 10 A	Non-Locking	IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NC

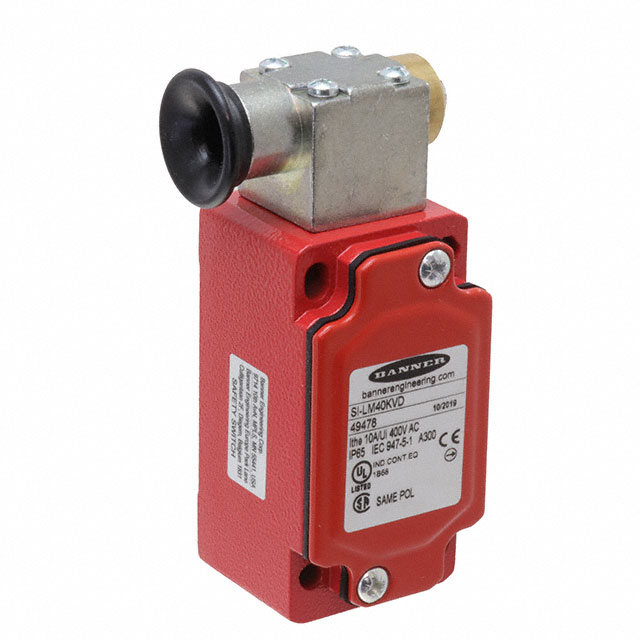

BANNER ENGINEERING SI-LM40KVD	Screw Terminal	24 VDC 110 VAC	Panel Disconnect	CE CSA UL	6 A 10 A	Non-Locking	IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NO/NC					2 kgf
BANNER ENGINEERING SI-LM40LA18D	Screw Terminal		Roller Side Rotary		6 A		IP65 - Dust Tight Water Resistant	80 °C	-30 ░C	DPST-NO/NC	Off-Mom On-Mom	1000000 Cycles	120 V	Chassis Mount
