QPS3150 Series
Manufacturer: NetPower
Beta
⌘K

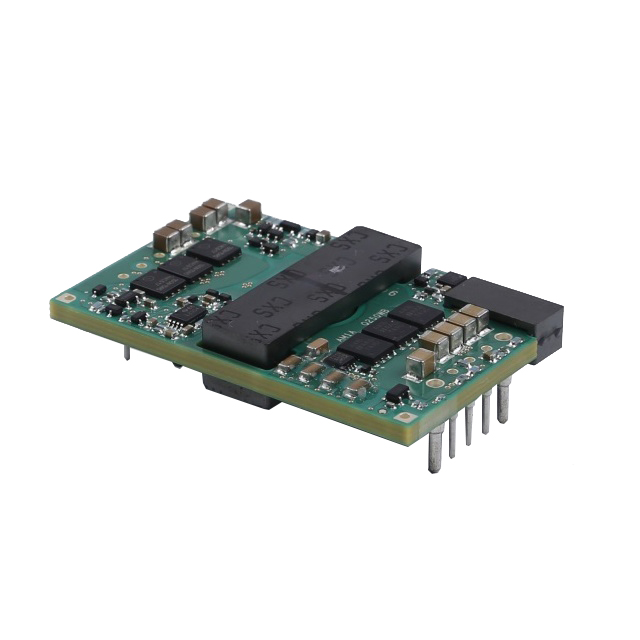

DC DC CONVERTER 15V 195W
| Part | Voltage - Input (Max) [Max] | Voltage - Isolation | Efficiency | Mounting Type | Package / Case | Voltage - Input (Min) [Min] | Features | Power (Watts) | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Control Features | Number of Outputs | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | 75 V | 2250 VDC | 93.5 % | Through Hole | Quarter Brick | 18 V | Adjustable Output Remote On/Off Remote Sense | 195 W | ITE (Commercial) | Isolated Module | 85 °C | -40 C | 0.4 " | 2.29 in | 37.1 mm | 1.46 " | 10.1 mm | 58.2 mm | Active Low Enable | 1 | 13 A | Quarter Brick | 15 V |
