PFR0612 Series

Catalog

FAN AXIAL 60X38MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Approval Agency	Fan Type	Termination	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Bearing Type	Features	RPM	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Weight	Weight	Noise	Static Pressure
Delta Electronics PFR0612XHE-F00	7 V	13.2 VDC	Plastic	2.3 A	70000 Hrs	Plastic	CE cURus TUV	Tubeaxial	3 Wire Leads	60 mm	60 mm	27.6 W	70 °C	-10 °C	2.13 mł/min	76.2 CFM	Ball	Locked Rotor Protection Speed Sensor (Tach)	16500 RPM	793.4 Pa	3.185 in H2O	38 mm	12 VDC	130.18 g	0.287 lb
Delta Electronics PFR0612UHE-F00	7 V	13.2 VDC	Plastic	1 A	70000 Hrs	Plastic	CE cURus TUV	Tubeaxial	3 Wire Leads	60 mm	60 mm	12 W	70 °C	-10 °C	1.59 mł/min	56.7 CFM	Ball	Locked Rotor Protection Speed Sensor (Tach)	12500 RPM		492.9 Pa	38 mm	12 VDC	130.18 g	0.287 lb	60.2 dB(A)	1.979 in H2O

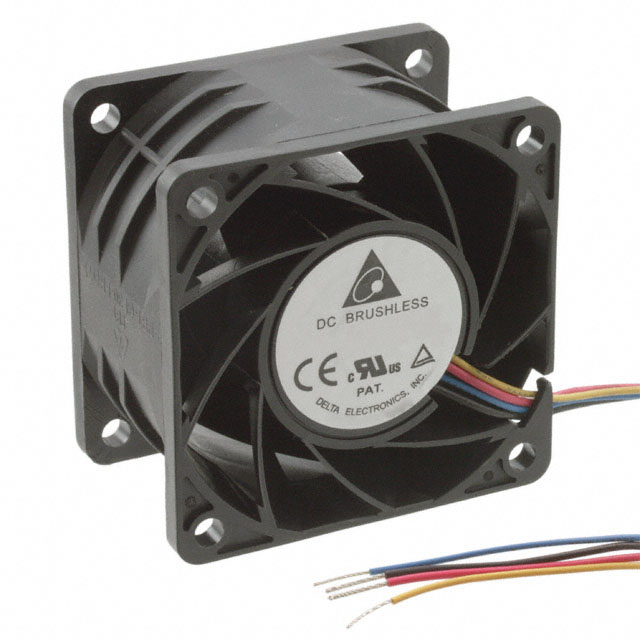

Delta Electronics PFR0612XHE-SP00	7 V	13.2 VDC	Plastic	2.3 A	70000 Hrs	Plastic	CE cURus TUV	Tubeaxial	4 Wire Leads	60 mm	60 mm	27.6 W	70 °C	-10 °C	2.13 mł/min	76.2 CFM	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	16500 RPM	793.4 Pa	3.185 in H2O	38 mm	12 VDC	130.18 g	0.287 lb

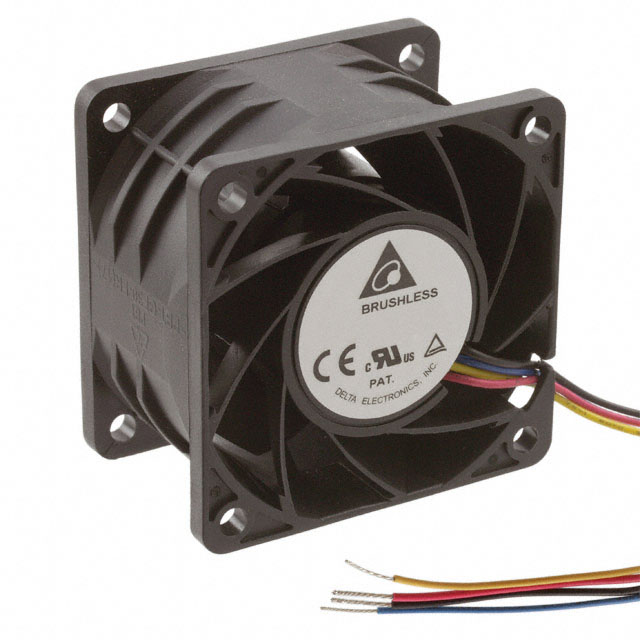

Delta Electronics PFR0612DHE-SP00	7 V	13.2 VDC	Plastic	1.6 A	70000 Hrs	Plastic	CE cURus TUV	Tubeaxial	4 Wire Leads	60 mm	60 mm	19.2 W	70 °C	-10 °C	1.85 m³/min	66 CFM	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	14500 RPM		623.2 Pa	38 mm	12 VDC	130.18 g	0.287 lb	63.3 dB(A)	2.502 in H2O

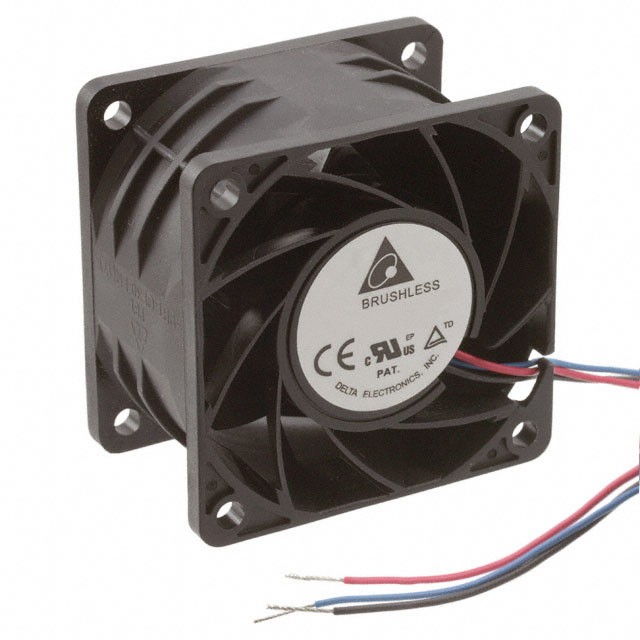

Delta Electronics PFR0612DHE-F00	7 V	13.2 VDC	Plastic	1.6 A	70000 Hrs	Plastic	CE cURus TUV	Tubeaxial	3 Wire Leads	60 mm	60 mm	19.2 W	70 °C	-10 °C	1.85 m³/min	66 CFM	Ball	Locked Rotor Protection Speed Sensor (Tach)	14500 RPM		623.2 Pa	38 mm	12 VDC	130.18 g	0.287 lb	63.3 dB(A)	2.502 in H2O
