5GD Series
Manufacturer: Bivar Inc.
Beta
⌘K

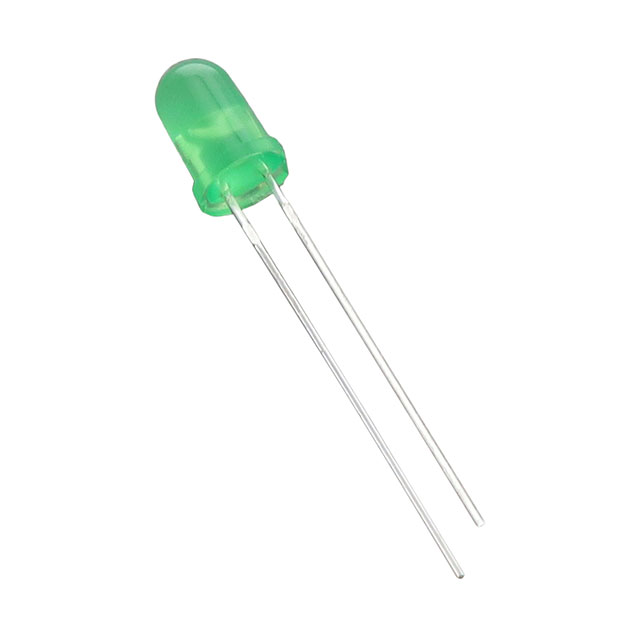

LED, THROUGH HOLE, 5MM, GREEN, 568NM, 5MCD, DIFFUSED LENS, 45 DEG VIEWING ANGLE, LOW CURRENT / BAG
| Part | Current - Test | Viewing Angle | Wavelength - Peak | Lens Size | Lens Size | Configuration | Lens Transparency | Millicandela Rating | Mounting Type | Height (Max) [z] | Lens Color | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Lens Style | Color | Package / Case | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 2 mA | 45 ° | 568 nm | 5 mm | T-1 3/4 | Standard | Diffused | 5 mcd | Through Hole | 8.5 mm | Green | 2.1 V | T-1 3/4 | Round with Domed Top | Green | Radial | |
 Bivar Inc. | 2 mA | 40 ° | 568 nm | 5 mm | T-1 3/4 | Standard | Diffused | 4 mcd | Through Hole | Green | 2.1 V | T-1 3/4 | Round with Domed Top | Green | Radial | 8.6 mm | |
Bivar Inc. | 20 mA | 45 ° | 568 nm | 5 mm | T-1 3/4 | Standard | Diffused | 25 mcd | Through Hole | 8.5 mm | Green | 2.1 V | T-1 3/4 | Round with Domed Top | Green | Radial | |
 Bivar Inc. | 20 mA | 40 ° | 568 nm | 5 mm | T-1 3/4 | Standard | Diffused | 25 mcd | Through Hole | Green | 2.1 V | T-1 3/4 | Round with Domed Top | Green | Radial | 8.6 mm |
