207121 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

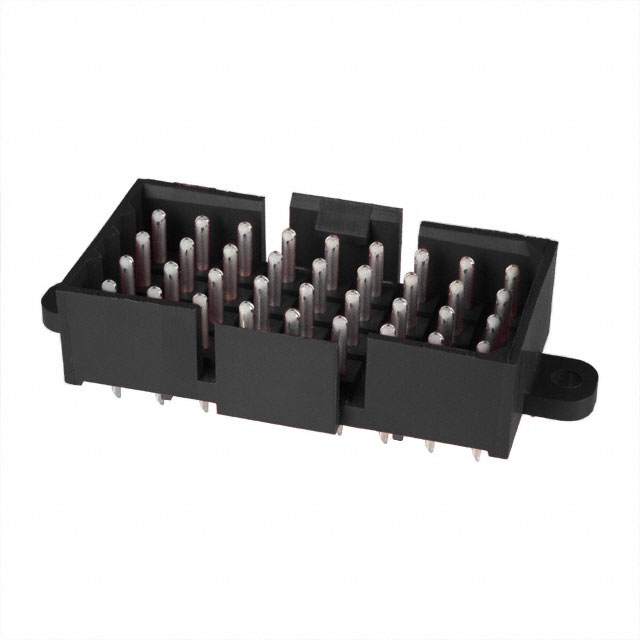

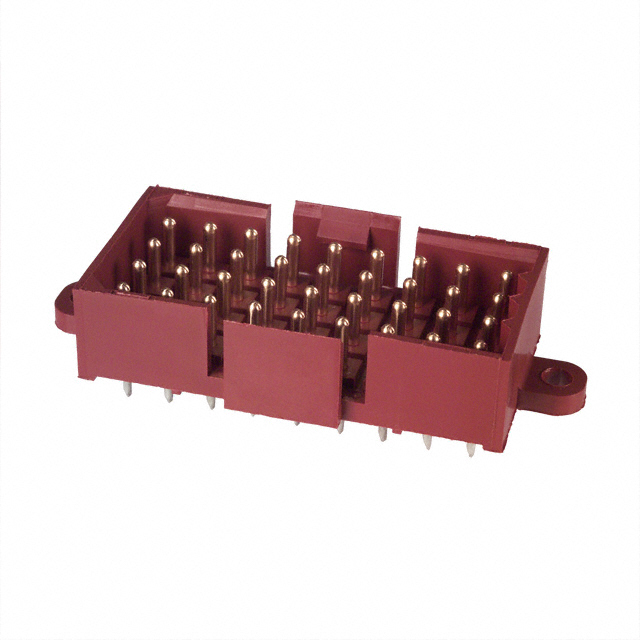

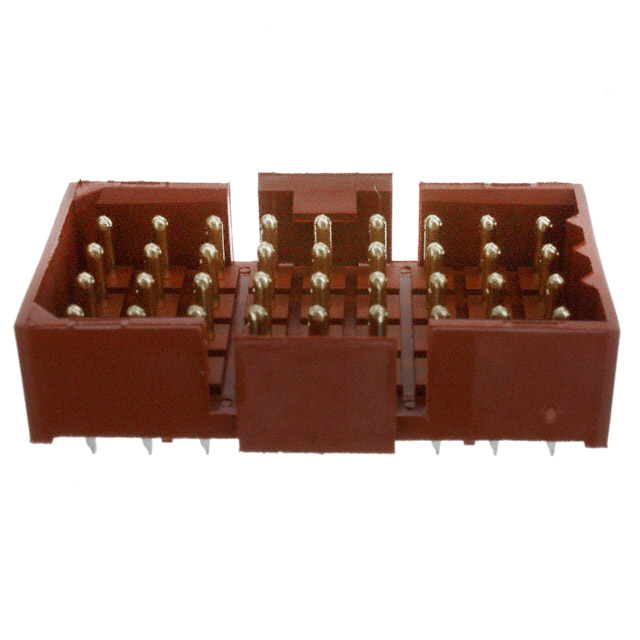

CONN HEADER VERT 36POS 5MM
| Part | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Applications | Contact Shape | Style | Insulation Material | Shrouding | Contact Finish - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Number of Positions | Contact Finish - Post | Termination | Insulation Height | Insulation Height | Mounting Type | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black Red | 5 mm | 0.197 " | 0.181 in | 4.6 mm | 130 °C | -55 °C | 7.5 A | Header | 5 mm | 0.197 in | 600 V | All | 150 Áin | 3.81 Ám | Brass | Automotive General Purpose Industrial | Circular | Board to Board Cable | Nylon Polyamide (PA) | Shrouded - 4 Wall | Gold PdNi +Gold | Latch Lock | 30 Áin | 0.76 Ám | Male Pin | 36 | Tin | Solder | 0.464 in | 11.79 mm | Through Hole | UL94 V-0 | |
 TE Connectivity Raychem Cable Protection | Black Red | 5 mm | 0.197 " | 0.181 in | 4.6 mm | 130 °C | -55 °C | 7.5 A | Header | 5 mm | 0.197 in | 600 V | All | 150 Áin | 3.81 Ám | Brass | Automotive General Purpose Industrial | Circular | Board to Board Cable | Nylon Polyamide (PA) | Shrouded - 4 Wall | Gold PdNi +Gold | Latch Lock | 30 Áin | 0.76 Ám | Male Pin | 36 | Tin | Solder | 0.464 in | 11.79 mm | Through Hole | UL94 V-0 | Mounting Flange |
TE Connectivity Raychem Cable Protection | Black Red | 5 mm | 0.197 " | 0.181 in | 4.6 mm | 130 °C | -55 °C | 7.5 A | Header | 5 mm | 0.197 in | 600 V | All | 150 Áin | 3.81 Ám | Brass | Automotive General Purpose Industrial | Circular | Board to Board Cable | Nylon Polyamide (PA) | Shrouded - 4 Wall | Gold | Latch Lock | 30 Áin | 0.76 Ám | Male Pin | 36 | Tin-Lead | Solder | 0.464 in | 11.79 mm | Through Hole | UL94 V-0 | |
TE Connectivity Raychem Cable Protection | Black Red | 5 mm | 0.197 " | 0.181 in | 4.6 mm | 130 °C | -55 °C | 7.5 A | Header | 5 mm | 0.197 in | 600 V | All | 150 Áin | 3.81 Ám | Brass | Automotive General Purpose Industrial | Circular | Board to Board Cable | Nylon Polyamide (PA) | Shrouded - 4 Wall | Gold | Latch Lock | 30 Áin | 0.76 Ám | Male Pin | 36 | Tin-Lead | Solder | 0.464 in | 11.79 mm | Through Hole | UL94 V-0 | Mounting Flange |
 TE Connectivity Raychem Cable Protection | Black | 5 mm | 0.197 " | 0.181 in | 4.6 mm | 130 °C | -55 °C | 7.5 A | Header | 5 mm | 0.197 in | 600 V | All | 150 Áin | 3.81 Ám | Brass | Automotive General Purpose Industrial | Circular | Board to Board Cable | Nylon Polyamide (PA) | Shrouded - 4 Wall | Latch Lock | 150 Áin | 3.81 Ám | Male Pin | 36 | Tin | Solder | 0.464 in | 11.79 mm | Through Hole | UL94 V-0 | Mounting Flange |
