103323 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

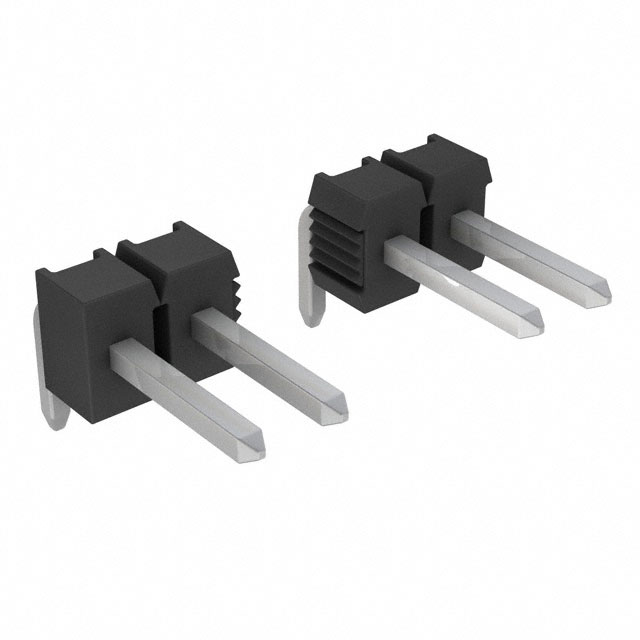

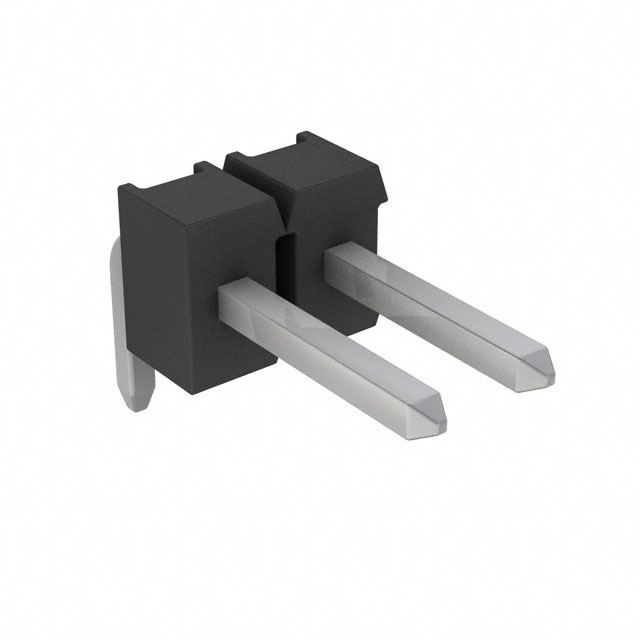

CONN HEADER R/A 26POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions | Connector Type | Contact Shape | Insulation Color | Contact Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Number of Rows | Material Flammability Rating | Contact Finish - Post | Termination | Insulation Material | Pitch - Mating | Pitch - Mating | Style | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shrouding | Number of Positions Loaded | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Mating | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 26 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | 33 | ||
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 6 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | ||
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 10 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 38 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 5 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 19 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | ||
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | 34 | |
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 2 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin-Lead | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm | Tin-Lead | |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 8.08 mm | 0.318 in | 36 | Header Breakaway | Square | Black | Male Pin | Right Angle Through Hole | 100 çin | 2.54 çm | Copper Alloy | 1 | UL94 V-0 | Tin | Solder | Thermoplastic | 0.1 " | 2.54 mm | Board to Board Cable | 105 ░C | -65 ░C | Push-Pull | Unshrouded | All | 3 A | 3.5 mm | 0.138 " | 0.11 in | 2.79 mm |
