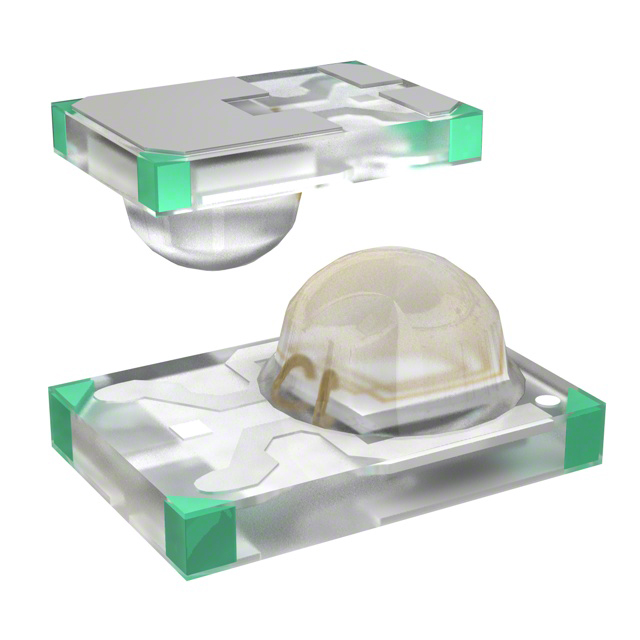

ELSH-F71 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

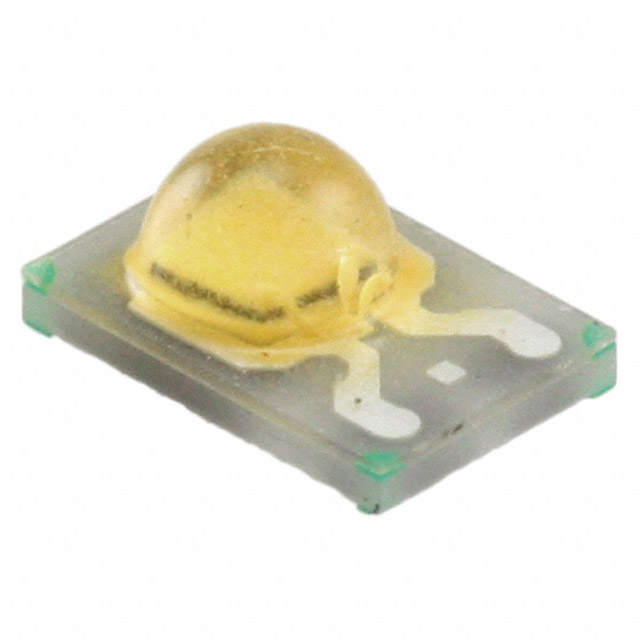

LED SHUEN WARM WHITE 3000K 2SMD

Part	Thermal Resistance of Package	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max)	Color	Lumens/Watt @ Current - Test	Mounting Type	Flux @ 85°C, Current - Test	CCT (K) [Max]	CCT (K)	CCT (K) [Min]	Current - Test	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Supplier Device Package	Wavelength [Min]	Wavelength [Max]	Wavelength
Everlight Electronics Co Ltd ELSH-F71M1-0CPHS-C3000	10 °C/W	400 mA	3.4 V	120 °	70 lm	80 lm	80	0.085 in	2.15 mm	Warm White	59 lm/W	Surface Mount	61 lm	3220 K	3000 K	2870 K	350 mA	1812 (4532 Metric)	0.12 in	0.177 in	3.05 mm	4.5 mm
Everlight Electronics Co Ltd ELSH-F71M1-0CPHS-C3500	10 °C/W	400 mA	3.4 V	120 °	70 lm	80 lm	80	0.085 in	2.15 mm	Warm White	59 lm/W	Surface Mount	61 lm	3710 K	3500 K	3220 K	350 mA	1812 (4532 Metric)	0.12 in	0.177 in	3.05 mm	4.5 mm
Everlight Electronics Co Ltd ELSH-F71G1-0LPNM-CG1G2	10 °C/W	600 mA	3.25 V	120 °				0.085 in	2.15 mm	Green	66 lm/W	Surface Mount					350 mA	1218 (3246 Metric)	0.177 "	0.12 inches	4.5 mm	3.05 mm	25 °C	70 lm	75 lm	80 lm	SMD	520 nm	530 nm	525 nm
Everlight Electronics Co Ltd ELSH-F71M1-0LPGS-C3000	10 °C/W	400 mA	3.4 V	120 °	70 lm	80 lm	75	0.085 in	2.15 mm	Warm White	59 lm/W	Surface Mount	61 lm	3220 K	3000 K	2870 K	350 mA	1812 (4532 Metric)	0.12 in	0.177 in	3.05 mm	4.5 mm
Everlight Electronics Co Ltd ELSH-F71G1-0LPNM-CG2G3	10 °C/W	600 mA	3.25 V	120 °				0.085 in	2.15 mm	Green	66 lm/W	Surface Mount					350 mA	1218 (3246 Metric)	0.177 "	0.12 inches	4.5 mm	3.05 mm	25 °C	70 lm	75 lm	80 lm	SMD	525 nm	535 nm	530 nm
Everlight Electronics Co Ltd ELSH-F71M1-0CPGS-C2700	10 °C/W	400 mA	3.4 V	120 °	70 lm	80 lm	75	0.085 in	2.15 mm	Warm White	59 lm/W	Surface Mount	61 lm		2700 K		350 mA	1812 (4532 Metric)	0.12 in	0.177 in	3.05 mm	4.5 mm
