0566-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Tail Type	Socket Depth	Socket Depth	Flange Diameter	Flange Diameter	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0566-1-15-15-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	0.039 in	0.99 mm	Gold	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in
Mill-Max Manufacturing Corp. 0566-1-15-80-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.039 in	0.99 mm	Gold	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in

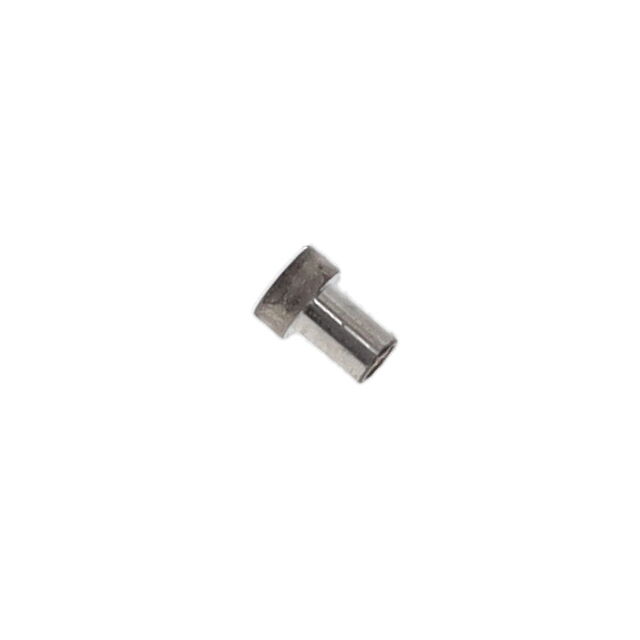

Mill-Max Manufacturing Corp. 0566-1-15-01-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.039 in	0.99 mm	Gold	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in

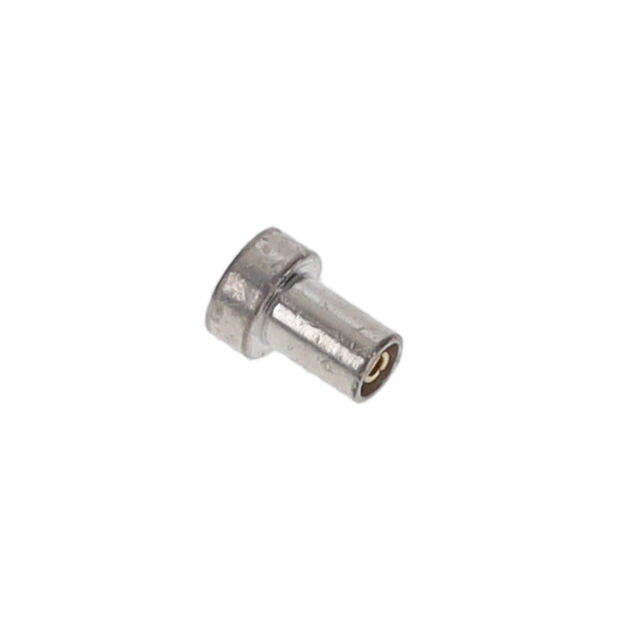

Mill-Max Manufacturing Corp. 0566-1-15-80-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	0.039 in	0.99 mm	Gold	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in
Mill-Max Manufacturing Corp. 0566-1-15-80-21-84-10-0	-55 C	125 °C	2.54 µm	100 µin	0.039 in	0.99 mm	Tin	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in
Mill-Max Manufacturing Corp. 0566-1-15-15-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.039 in	0.99 mm	Gold	No Tail	0.083 in	2.11 mm	0.058 in	1.47 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Solder	Beryllium Copper	0.031 in	0.79 mm	2.11 mm	0.083 in
