PKB431 Series

Catalog

DC DC CONVERTER 12V 390W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Supplier Device Package	Voltage - Input (Max) [Max]	Approval Agency	Efficiency	Features	Standard Number	Current - Output (Max) [Max]	Voltage - Isolation	Applications	Type	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Control Features	Package / Case

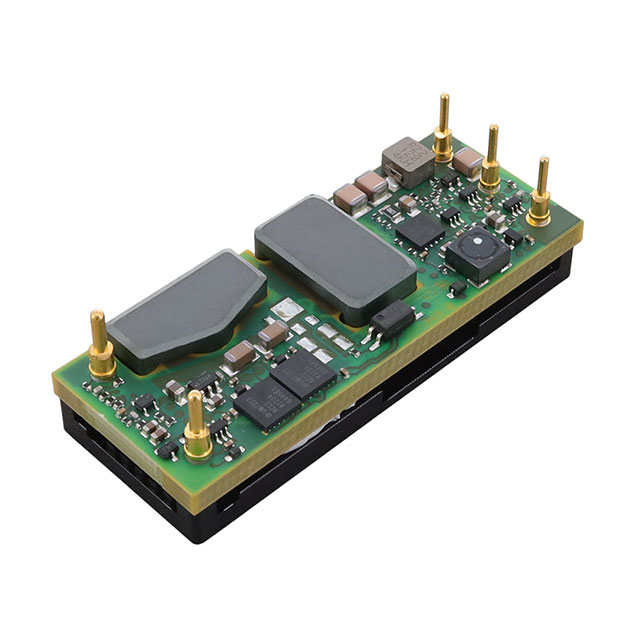

Flex Power Modules PKB4313DAPIHS	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	-40 °C	125 °C	1	Eighth Brick	75 V	CB CSA IEC TUV UL	95.6 %	Adjustable Output Baseplate Remote On/Off	62368-1	32.5 A	1.5 kV	ITE (Commercial)	Intermediate Bus Converter	12 V	Through Hole	36 V	390 W	Active High Enable	Eighth Brick
Flex Power Modules PKB4318PIOBNB	0.32 "	22.7 mm	58.4 mm	0.89 in	2.3 in	8.1 mm	-40 °C	120 °C	1	Eighth Brick	75 V	CB CSA IEC TUV UL	87 %	Adjustable Output Remote On/Off Remote Sense	62368-1	30 A	2250 VDC	ITE (Commercial)	Isolated Module	1.2 V	Through Hole	36 V	36 W	Active Low Enable	Eighth Brick

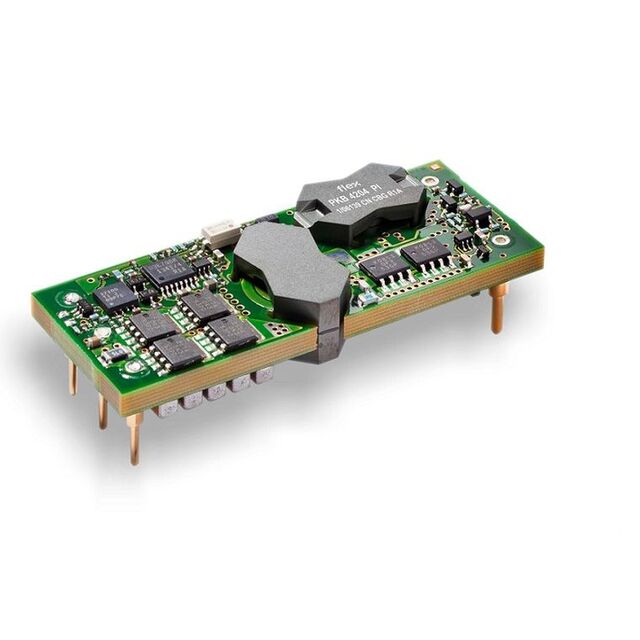

Flex Power Modules PKB4318NPINB	0.32 "	22.7 mm	58.4 mm	0.89 in	2.3 in	8.1 mm	-40 °C	120 °C	1	Eighth Brick	75 V	CB CSA IEC TUV UL	85.3 %	Adjustable Output Remote On/Off Remote Sense	62368-1	30 A	2250 VDC	ITE (Commercial)	Isolated Module	1 V	Through Hole	36 V	30 Watts	Active Low Enable	Eighth Brick
Flex Power Modules PKB4318SIOBNB	0.33 in	22.7 mm	58.4 mm	0.89 in	2.3 in	8.4 mm	-40 °C	120 °C	1	Eighth Brick	75 V	CB CSA IEC TUV UL	87 %	Adjustable Output Remote On/Off Remote Sense	62368-1	30 A	2250 VDC	ITE (Commercial)	Isolated Module	1.2 V	Surface Mount	36 V	36 W	Active Low Enable	Eighth Brick
Flex Power Modules PKB4313DPI	0.38 in	22.7 mm	58.4 mm	0.89 in	2.3 in	9.6 mm	-40 °C	125 °C	1	Eighth Brick	75 V	CB CSA IEC TUV UL	96.2 %	Adjustable Output Remote On/Off	62368-1	25 A	2250 VDC	ITE (Commercial)	Isolated Module	12 V	Through Hole	36 V	300 W	Active Low Enable	Eighth Brick
