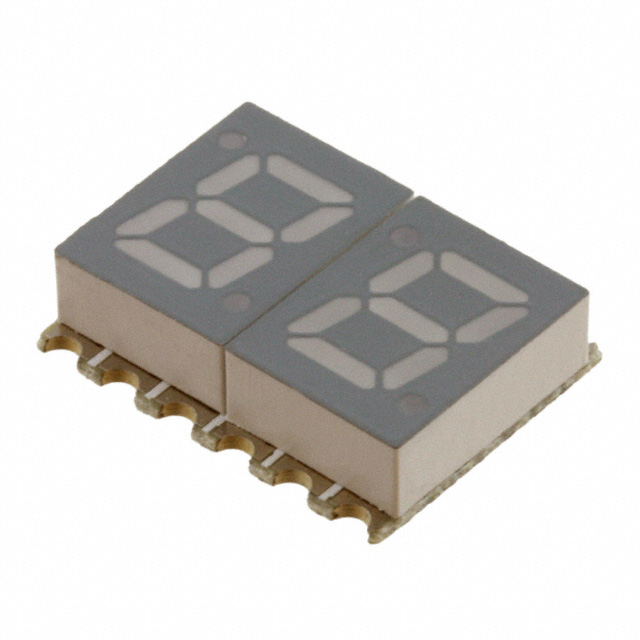

HDSM-291 Series

Catalog

DISPLAY 7SEG 0.28" DBL RED 10SMD

Part	Current - Test	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Display Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Common Pin	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Number of Characters	Color	Wavelength - Peak	Wavelength - Peak [custom]
Broadcom Limited HDSM-291C	20 mA	65 mW	7 mm	0.28 in	7-Segment	10-SMD No Lead	0.394 in	15.1 mm	0.148 in	10 mm	3.75 mm	0.594 "	Common Anode	7.5 mcd	2 V	2	Red	632 nm
Broadcom Limited HDSM-291B	20 mA	100 mW	7 mm	0.28 in	7-Segment	10-SMD No Lead	0.394 in	15.1 mm	0.148 in	10 mm	3.75 mm	0.594 "	Common Anode	6 mcd	3.3 V	2	Blue	462 nm
Broadcom Limited HDSM-291H	20 mA	65 mW	7 mm	0.28 in	7-Segment	10-SMD No Lead	0.394 in	15.1 mm	0.148 in	10 mm	3.75 mm	0.594 "	Common Anode	6 mcd	2.1 V	2	Green		572 nm
