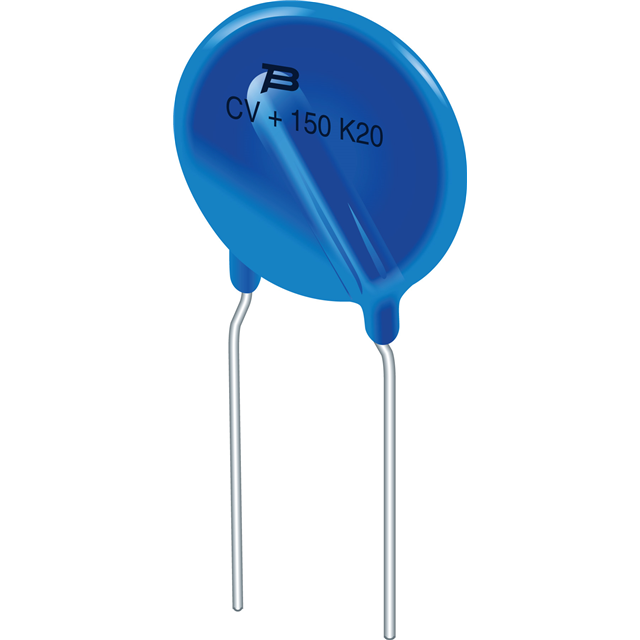

CVQ150 Series

Catalog

VARISTOR, MOV, 395V, DISC 7MM ROHS COMPLIANT: YES

Part	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Package / Case	Energy	Maximum AC Volts [Max]	Number of Circuits	Mounting Type	Current - Surge	Capacitance @ Frequency	Varistor Voltage (Max) [Max]	Package / Case	Package / Case [diameter]
Bourns Inc. CVQ150K7BL1	216 V	85 C	-40 ¯C	200 V	240 V	Disc 7mm	23 J	150 V	1	Through Hole	1750 A	1 kHz 280 pF	264 V
Bourns Inc. CVQ150K10BL1	216 V	85 C	-40 ¯C	200 V	240 V	Disc 10mm	46 J	150 V	1	Through Hole	3.5 kA	1 kHz 510 pF	264 V
Bourns Inc. CVQ150K14BL1	216 V	85 C	-40 ¯C	200 V	240 V	Disc 14mm	92 J	150 V	1	Through Hole	6000 A	900 pF	264 V
Bourns Inc. CVQ150K20BL1	216 V	85 C	-40 ¯C	200 V	240 V	Disc	185 J	150 V	1	Through Hole	12 kA	1600 pF	264 V	20 mm
Bourns Inc. CVQ150K23BL1	216 V	85 C	-40 ¯C	200 V	240 V	Disc	207 J	150 V	1	Through Hole	15 kA		264 V		23 mm
