SL-156 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HEADERS & WIRE HOUSINGS 20P SL156 HSG W/RMP&TABS OVSZ
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Fastening Type | Features | Number of Rows | Insulation Material | Contact Type | Mounting Type | Number of Positions | Connector Type | Color | Pitch | Pitch | Type | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Locking Ramp | Polarizing Key | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 20 | Receptacle | Natural | 3.96 mm | 0.156 in | ||||||||

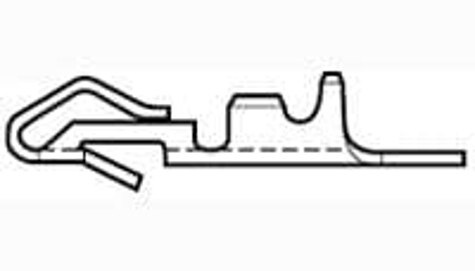

 TE Connectivity AMP Connectors | Crimp | Power | 2.03 Ám | 80 Áin | Socket | Tin | 17.5 AWG | 24 AWG | ||||||||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 2 | Receptacle | Natural | 3.96 mm | 0.156 in | Contacts Not Included | |||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Board Latch | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 8 | Receptacle | Natural | 3.96 mm | 0.156 in | |||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Locking Ramp | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 6 | Receptacle | Natural | 3.96 mm | 0.156 in | |||||||||

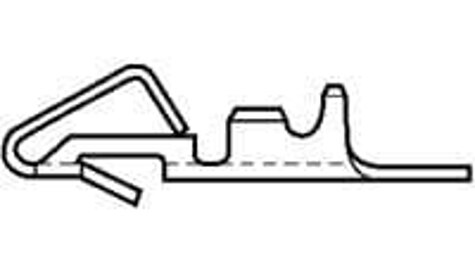

 TE Connectivity AMP Connectors | Crimp | Power | 2.03 Ám | 80 Áin | Socket | Tin | 17.5 AWG | 24 AWG | ||||||||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Locking Ramp | Polarizing Key | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 7 | Receptacle | Natural | 3.96 mm | 0.156 in | ||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Positions Molded Closed | 1 | Glass Filled Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 14 | Receptacle | Natural | 3.96 mm | 0.156 in | |||||||||

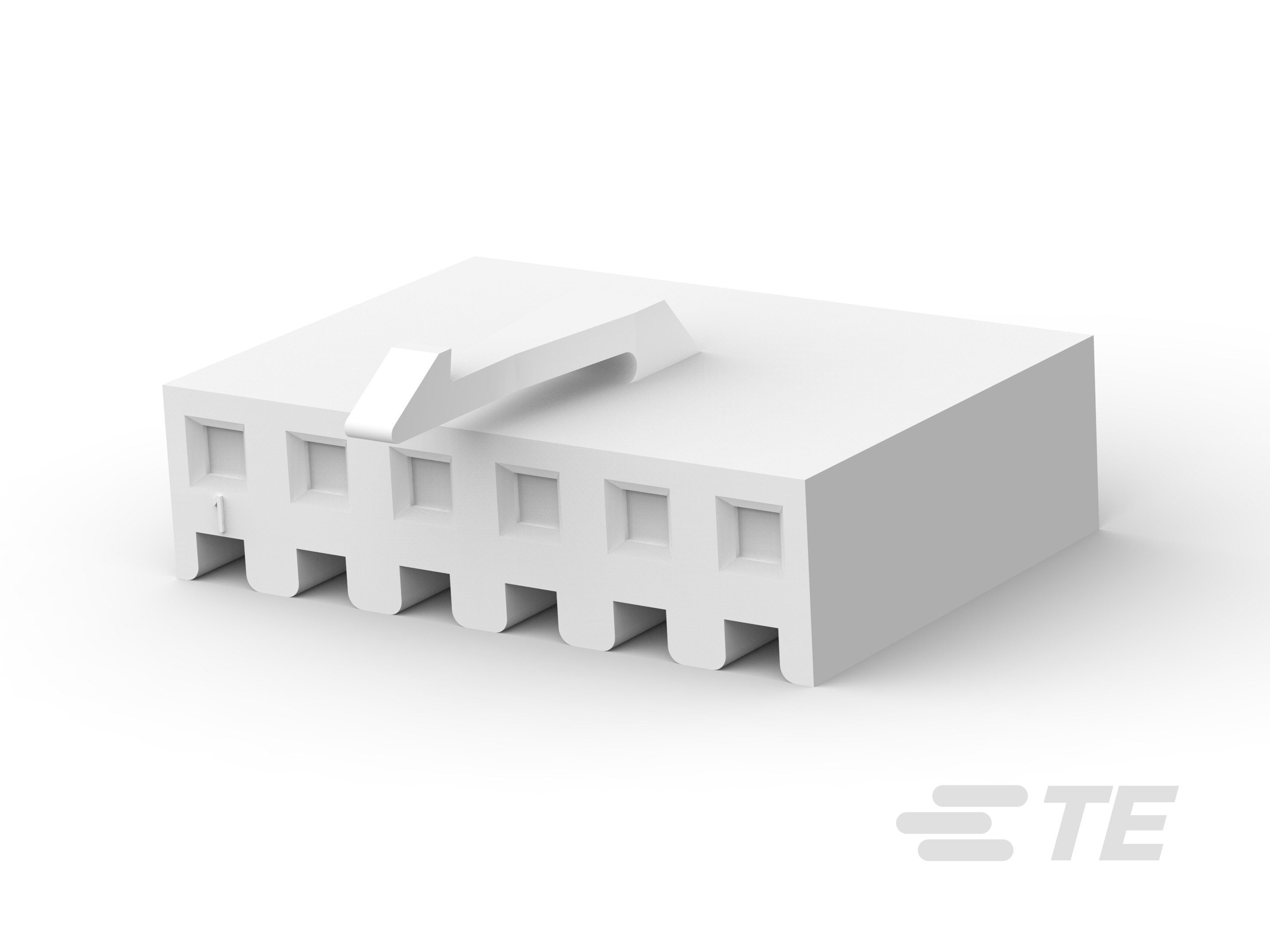

 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Board Latch | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 6 | Receptacle | Natural | 3.96 mm | 0.156 in | Contacts Not Included | ||||||||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Crimp | Locking Ramp | 1 | Nylon Polyamide (PA) | Female Socket | Free Hanging (In-Line) | 7 | Receptacle | Natural | 3.96 mm | 0.156 in |
