MGS Series

Catalog

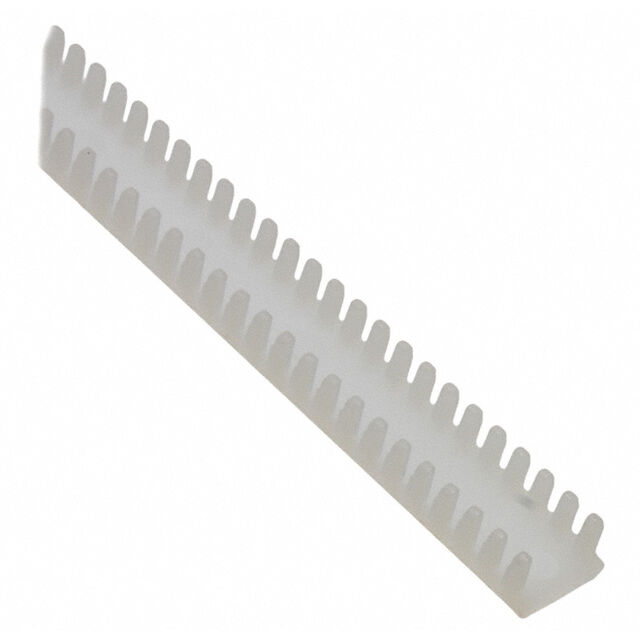

GROMMET EDGE SLOT NYLON NATURAL

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Material Flammability Rating	Material	Color	Bushing, Grommet Type	For Use With/Related Products	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Thickness [Max]

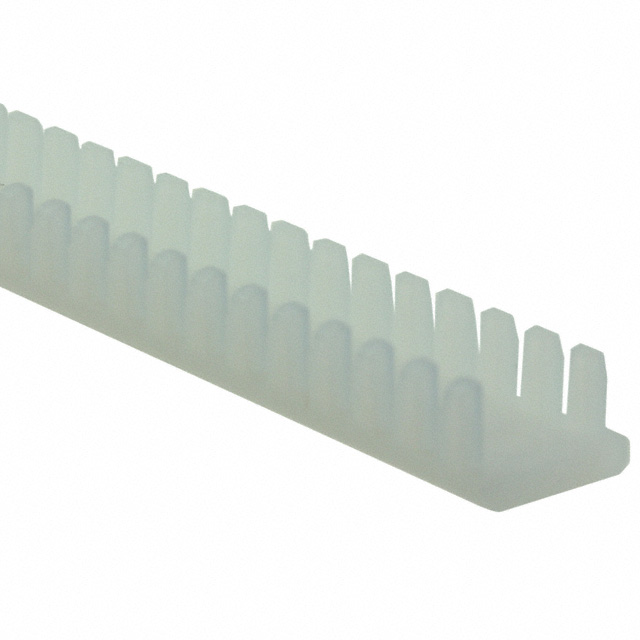

Essentra Components MGS-5-01	6.48 mm	0.255 in	0.192 in	4.88 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '

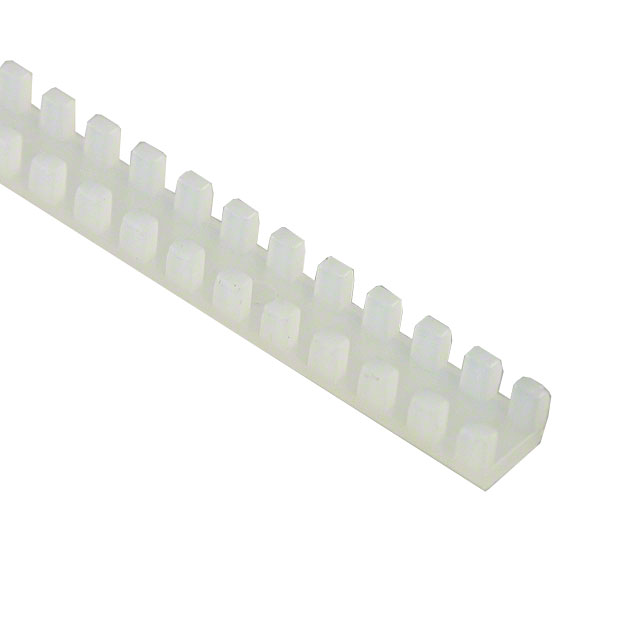

Essentra Components MGS-3-01	3.25 mm	0.128 "	0.085 "	2.16 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '
Essentra Components MGS-6-01	8.08 mm	0.318 in	0.255 in	6.48 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '

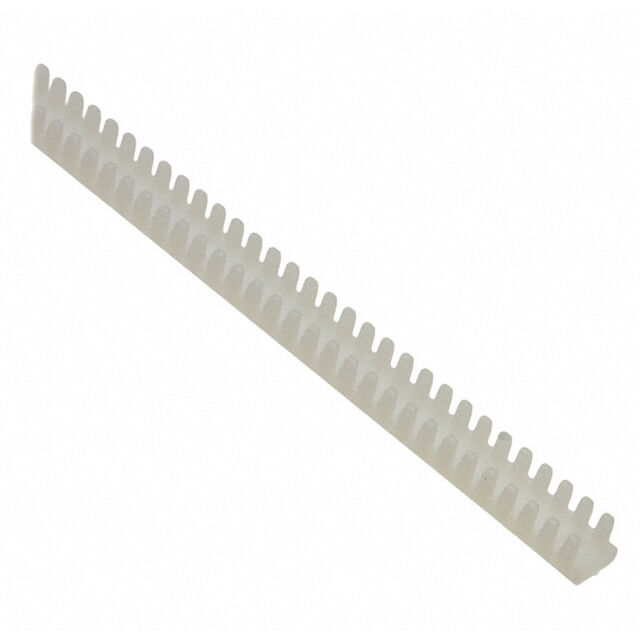

Essentra Components MGS-4-01	4.88 mm	0.192 in	0.128 in	3.25 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '

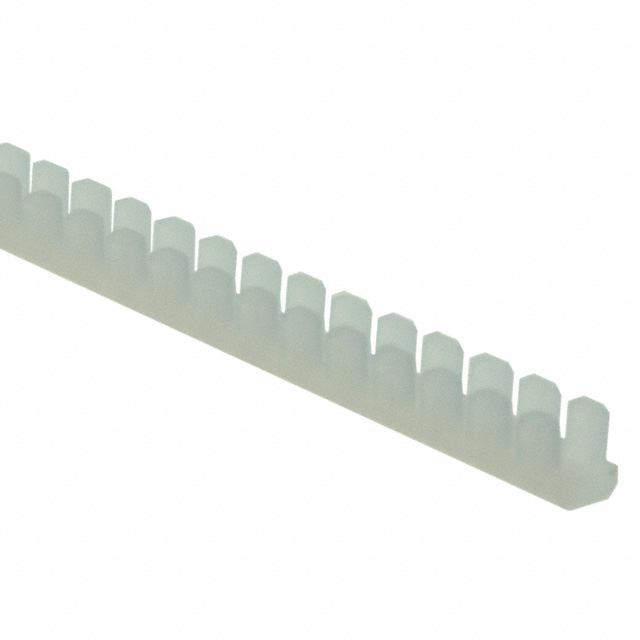

Essentra Components MGS-1-01		0.052 in	0.015 "	0.38 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '	1.32 mm
Essentra Components MGS-2-01	2.16 mm	0.085 in	0.052 in	1.32 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	Grommet - Edging Slotted	Edges Irregular Holes	0.32 m	1.062 '
