8412N Series

Catalog

FAN: DC; AXIAL; 12VDC; 80X80X25.4MM; 55M3/H; 2600RPM; 9292506148

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Approval Agency	Fan Type	Termination	Noise	Air Flow	Air Flow	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Weight [custom]	Weight [custom]	Bearing Type	Width [y]	Lifetime @ Temp.	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Ingress Protection	Static Pressure	Static Pressure	Operating Temperature	Operating Temperature
ebm-papst Inc. 8412NGMI	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	14 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CSA UL VDE	Tubeaxial	2 Wire Leads	13 dB(A)	21 CFM	0.588 m³/min	12 VDC	80 mm	80 mm	1.4 W	0.31 lb	140.61 g	Sintec	25.4 mm
ebm-papst Inc. 8412NLE	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	2 Wire Leads	17 dB	19.4 CFM	0.543 m³/min	12 VDC	80 mm	80 mm	300 mW			Ball	25.4 mm	80000 Hrs	1500 RPM	-20 °C	-4 °F	185 °F	85 °C	0.209 lb	94.8 g
ebm-papst Inc. 8412N/2	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CSA UL VDE	Tubeaxial	3 Wire Leads	32 dB	40.6 CFM	1.14 m³/min	12 VDC	80 mm	80 mm	2 W			Ball	25.4 mm	70000 Hrs	3100 RPM							-20 ░C	70 °C	Speed Sensor (Tach)

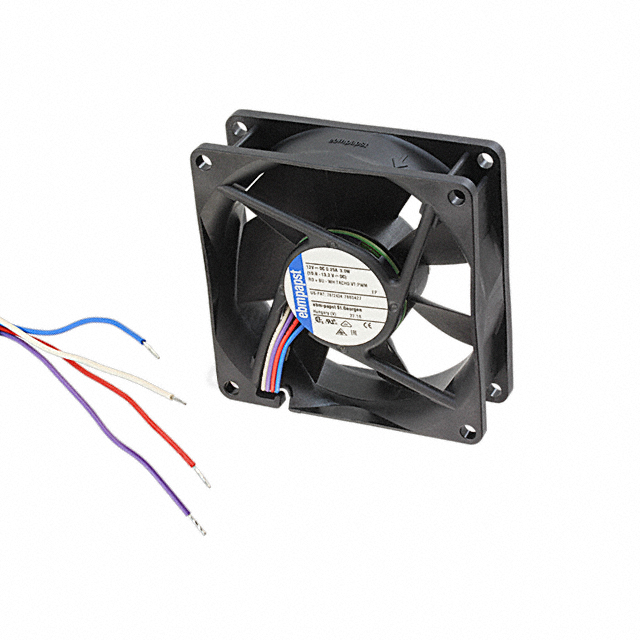

ebm-papst Inc. 8412N/2GHP	Plastic	10.8 VDC	13.2 VDC	Plastic		Tubeaxial	4 Wire Leads	35 dB	37.7 CFM	1.06 mł/min	12 VDC	80 mm	80 mm	3 W			Sintec	25 mm		3600 RPM							0 °C	70 °C	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.25 A	IP20	40 Pa	0.16 in H2O

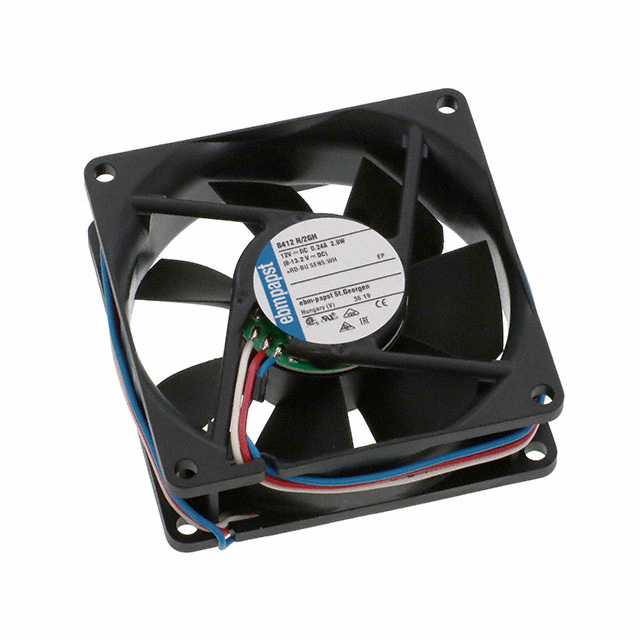

ebm-papst Inc. 8412N/2GH	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	13.2 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)		Tubeaxial	3 Wire Leads	26 dB	47 CFM	1.32 m³/min	12 VDC	80 mm	80 mm	2.2 W			Sintec	25.4 mm											Speed Sensor (Tach)					70 °C	70 °C
ebm-papst Inc. 8412NH-217	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	2 Wire Leads	32 dB	46.5 CFM	1.3 m³/min	12 VDC	80 mm	80 mm				Ball	25.4 mm	70000 Hrs	3600 RPM							-20 ░C	70 °C
ebm-papst Inc. 8412NGME	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	2 Wire Leads	26 dB	34.1 CFM	0.955 m³/min	12 VDC	80 mm	80 mm	1.4 W			Sintec	25.4 mm	160000 Hrs	2600 RPM					0.209 lb	94.8 g	-4 °F	167 °F
ebm-papst Inc. 8412NGMLE	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	2 Wire Leads	19 dB(A)	26.5 CFM	0.742 m³/min	12 VDC	80 mm	80 mm	0.9 W			Sintec	25.4 mm	80000 Hrs	2050 RPM					0.209 lb	94.8 g	-20 ░C	80 °C

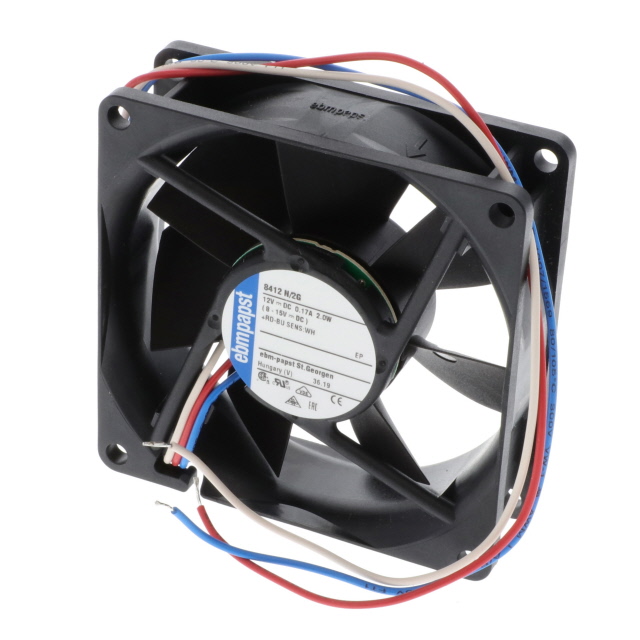

ebm-papst Inc. 8412N/2G	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	3 Wire Leads	32 dB			12 VDC	80 mm	80 mm	2 W			Sintec	25.4 mm	70000 Hrs	3100 RPM					0.21 lb	95.25 g			Locked Rotor Protection Speed Sensor (Tach) Thermal Overload Protector (TOP)
ebm-papst Inc. 8412NGMV	Polyamide (PA) Nylon Fiberglass Reinforced	8 V	14 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	CE CSA UL VDE	Tubeaxial	2 Wire Leads	26 dB	34.1 CFM	0.955 m³/min	12 VDC	80 mm	80 mm	2 W			Sintec	25.4 mm	80000 Hrs	2600 RPM					0.209 lb	94.8 g	-20 ░C	70 °C
