820K Series

Catalog

CIRCULAR CONNECTOR, QUIK-LOQ 820K SERIES, CABLE MOUNT RECEPTACLE, 7 CONTACTS, SOLDER SOCKET

Part	Shell Material	Applications	Insert Material	Ingress Protection	Fastening Type	Shell Finish	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Contact Material	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Shielding	Features	Mounting Type	Connector Type	Color	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening	Cable Opening	Termination	Mounting Feature
NorComp Inc. 820K007-273L301	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome	3.2 mm	0.126 in	0.098 in	2.5 mm	Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Receptacle Female Sockets	Black Silver	7	Gold	2.5 A	260 V	-40 C	200 °C
NorComp Inc. 820K006-173L401	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome		0.165 in			Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Black Silver	6	Gold	2.5 A	280 V	-40 C	200 °C	0.13 in	3.3 mm 4.2 mm
NorComp Inc. 820K009-273L301	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome	3.2 mm	0.126 in	0.098 in	2.5 mm	Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Receptacle Female Sockets	Black Silver	9	Gold	2 A	200 V	-40 C	200 °C
NorComp Inc. 820KR04-213R001	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy						Shielded		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Silver	4	Gold	7 A	280 V	-40 C	200 °C			Solder	Bulkhead - Front Side Nut
NorComp Inc. 820K006-173L501	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome		0.205 in 5.2 mm	0.169 " 4.3 mm		Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Black Silver	6	Gold	2.5 A	280 V	-40 C	200 °C
NorComp Inc. 820K005-213R001	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy						Shielded		Panel Mount Through Hole	Receptacle Female Sockets	Silver	5	Gold	6.5 A	280 V	-40 C	200 °C			Solder	Bulkhead - Front Side Nut
NorComp Inc. 820KR02-213R001	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy						Shielded		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Silver	2	Gold	10 A	430 V	-40 C	200 °C			Solder	Bulkhead - Front Side Nut
NorComp Inc. 820K002-173L501	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome		0.205 in 5.2 mm	0.169 " 4.3 mm		Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Black Silver	2	Gold	10 A	430 V	-40 C	200 °C

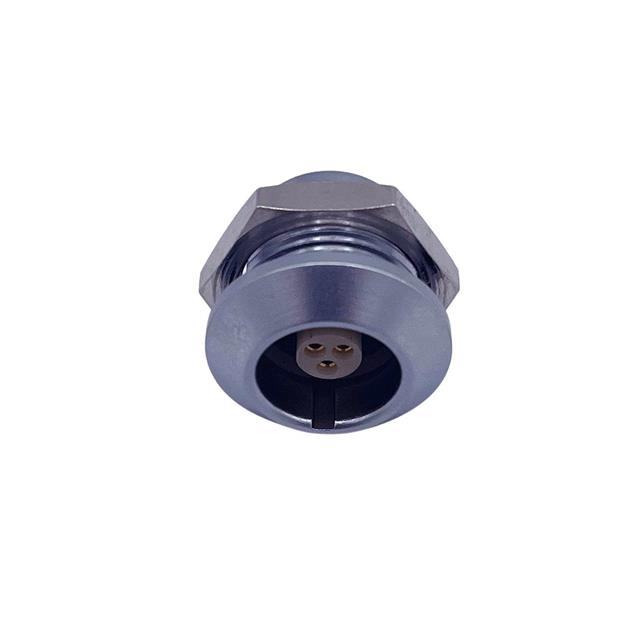

NorComp Inc. 820K003-203R001	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy						Shielded		Panel Mount	Receptacle Female Sockets	Silver		Gold	8 A	400 V	-40 C	200 °C				Bulkhead - Rear Side Nut
NorComp Inc. 820K006-273L501	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Push-Pull	Nickel	Metal	7 µin	0.178 µm	Keyed	Copper Alloy	Brass Chrome		0.205 in 5.2 mm	0.169 " 4.3 mm		Shielded	Backshell Strain Relief	Free Hanging (In-Line)	Receptacle Female Sockets	Black Silver	6	Gold	2.5 A	280 V	-40 C	200 °C
