GBC17D Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

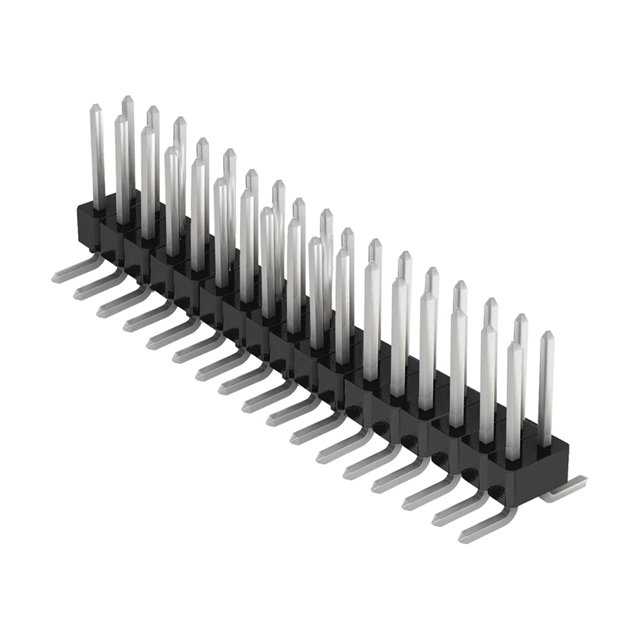

CONN HEADER SMD 34POS 2.54MM
| Part | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Shrouding | Mounting Type | Contact Shape | Material Flammability Rating | Number of Rows | Connector Type | Contact Material | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish - Post | Fastening Type | Number of Positions Loaded | Insulation Color | Contact Type | Contact Finish - Mating | Contact Length - Mating [x] | Contact Length - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Board to Board Cable | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount | Square | UL94 V-0 | 2 | Breakaway Header | Phosphor Bronze | 0.1 in | 2.54 mm | -65 ░C | 150 °C | Solder | Tin | Push-Pull | All | Black | Male Pin | Gold | 0.23 in | 5.84 mm | 2.54 mm | 0.1 in | 3 A | 34 | 2.54 µm | 100 µin | 0.1 in | 2.54 mm |
