109BJ24 Series

Catalog

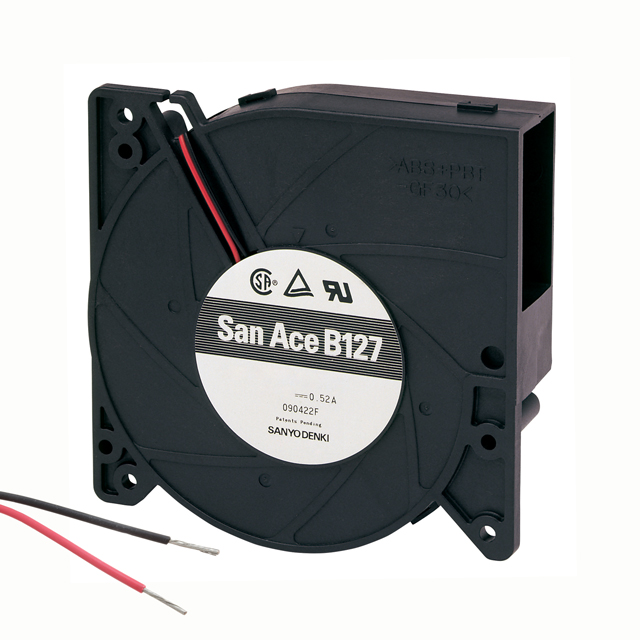

FAN BLOWER 126X32MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Features	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Power (Watts)	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Weight	Weight	Noise	Termination	Voltage - Rated
Sanyo Denki America Inc. 109BJ24MC2	Plastic	Plastic	150 mA	40000 Hrs	Ball	60 °C	60 °C	-4 °F	-20 ░C	32 mm	Locked Rotor Protection Speed Sensor (Tach)	110 Pa	0.441 in H2O	0.602 m³/min	21.5 CFM	1900 RPM	3.6 W	Blower	CSA TUV UL	126 mm	5 in	Square/Rounded	0.639 lb	289.85 g	40 dB(A)	3 Wire Leads	24 VDC
Sanyo Denki America Inc. 109BJ24HD2	Plastic	Plastic	0.26 A	40000 Hrs	Ball	60 °C	60 °C	-4 °F	-20 ░C	32 mm	Locked Rotor Sensor	205.8 Pa	0.826 in H2O	0.77 m³/min	27.5 CFM	2400 RPM	6.24 W	Blower	CSA TUV UL	126 mm	5 in	Square/Rounded	0.639 lb	289.85 g	46 dB(A)	3 Wire Leads	24 VDC
Sanyo Denki America Inc. 109BJ24MA2	Plastic	Plastic	150 mA	40000 Hrs	Ball	60 °C	60 °C	-4 °F	-20 ░C	32 mm		110 Pa	0.441 in H2O	0.602 m³/min	21.5 CFM	1900 RPM	3.6 W	Blower	CSA TUV UL	126 mm	5 in	Square/Rounded	0.639 lb	289.85 g	40 dB(A)	2 Wire Leads	24 VDC
Sanyo Denki America Inc. 109BJ24HC2	Plastic	Plastic	0.26 A	40000 Hrs	Ball	60 °C	60 °C	-4 °F	-20 ░C	32 mm	Locked Rotor Protection Speed Sensor (Tach)	205.8 Pa	0.826 in H2O	0.77 m³/min	27.5 CFM	2400 RPM	6.24 W	Blower	CSA TUV UL	126 mm	5 in	Square/Rounded	0.639 lb	289.85 g	46 dB(A)	3 Wire Leads	24 VDC
