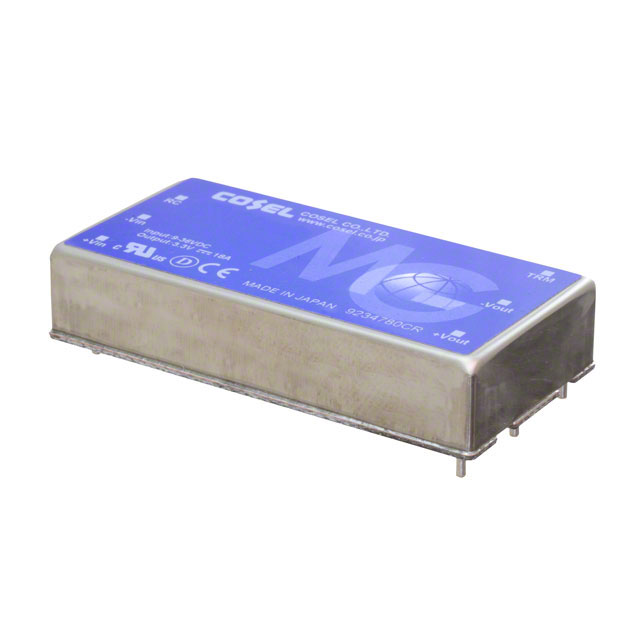

MGFS Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 80W 18-76VIN 5V 16A PCB MNT
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) [Max] | Applications | Efficiency | Power (Watts) | Approval Agency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Number of Outputs | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 76 V | 5 V | 18 V | Through Hole | Isolated Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 16 A | ITE (Commercial) | 93 % | 80 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | |
 Cosel USA, Inc. | 76 V | 3.3 V | 18 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 10 A | ITE (Commercial) | 89 % | 33 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |
Cosel USA, Inc. | 36 V | 15 V | 9 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 2.7 A | ITE (Commercial) | 92 % | 41 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |

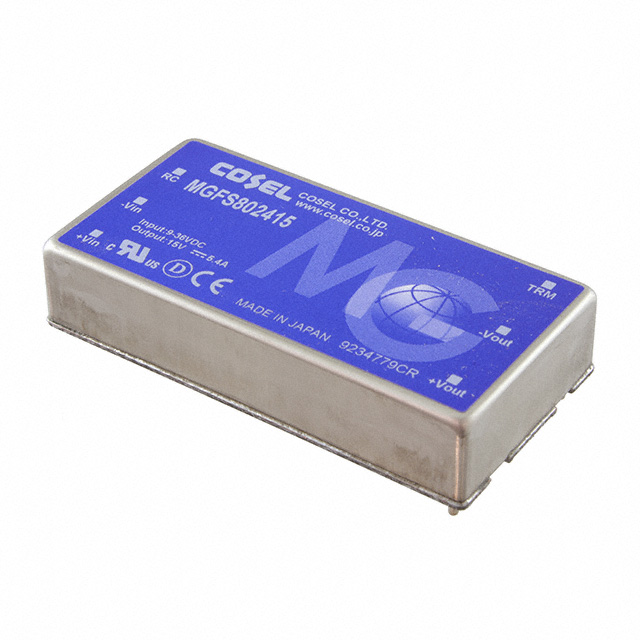

 Cosel USA, Inc. | 36 V | 15 V | 9 V | Through Hole | Isolated Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 5.4 A | ITE (Commercial) | 94 % | 81 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | |
 Cosel USA, Inc. | 36 V | 12 V | 9 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 3.4 A | ITE (Commercial) | 92 % | 41 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |
 Cosel USA, Inc. | 36 V | 3.3 V | 9 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 10 A | ITE (Commercial) | 89 % | 33 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |
Cosel USA, Inc. | 76 V | 15 V | 18 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 2.7 A | ITE (Commercial) | 92 % | 41 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |
 Cosel USA, Inc. | 76 V | 15 V | 18 V | Through Hole | Isolated Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 5.4 A | ITE (Commercial) | 94 % | 81 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | |
 Cosel USA, Inc. | 13 V | 5 V | 4.5 V | Through Hole | Isolated Module | 0.39 " | 25.4 mm | 25.4 mm | 1 in | 1 " | 9.9 mm | 6 A | ITE (Commercial) | 87 % | 30 Watts | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 | Active Low Enable |
Cosel USA, Inc. | 36 V | 12 V | 9 V | Through Hole | Isolated Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 6.7 A | ITE (Commercial) | 94 % | 80 W | CE cURus DEMKO | 6-DIP Module | -40 °C | 85 °C | 1.5 kV | 1 |
