DML-12 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER SMD 12POS 3MM

Part	Contact Finish - Post	Material Flammability Rating	Insulation Material	Voltage Rating	Contact Material	Mounting Type	Number of Rows [custom]	Contact Shape	Contact Type	Insulation Color	Shrouding	Insulation Height [z]	Insulation Height [z]	Style	Pitch - Mating	Pitch - Mating	Features	Current Rating (Amps)	Termination	Number of Positions Loaded	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Height	Contact Length - Post	Contact Length - Post	Current Rating (Amps)

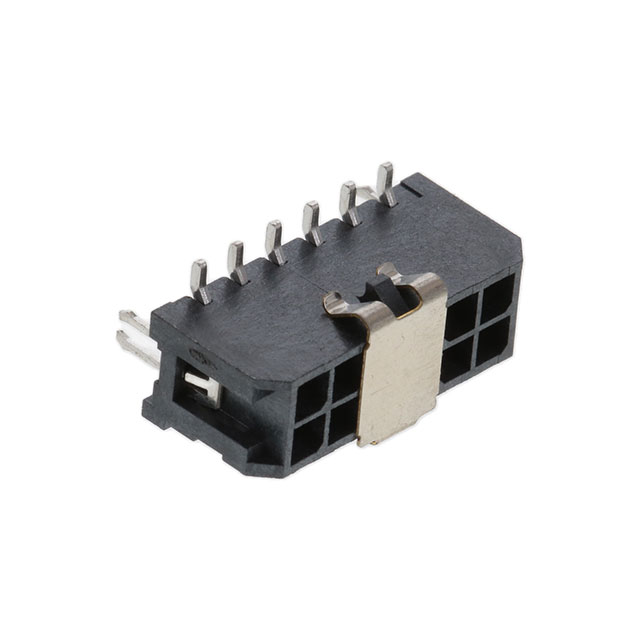

Adam Tech DML-12-A-V-T-SMT-BL-PP-T/R	Tin	UL94 V-0	Thermoplastic	250 VAC	Brass	Surface Mount	2	Square	Male Pin	Black	Shrouded - 4 Wall	0.39 in	9.91 mm	Board to Cable/Wire	3 mm	0.118 in	Board Lock	5 A	Solder	All	Header	12	85 °C	-25 °C	0.118 in	3 mm	Locking Ramp

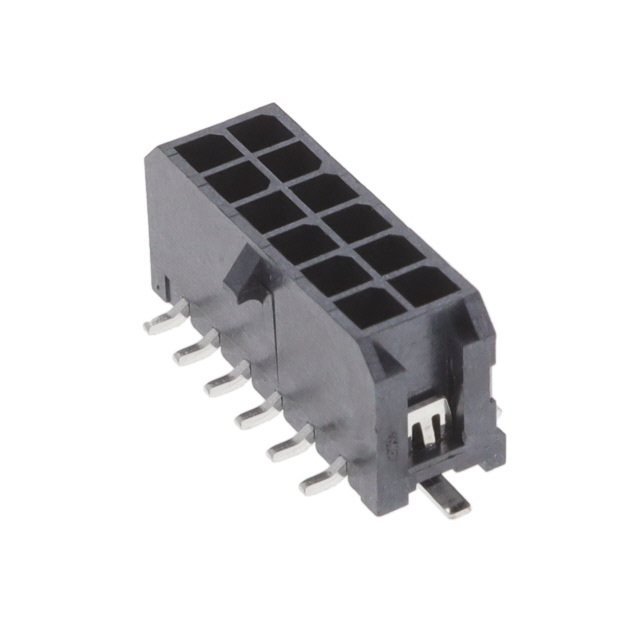

Adam Tech DML-12-A-V-T-TSMT-T/R	Tin	UL94 V-0	Thermoplastic	250 VAC	Brass	Surface Mount	2	Square	Male Pin	Black	Shrouded - 4 Wall	0.39 in	9.91 mm	Board to Cable/Wire	3 mm	0.118 in	Solder Retention	5 A	Solder	All	Header	12	105 ░C	-25 °C	0.118 in	3 mm	Locking Ramp

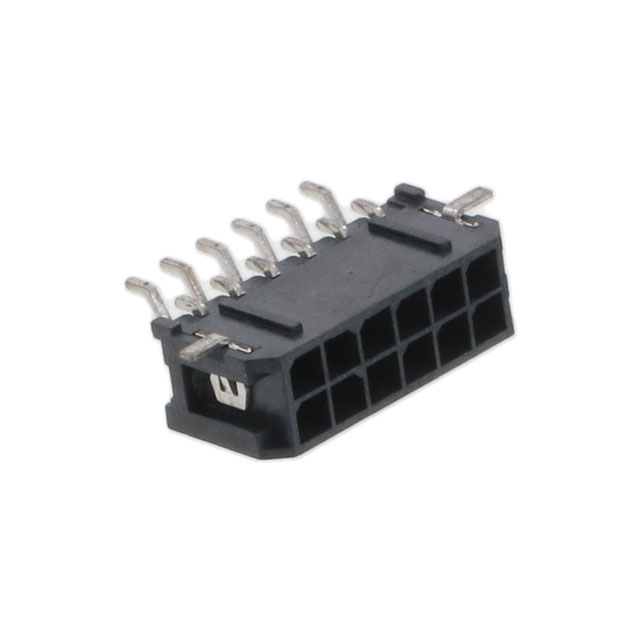

Adam Tech DML-12-A-H-T-A-TSMT-T/R	Tin	UL94 V-0	Thermoplastic	250 VAC	Brass	Right Angle Surface Mount	2	Square	Male Pin	Natural	Shrouded - 4 Wall	0.289 "		Board to Cable/Wire	3 mm	0.118 in	Solder Retention	5 A	Solder	All	Header	12	85 °C	-25 °C	0.118 in	3 mm	Locking Ramp	7.34 mm

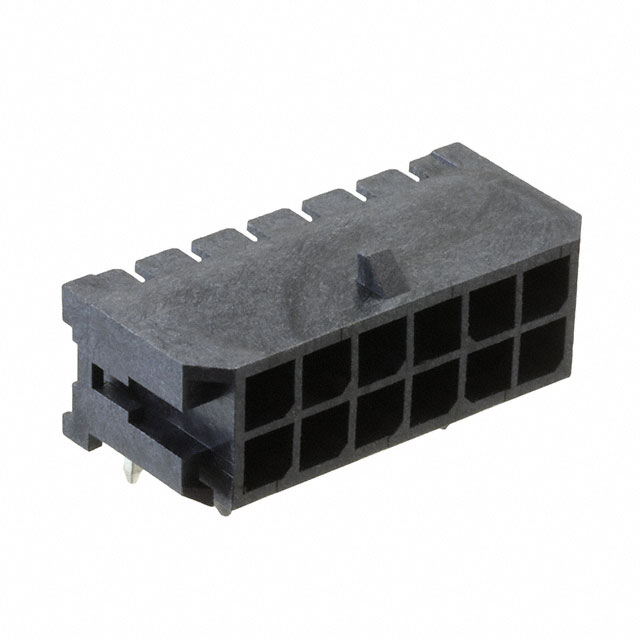

Adam Tech DML-12-A-H-T-A	Tin	UL94 V-0	Thermoplastic	250 V	Brass	Right Angle Through Hole	2	Square	Male Pin	Black	Shrouded - 4 Wall	0.27 in	6.86 mm	Board to Cable/Wire	3 mm	0.118 in	Board Lock		Solder	All	Header	12			0.118 in	3 mm	Locking Ramp		0.125 in	3.18 mm	Varies by Wire Gauge

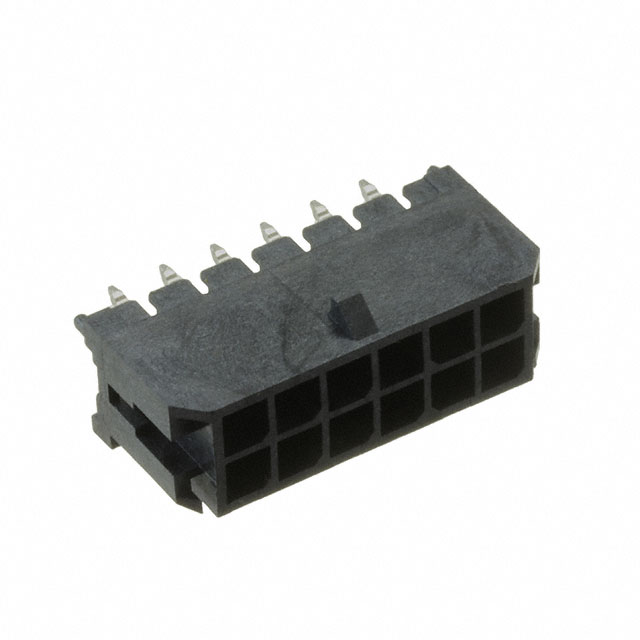

Adam Tech DML-12-A-V-T-A	Tin	UL94 V-0	Thermoplastic	250 V	Brass	Through Hole	2	Square	Male Pin	Black	Shrouded - 4 Wall	0.39 in	9.91 mm	Board to Cable/Wire	3 mm	0.118 in	Board Guide		Kinked Pin Solder	All	Header	12	125 °C	-45 °C	0.118 in	3 mm	Locking Ramp		0.125 in	3.18 mm	Varies by Wire Gauge
