45483 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

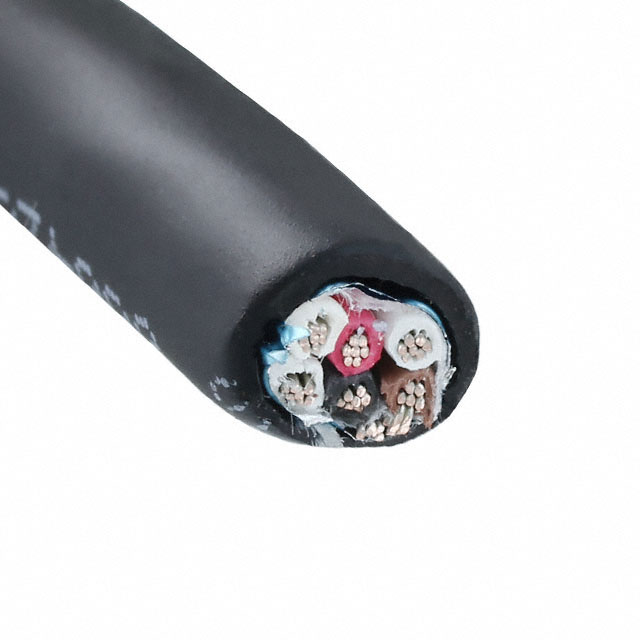

MULTI-PAIR 6COND 22AWG BLK FEET
| Part | Spool Size [x] | Spool Size [x] | Shield Material | Shield Coverage | Ratings | Features | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Insulation | Voltage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | Aluminum | 100 % | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | Foil | 125 °C | -50 °C | 22 AWG | 30 AWG | 7 | TPE | Thermoplastic Elastomer | 300 VDC | Black | 0.317 in | 8.05 mm | Enter Number of Feet in Order Quantity | Copper Tinned | Thermoplastic Elastomer (TPE) | 6 | 1.143 mm | 0.045 in | Multi-Pair | ||
 ALPHA WIRE | Aluminum | 100 % | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | Foil | 125 °C | -50 °C | 22 AWG | 30 AWG | 7 | TPE | Thermoplastic Elastomer | 300 VDC | Slate | 0.317 in | 8.05 mm | Copper Tinned | Thermoplastic Elastomer (TPE) | 6 | 1.143 mm | 0.045 in | Multi-Pair | 304.8 m | 1000 ft |
