725-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 54POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination	Pitch	Pitch	Number of Rows [custom]	Contact Type	Read Out	Contact Material	Number of Positions	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Color	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Rows

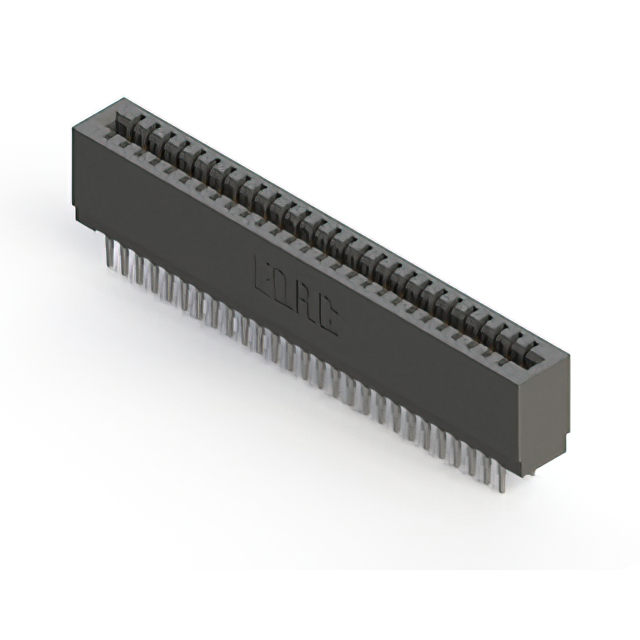

EDAC Inc. 725-054-522-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	27	Press-Fit	0.1 "	2.54 mm	2	Cantilever	Dual	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C
EDAC Inc. 725-054-560-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	27	Press-Fit	0.1 "	2.54 mm	2	Cantilever Make Before Break	Dual	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C
EDAC Inc. 725-054-545-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit Wire Wrap	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1

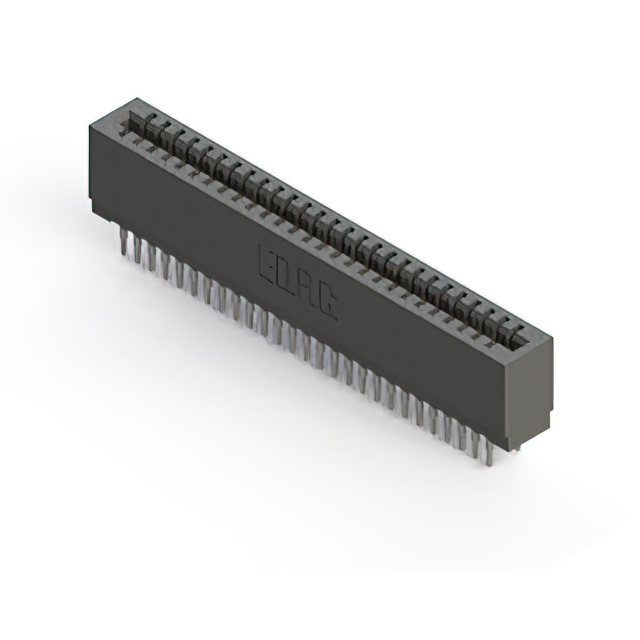

EDAC Inc. 725-054-540-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	27	Press-Fit Wire Wrap	0.1 "	2.54 mm	2	Cantilever	Dual	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C
EDAC Inc. 725-054-522-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1
EDAC Inc. 725-054-541-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit Wire Wrap	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1
EDAC Inc. 725-054-540-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit Wire Wrap	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1
EDAC Inc. 725-054-525-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1

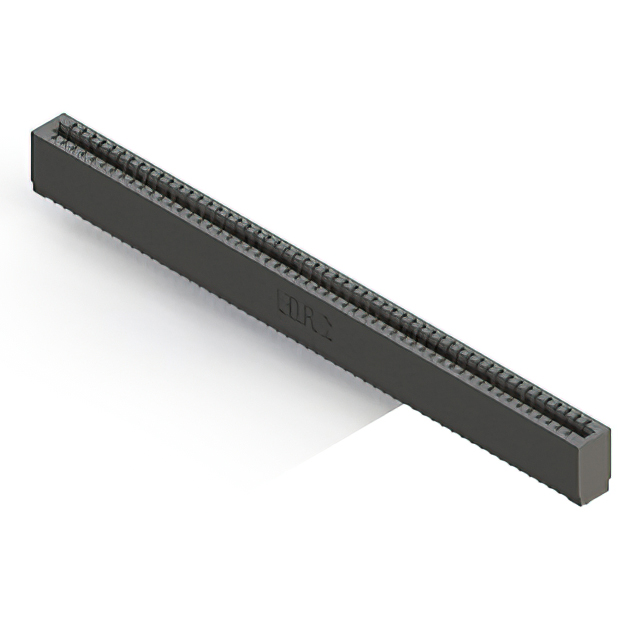

EDAC Inc. 725-054-520-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám	54	Press-Fit	0.1 "	2.54 mm		Cantilever	Single	Copper Alloy	54	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Female	-40 C	105 ░C	1	1
