89039 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

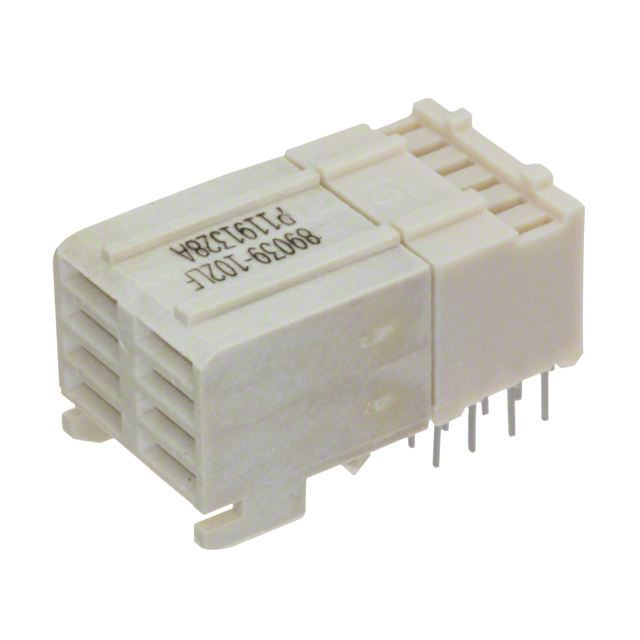

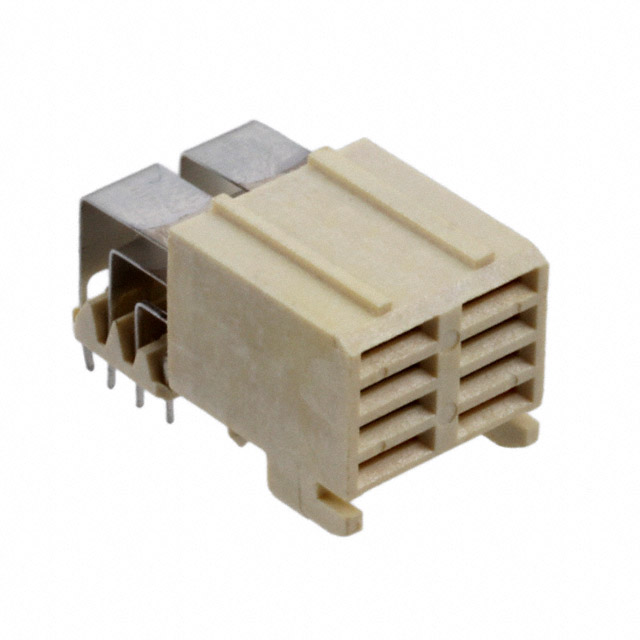

CONN RCPT BLADE PWR 8POS EDGE MT
| Part | Connector Type | Current Rating (Amps) | Color | Contact Layout, Typical | Number of Positions Loaded | Connector Style | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Material Flammability Rating | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | Gold or Gold GXT™ | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 0.76 Ám | 30 Áin | 8 | 1000 VDC |
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | Gold or Gold GXT™ | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 0.76 Ám | 30 Áin | 8 | 1000 VDC |
 Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | Gold or Gold GXT™ | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 0.76 Ám | 30 Áin | 8 | 1000 VDC |
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 8 | 1000 VDC | |||
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | Gold GXT™ | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 0.76 Ám | 30 Áin | 8 | 1000 VDC |
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 8 | 1000 VDC | |||
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 8 | 1000 VDC | |||
Amphenol ICC (FCI) | Receptacle Female Blade Sockets | 3 A | Natural | 8 Power | All | Blade Power | 105 ░C | -55 °C | Board Guide Spacer | Board Edge Right Angle Through Hole | UL94 V-0 | Solder | 8 | 1000 VDC |
