BG225V Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 14.99-18.03MM M25

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Ingress Protection	Includes	Material	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Pflitsch BG225VATRICP	Cable Gland	85 °C	-40 C	11 mm	0.433 in	18.03 mm	0.71 in	0.59 in	14.99 mm	M25x1.5	IP68 IP69	Sealing Ring	Brass Nickel Plated	Silver	25 mm	0.984 in

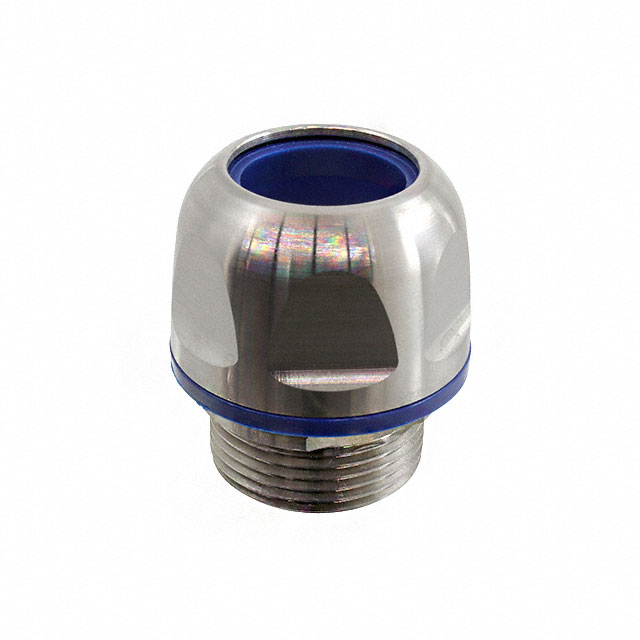

Pflitsch BG225VACP	Cable Gland	85 °C	-40 C	10 mm	0.394 in	18.03 mm	0.71 in	0.59 in	14.99 mm	M25x1.5	IP66 IP68 IP69	Sealing Ring	Stainless Steel	Silver	25 mm	0.984 in
Pflitsch BG225VA15TRICP	Cable Gland	85 °C	-40 C	11 mm	0.433 in					M25x1.5	IP68 IP69	Sealing Ring	Brass Nickel Plated	Silver	25 mm	0.984 in	0.591 in	15 mm	0.472 in	12 mm
