BLP05 Series

Catalog

RF MOSFET LDMOS 50V 4HSOP

Part	Supplier Device Package	Current - Test	Voltage - Rated	Gain	Voltage - Test	Power - Output	Mounting Type	Configuration	Package / Case	Package / Case	Frequency
Ampleon USA Inc. BLP05H635XRGY	4-HSOP	10 mA	135 V	27 dBi	50 V	35 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz

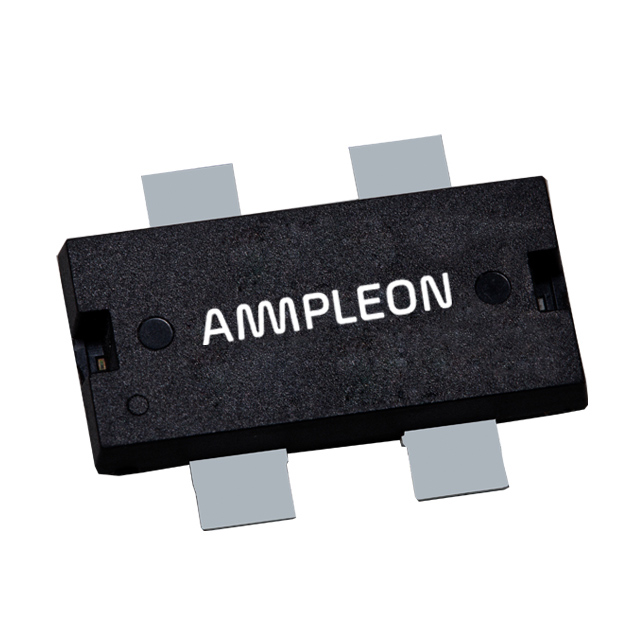

Ampleon USA Inc. BLP05H6350XRY	4-HSOPF	100 mA	135 V	27 dBi	50 V	350 W	Surface Mount	Common Source Dual		SOT-1223-2	108 MHz
Ampleon USA Inc. BLP05H6110XRY	4-HSOPF	20 mA	135 V	27 dBi	50 V	110 W	Surface Mount	Common Source Dual		SOT-1223-2	108 MHz
Ampleon USA Inc. BLP05H6250XRGY	4-HSOP	100 mA	135 V	27 dBi	50 V	250 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz
Ampleon USA Inc. BLP05H675XRGY	4-HSOP	20 mA	135 V	27 dBi	50 V	75 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz
Ampleon USA Inc. BLP05H6150XRGY	4-HSOP	100 mA	135 V	27 dBi	50 V	150 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz

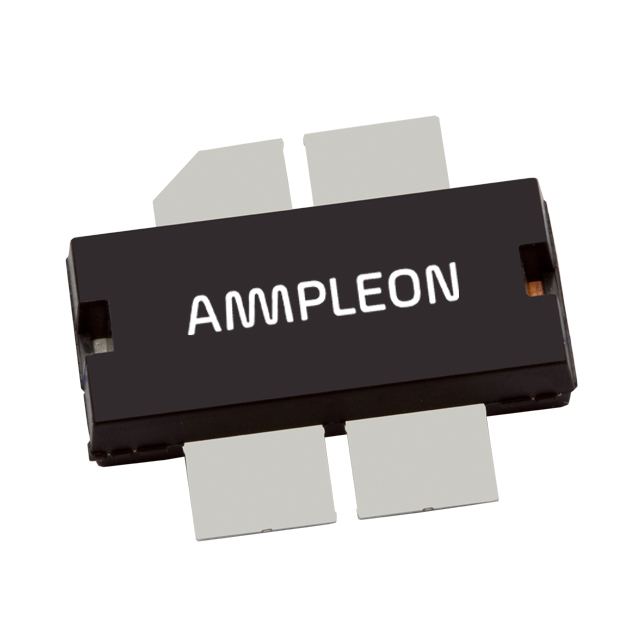

Ampleon USA Inc. BLP05M7200Y	4-HSOP	2 mA	65 V	21 dBi	28 V	210 W	Surface Mount	Common Source Dual		4-HSOPF SOT-1138	440 MHz
Ampleon USA Inc. BLP05H6350XRGY	4-HSOP	100 mA	135 V	27 dBi	50 V	350 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz
Ampleon USA Inc. BLP05H6110XRGY	4-HSOP	20 mA	135 V	27 dBi	50 V	110 W	Surface Mount	Common Source Dual	0.173 " 4.4 mm	4-BESOP	108 MHz
Ampleon USA Inc. BLP05H675XRY	4-HSOPF	20 mA	135 V	27 dBi	50 V	75 W	Surface Mount	Common Source Dual		SOT-1223-2	108 MHz
