Schaffner FN3026 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 10A DIN RAIL

Part	Current	Termination Style	Applications	Filter Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating	Approval Agency	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type
TE Connectivity AMP Connectors FN3026HP-10-71	10 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-20-71	20 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-30-71	30 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-10-71	10 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HL-30-71	30 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail

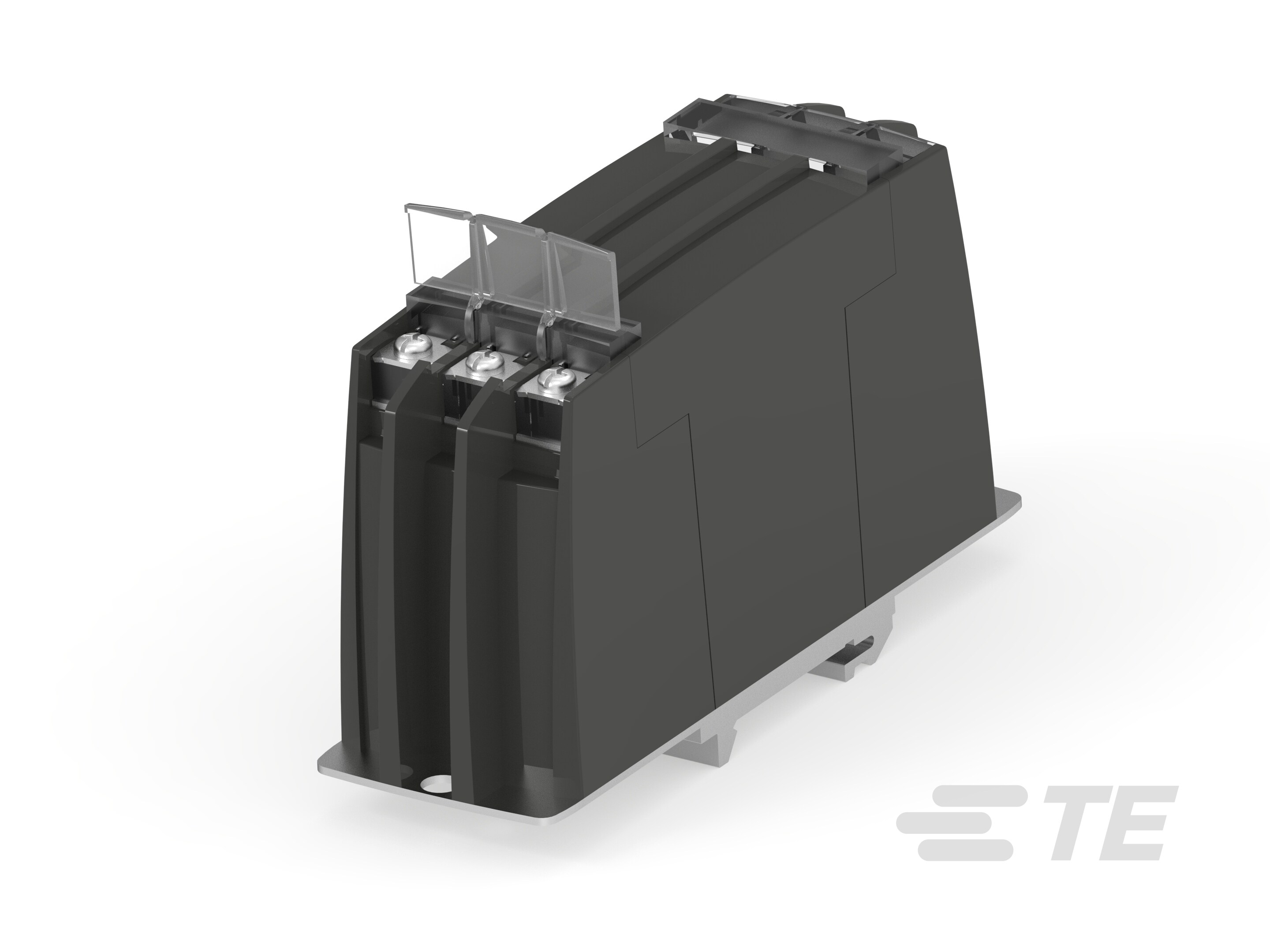

TE Connectivity AMP Connectors FN3026HP-50-72	50 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-20-71	20 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-30-71	30 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HL-20-71	20 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CSA ENEC UR	520 V	300 V	DIN Rail
TE Connectivity AMP Connectors FN3026HP-40-71	40 A	Terminal Block	General Purpose	Three Phase (Delta)	Single Stage	100 °C	-25 °C	60 Hz	CE CSA ENEC UKCA UR	520 V	300 V	DIN Rail
