207609 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

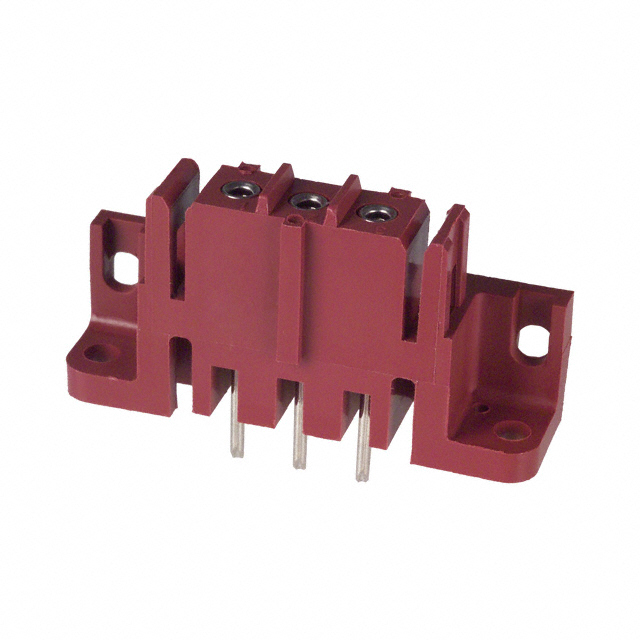

CONN HDR 3POS 0.197 TIN-LEAD PCB
| Part | Contact Material | Contact Type | Contact Finish - Post | Termination | Connector Type | Voltage Rating | Insulation Color | Mounting Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Number of Positions Loaded | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Style | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Female Socket | Tin-Lead | Solder | Header | 600 V | Black Red | Through Hole | Tin-Lead | 150 Áin | 3.81 Ám | Thermoplastic | 130 °C | -55 °C | 7.5 A | Mounting Flange | All | Circular | 150 Áin | 3.81 Ám | 1 | Latch Holder | 5 mm | 0.197 " | 0.768 " | 19.5 mm | Board to Cable/Wire | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Female Socket | Tin | Solder | Header | 600 V | Black Red | Through Hole | Gold | 150 Áin | 3.81 Ám | Thermoplastic | 130 °C | -55 °C | 7.5 A | Mounting Flange | All | Circular | 30 Áin | 0.76 Ám | 1 | Latch Holder | 5 mm | 0.197 " | 0.768 " | 19.5 mm | Board to Cable/Wire | UL94 V-0 |
