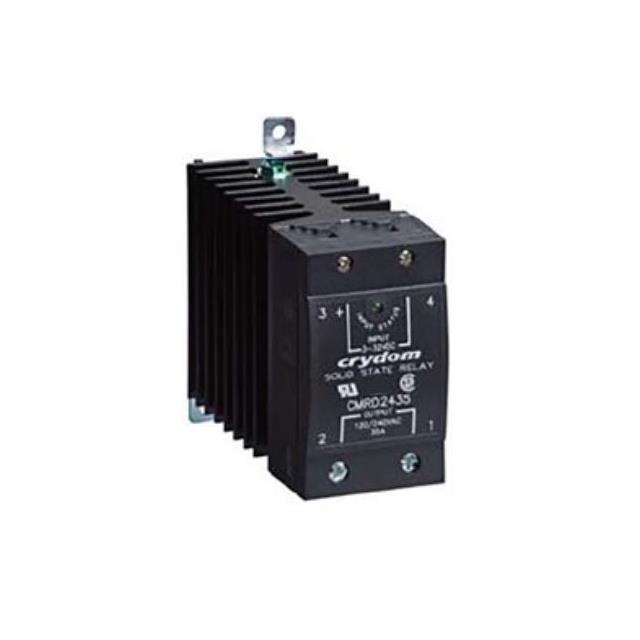

CMRD60 Series

Catalog

SSR RELAY SPST-NO 65A 48-660V

Part	Output Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style	Mounting Type	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case
Sensata-Crydom CMRD6065-10	AC	CE CSA cURus	80 °C	-40 C	660 V	48 V	Screw Terminal	DIN Rail	65 A	32 VDC	4 V	SSR with Integrated Heat Sink
Sensata-Crydom CMRD6045P	AC Zero Cross	CE CSA cURus	80 °C	-40 C	660 V	48 V	Screw Terminal	DIN Rail	45 A	32 VDC	4 V	SSR with Integrated Heat Sink
Sensata-Crydom CMRD6035	AC Zero Cross	CE CSA cURus	80 °C	-40 C	660 V	48 V	Screw Terminal	DIN Rail	35 A	32 VDC	4 V	SSR with Integrated Heat Sink
Sensata-Crydom CMRD6045	AC Zero Cross	CE CSA cURus	80 °C	-40 C	660 V	48 V	Screw Terminal	DIN Rail	45 A	32 VDC	4 V	SSR with Integrated Heat Sink
