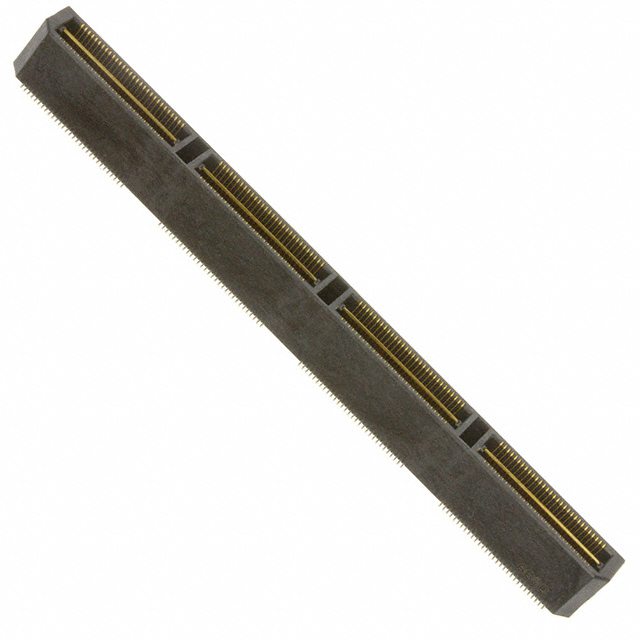

QTH-120 Series

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Catalog

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Mated Stacking Heights	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board
Samtec Inc. QTH-120-08-F-D-A	1.151 in	29.24 mm	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	30 mm	Surface Mount	Gold	0.5 mm	0.02 in

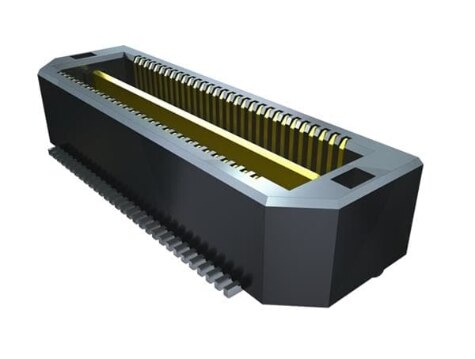

Samtec Inc. QTH-120-09-C-D-A-K			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	14 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.522 in	13.25 mm
Samtec Inc. QTH-120-04-C-D-A			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	16 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.6 in	15.24 mm
Samtec Inc. QTH-120-06-F-D	0.836 "	21.23 mm	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	22 mm	Surface Mount	Gold	0.5 mm	0.02 in	Ground Bus (Plane)
Samtec Inc. QTH-120-01-H-D-A			30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	240	5 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.16 in	4.06 mm
Samtec Inc. QTH-120-02-F-D-A			3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	8 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.286 "	7.26 mm
Samtec Inc. QTH-120-02-L-D-A-K-TR			10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	240	8 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.286 "	7.26 mm
Samtec Inc. QTH-120-07-C-D-A			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	25 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.954 in	24.23 mm
Samtec Inc. QTH-120-04-H-D-A-K			30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	240	16 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.6 in	15.24 mm
Samtec Inc. QTH-120-03-L-D			10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	240	11 mm	Surface Mount	Gold	0.5 mm	0.02 in	Ground Bus (Plane)	0.404 in	10.27 mm
