2355091 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

MICRO CT CONN SINGLE ROW HDR ASS

Part	Shrouding	Termination	Current Rating (Amps)	Contact Type	Contact Shape	Voltage Rating	Number of Positions	Contact Finish - Post	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Material Flammability Rating	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Connector Type	Number of Positions Loaded	Features	Style
TE Connectivity Raychem Cable Protection 2-2355091-4	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	24	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

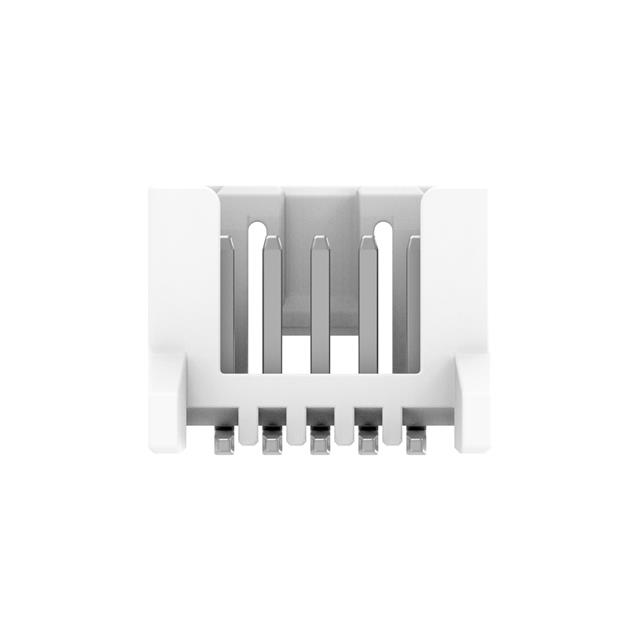

TE Connectivity Raychem Cable Protection 2355091-5	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC		Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

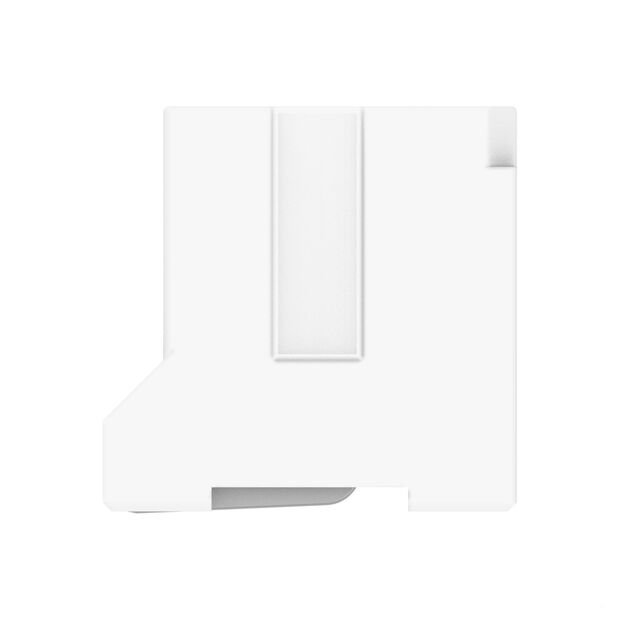

TE Connectivity Raychem Cable Protection 1-2355091-1	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	11	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

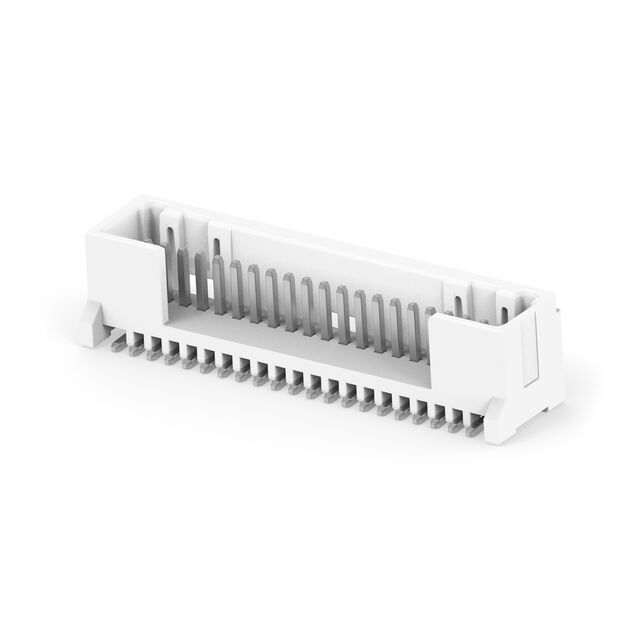

TE Connectivity Raychem Cable Protection 2-2355091-1	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	21	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

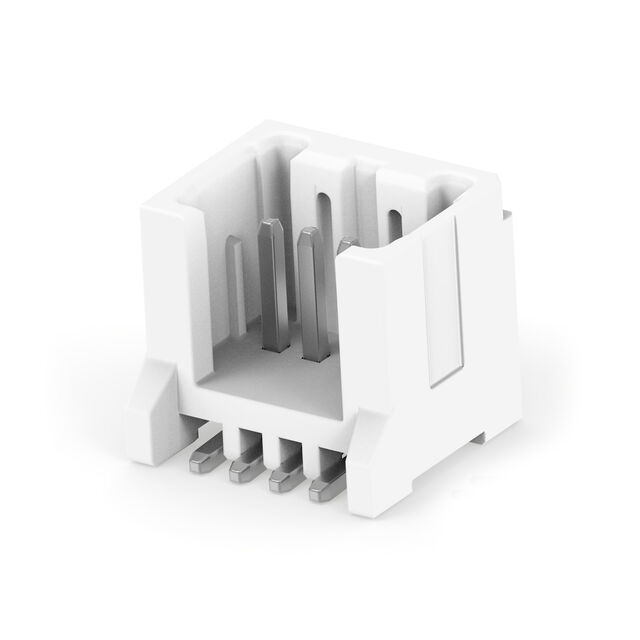

TE Connectivity Raychem Cable Protection 2355091-4	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	4	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

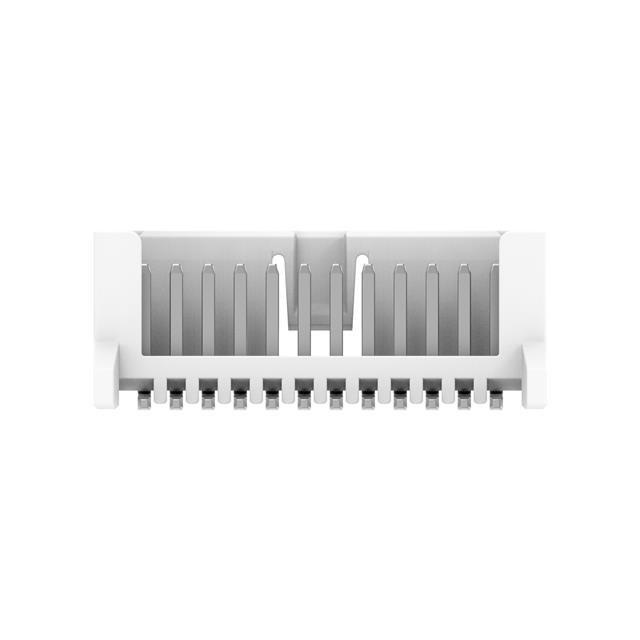

TE Connectivity Raychem Cable Protection 1-2355091-2	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	12	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

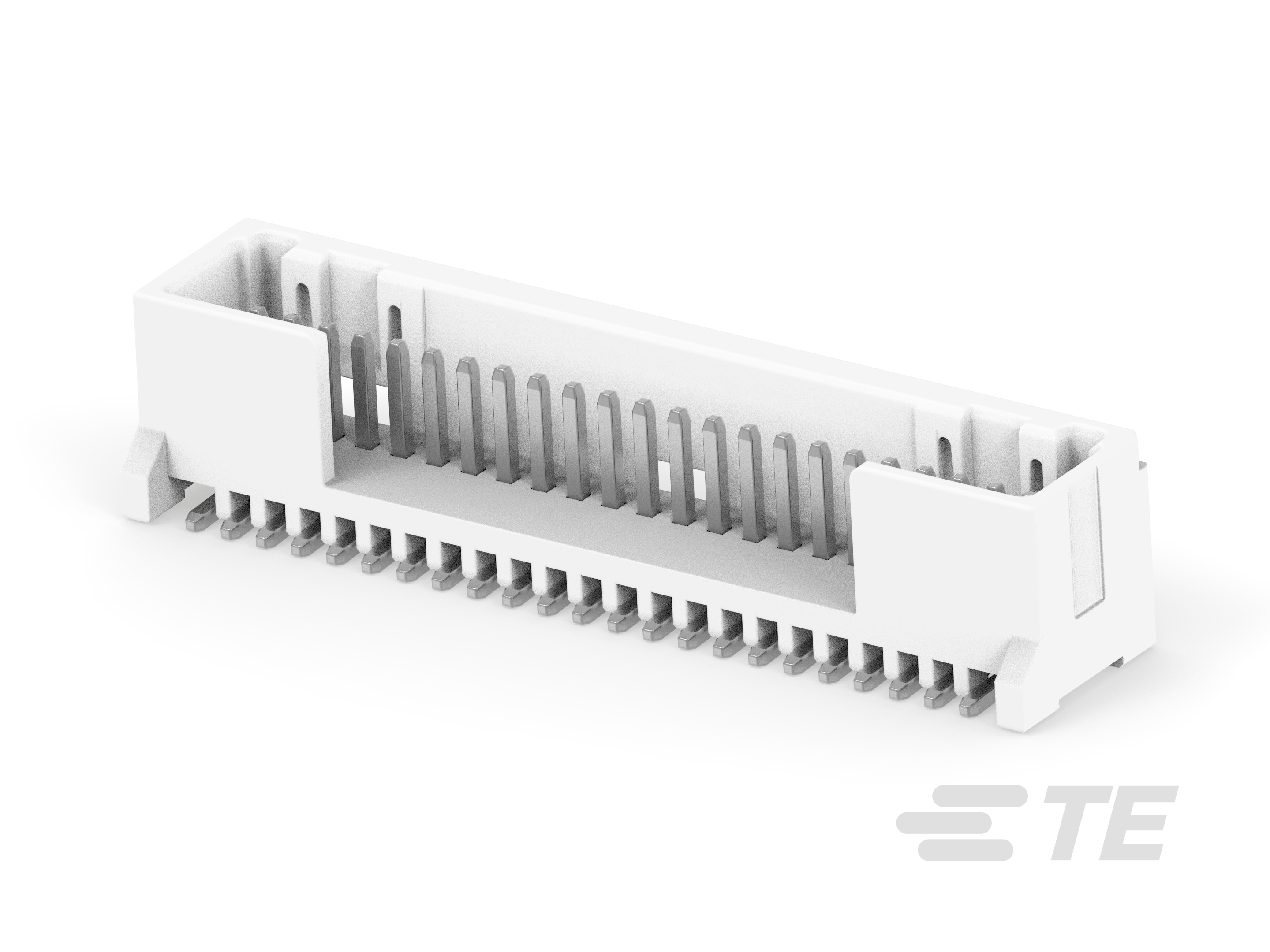

TE Connectivity Raychem Cable Protection 2-2355091-3	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	23	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

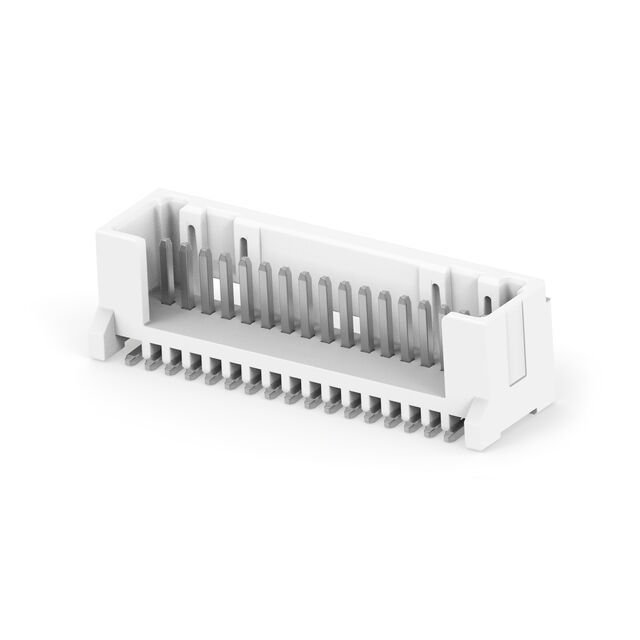

TE Connectivity Raychem Cable Protection 1-2355091-7	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC		Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire

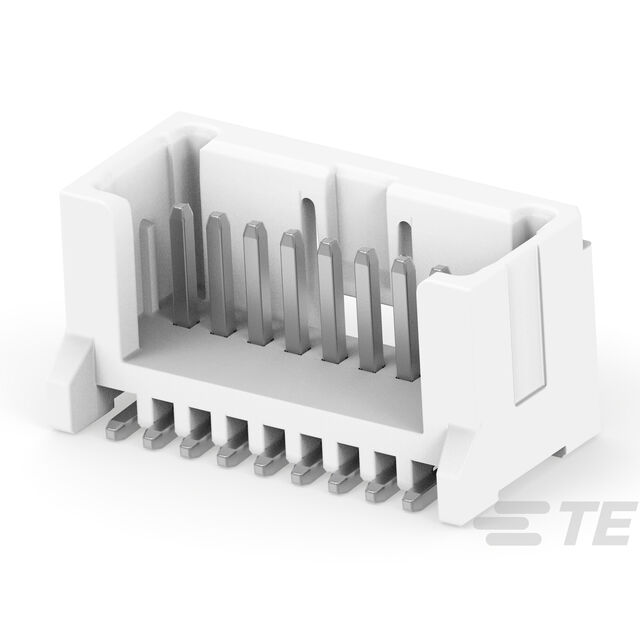

TE Connectivity Raychem Cable Protection 2355091-9	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	9	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 1-2355091-8	Shrouded - 3 Wall	Solder	2 A	Male Pin	Square	50 VAC	18	Tin	Copper Alloy	0.136 in	3.45 mm	Surface Mount	0.047 in	1.2 mm	Natural	Push-Pull	UL94 V-0	Thermoplastic	1	-30 ░C	85 °C	0.264 in	6.7 mm	Header	All	Board Guide	Board to Cable/Wire
