Zpa0 Series Series

Basic / Snap Action Switches .1A 30VDC/125AC 80gf pin plunger no leve

Catalog

Basic / Snap Action Switches .1A 30VDC/125AC 80gf pin plunger no leve

Part	Differential Travel	Differential Travel	Overtravel [custom]	Overtravel [custom]	Release Force	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Operating Force	Circuit	Voltage Rating - DC	Switch Function	Mechanical Life	Actuator Type	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Operating Position [x]	Operating Position [x]	Mounting Type	Operating Position	Operating Position	Differential Travel
LITTELFUSE ZPA00A150L04T	0.031 in	0.8 mm	0.025 in	0.6 mm	8 gf	Gull Wing	85 °C	-40 C	0.12 in	3 mm	150 gf	SPST-NO	30 V	Off-Mom	1000000 Cycles	Lever Straight	300000 Cycles	100 mA	125 V	0.312 in	7.9 mm	Surface Mount
LITTELFUSE ZPA00A080P00T		0.005 in	0.008 in	0.2 mm	21 gf	Gull Wing	85 °C	-40 C	0.024 in	0.6 mm	80 gf	SPST-NO	30 V	Off-Mom	1000000 Cycles	Round (Pin Plunger)	300000 Cycles	100 mA	125 V			Surface Mount	7 mm	0.276 in	0.13 mm

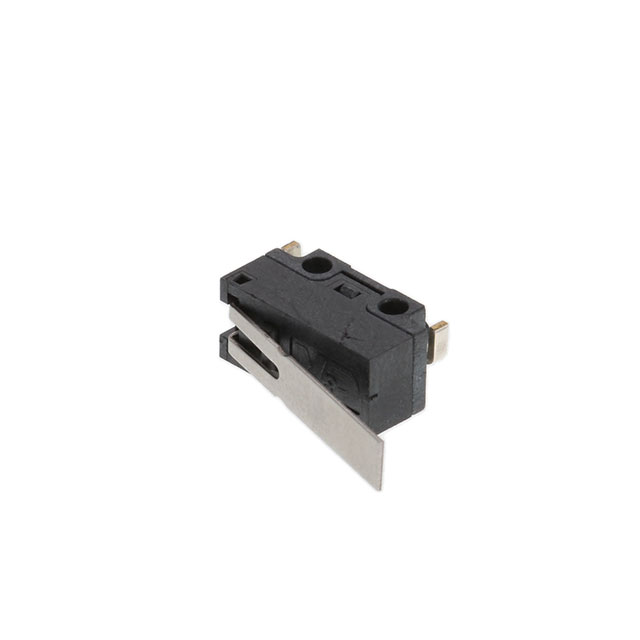

LITTELFUSE ZPA00A150L11T	0.031 in	0.8 mm	0.025 in	0.6 mm	6 gf	Gull Wing	85 °C	-40 C	0.172 "	4.4 mm	39 gf	SPST-NO	30 V	Off-Mom	1000000 Cycles	Lever Straight	300000 Cycles	100 mA	125 V			Surface Mount	8.7 mm	0.343 in

Catalog

Basic / Snap Action Switches .1A 30VDC/125AC 80gf pin plunger no leve

Description

C&K’s ZPA series is the newest SMT type mini size package size snap switch. It is a surface mount switch suitable for automatic pick and placed on PCB during production. Fully process sealed.
