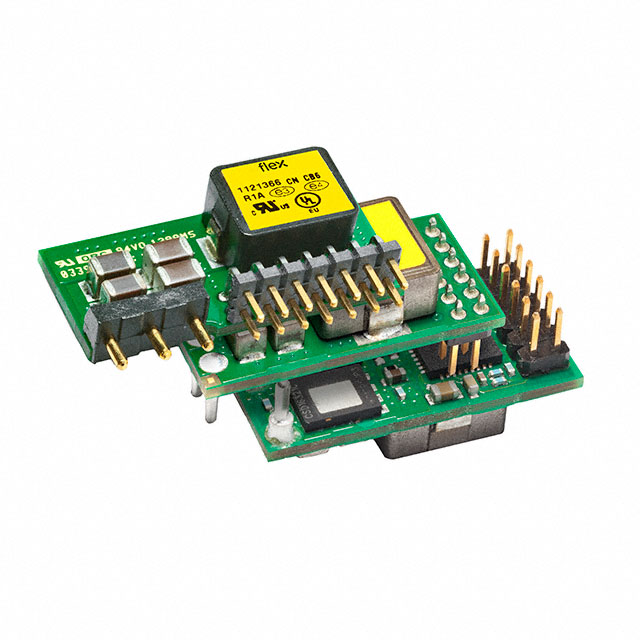

BMR463 Series
Manufacturer: Flex Power Modules
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 0.6-3.3V 66W
| Part | Voltage - Input (Min) | Current - Output (Max) | Voltage - Output 1 (Min) | Voltage - Output 1 (Max) | Voltage - Input (Max) | Approval Agency | Standard Number | Operating Temperature (Min) | Operating Temperature (Max) | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Mounting Type | Package / Case | Features | Type | Applications | Number of Outputs | Control Features | Power (Watts) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 4.5 V | 20 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.3 in | 1.04 in | 0.61 in | Through Hole | 17-SIP Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 66 W | 94.8 % |
Flex Power Modules | 4.5 V | 25 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.54 in | 1.01 in | 0.32 in | Surface Mount | 15-SMD Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 83 W | 95.2 % |
Flex Power Modules | 4.5 V | 20 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.54 in | 1.01 in | 0.32 in | Through Hole | 15-DIP Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 66 W | 94.8 % |
Flex Power Modules | 4.5 V | 25 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.3 in | 1.04 in | 0.61 in | Through Hole | 17-SIP Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 83 W | 95.1 % |
Flex Power Modules | 4.5 V | 25 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.54 in | 1.01 in | 0.32 in | Through Hole | 15-DIP Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 83 W | 95.2 % |
Flex Power Modules | 4.5 V | 20 A | 0.6 V | 3.3 V | 14 V | CB CSA IEC TUV UL | 62368-1 | -40 °C | 125 °C | 0.54 in | 1.01 in | 0.32 in | Surface Mount | 15-SMD Module | Adjustable Output PMBus™ Remote On/Off Remote Sense | Digital Non-Isolated PoL Module | ITE (Commercial) | 1 | Active High Enable | 66 W | 94.8 % |
