337-030 Series
Manufacturer: EDAC Inc.
Beta
⌘K

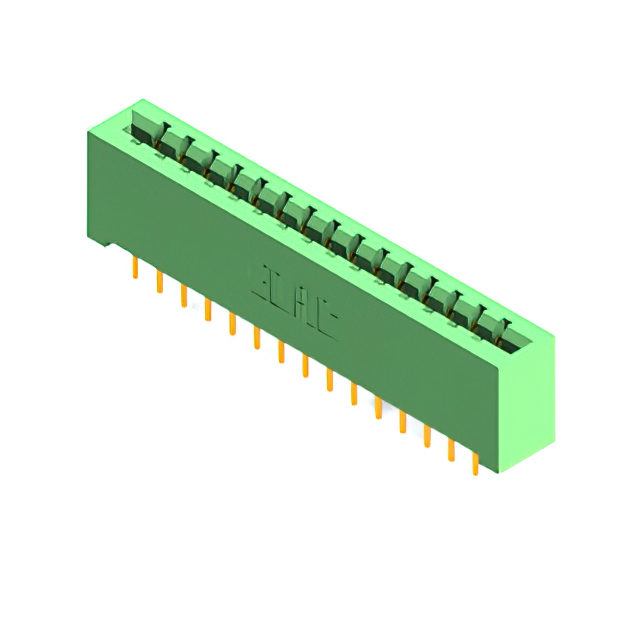

CONN EDGE SGL FMALE 30POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Gender | Number of Positions | Termination | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Read Out | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Material | Flange Feature | Pitch | Pitch | Mounting Type | Termination Rows [custom] | Number of Rows [custom] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Through Hole | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Wire Wrap | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | Right Angle Through Hole | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Wire Wrap | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Right Angle Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 15 | Female | 30 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | -40 C | 105 ░C | Non Specified - Dual Edge | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Board Edge Straddle Mount | 2 | 2 | Card Extender Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Through Hole | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Wire Wrap | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 15 | Female | 30 | Solder Eyelet(s) | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | -40 C | 105 ░C | Non Specified - Dual Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | Through Hole | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 15 | Female | 30 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | -40 C | 105 ░C | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | 2 | 2 | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 30 | Female | 30 | Wire Wrap | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Green | 1 | -40 C | 105 ░C | Non Specified - Single Edge | Copper Alloy | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | Gold | 0.25 Ám | 10 Áin | 15 | Female | 30 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | -40 C | 105 ░C | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | 3.96 mm | 0.156 in | Board Edge Straddle Mount | 2 | 2 | Card Extender | 0.128 " | 3.25 mm |
