SN10 Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKE, 72UH, 3A

Part	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]	Filter Type	Mounting Type	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Height (Max)	Height (Max) [Max] [z]
KEMET SN10-400	72 µH	42 mOhm	22.5 mm	0.886 in	3 A	Power Line	Through Hole	2	105 ░C	-25 °C	No Base Vertical	2 Lead

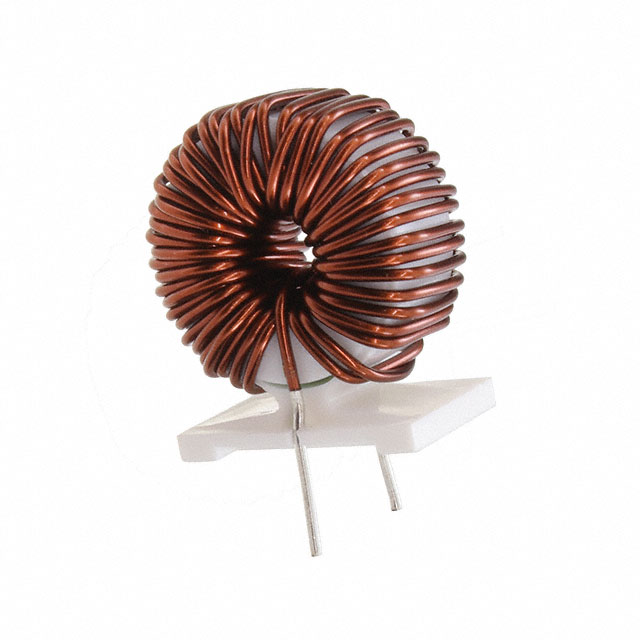

KEMET SN10-500J	110 µH				3 A	Power Line	Through Hole	2	105 ░C	-25 °C	Vertical 2 PC Pin		26 mm	1.024 in

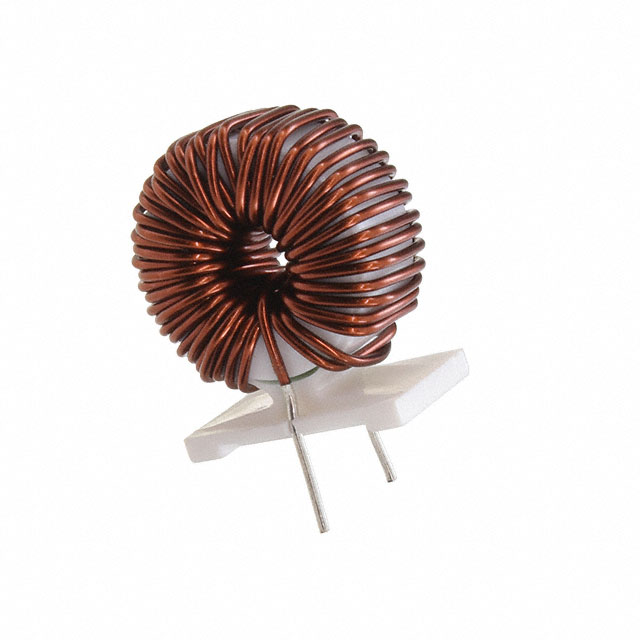

KEMET SN10-300J	40 µH	41 mOhm			3 A	Power Line	Through Hole	2	105 ░C	-25 °C	Vertical 2 PC Pin		26 mm	1.024 in
