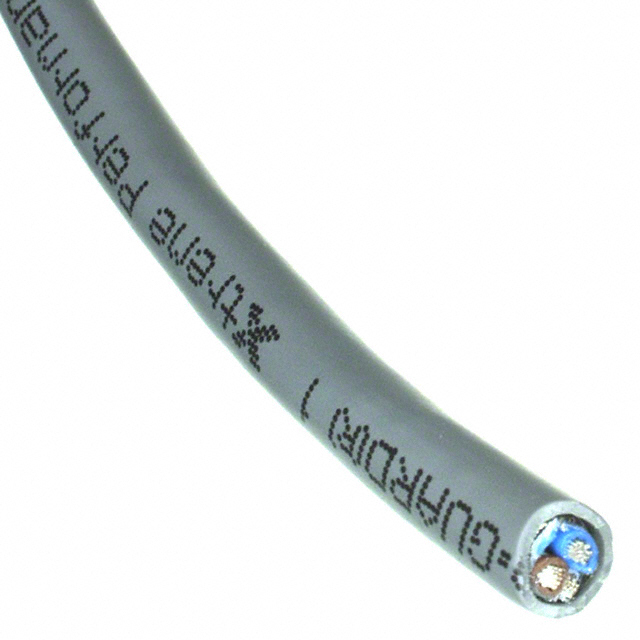

5172/1C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 16AWG 1000=1000'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Number of Conductors | Conductor Material | Usage | Features | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Shield Type | Jacket (Insulation) Material | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 19 | 0.0117 in | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | 2 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.278 in | 7.06 mm | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Braid Foil | Poly-Vinyl Chloride (PVC) | ||||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 19 | 0.0117 in | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | 2 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.278 in | 7.06 mm | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 19 | 0.0117 in | Black | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | 2 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.278 in | 7.06 mm | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 19 | 0.0117 in | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | 2 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.278 in | 7.06 mm | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Braid Foil | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 19 | 0.0117 in | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | 2 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | 16 AWG | Poly-Vinyl Chloride (PVC) | 0.278 in | 7.06 mm | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Braid Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
