AFB0648 Series

Catalog

FAN AXIAL 60X25.4MM 48VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Termination	Fan Type	Voltage - Rated	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Bearing Type	Power (Watts)	Width [y]	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Static Pressure	Features

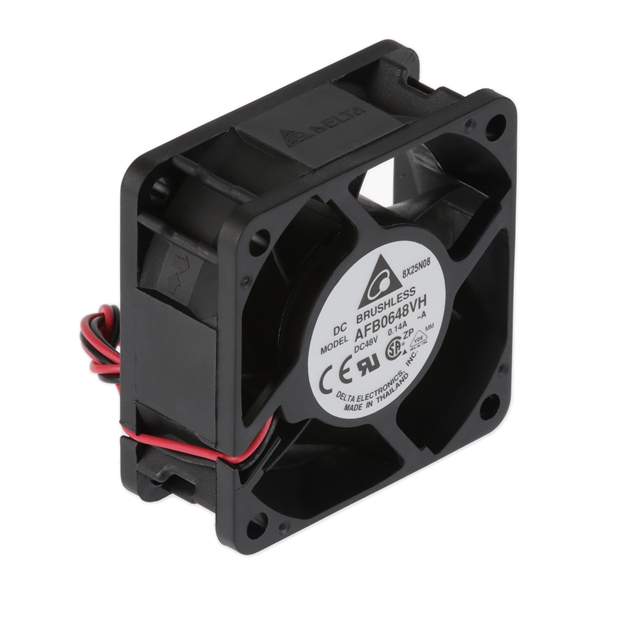

Delta Electronics AFB0648VH-A	Plastic	70000 Hrs	28 V	56 VDC	0.09 A	Plastic	2 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	5500 RPM	Ball	4.32 W	25.4 mm	0.854 m³/min	30.5 CFM	42.5 dB	0.345 in H2O	85.9 Pa	60 mm	60 mm	CE CSA UL VDE

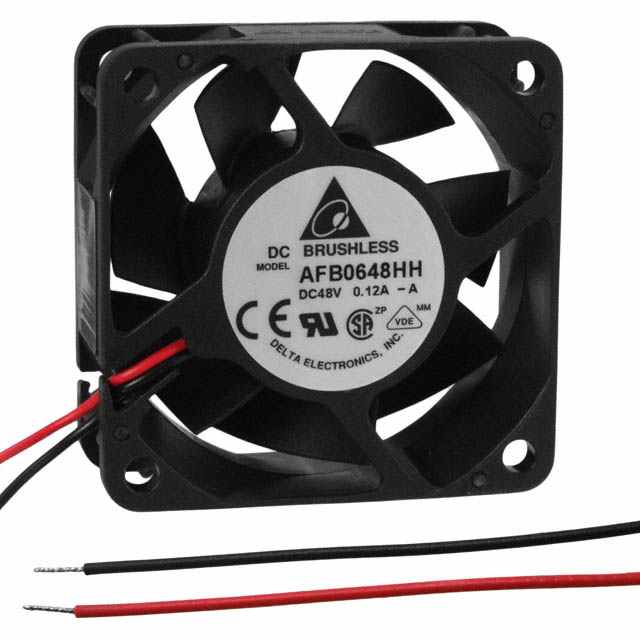

Delta Electronics AFB0648HH-A	Plastic	70000 Hrs	28 V	56 VDC		Plastic	2 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	5000 RPM	Ball	3.84 W	25.4 mm	0.77 m³/min	27.5 CFM	40 dB(A)	73.2 Pa		60 mm	60 mm	CE CSA UL VDE	0.294 in H2O
Delta Electronics AFB0648VH-AF00	Plastic	70000 Hrs	28 V	56 VDC	0.09 A	Plastic	3 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	5500 RPM	Ball	4.32 W	25.4 mm	0.854 m³/min	30.5 CFM	42.5 dB	0.345 in H2O	85.9 Pa	60 mm	60 mm	CE CSA UL VDE		Locked Rotor Protection Speed Sensor (Tach)

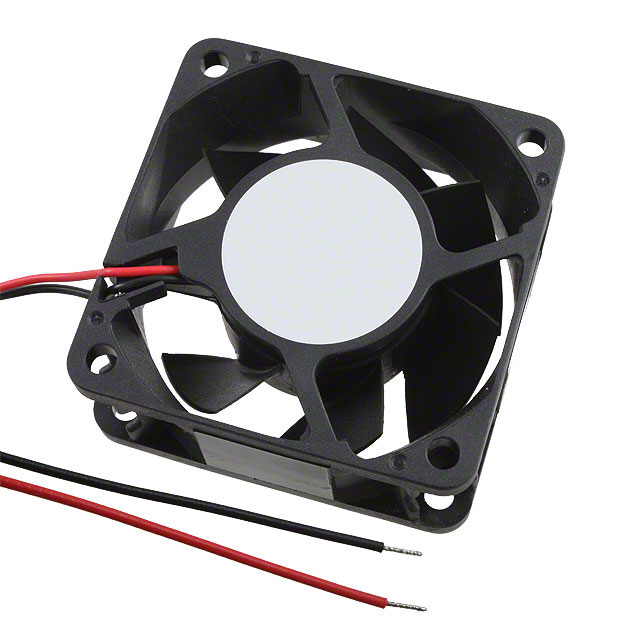

Delta Electronics AFB0648SH-A	Plastic	70000 Hrs	20 VDC	56 VDC	110 mA	Plastic	2 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	6000 RPM	Ball	5.28 W	25.4 mm	0.958 m³/min	34.2 CFM	44.5 dB	105.1 Pa		60 mm	60 mm	CE CSA UL VDE	0.422 in H2O
Delta Electronics AFB0648EH-ABF00	Plastic	70000 Hrs	20 VDC	56 VDC	140 mA	Plastic	3 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	6800 RPM	Ball	6.72 W	25.4 mm	1.08 m³/min	38.4 CFM	46.5 dB	135.5 Pa		60 mm	60 mm		0.544 in H2O	Locked Rotor Protection Speed Sensor (Tach)

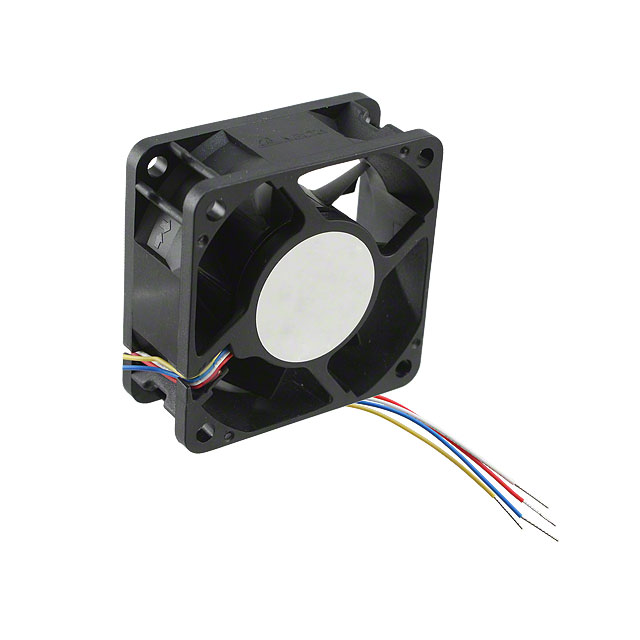

Delta Electronics AFB0648EH-TP27	Plastic	70000 Hrs	36 VDC	60 V	140 mA	Plastic	4 Wire Leads	Tubeaxial	48 VDC	0.176 lb	80 g	70 °C	-10 °C	6800 RPM	Ball	6.72 W	25.4 mm	1.08 m³/min	38.4 CFM	46.5 dB	135.5 Pa		60 mm	60 mm	CE CSA UL VDE	0.544 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)
