PBC19 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 19POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Fastening Type	Shrouding	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Material	Material Flammability Rating	Contact Shape	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Connector Type	Contact Type	Insulation Material	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

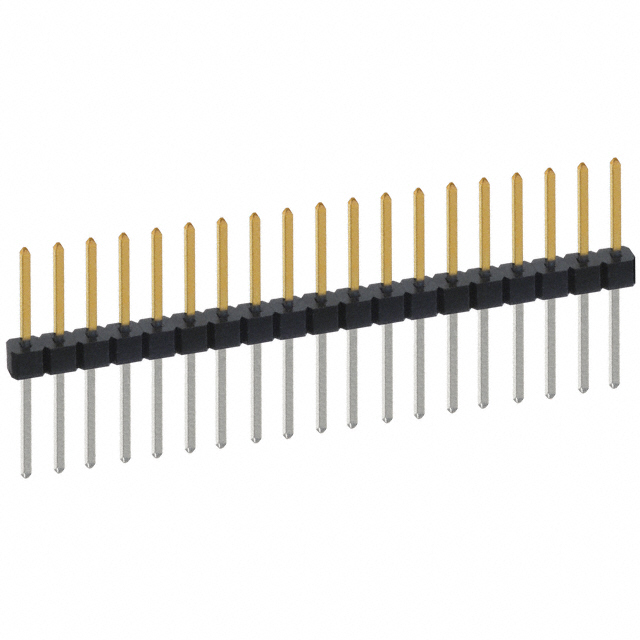

Sullins Connector Solutions PBC19SFBN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	19	8.08 mm	0.318 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	0.638 in	16.21 mm	3 A	1	Gold	Tin	5.58 mm	0.22 in	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black

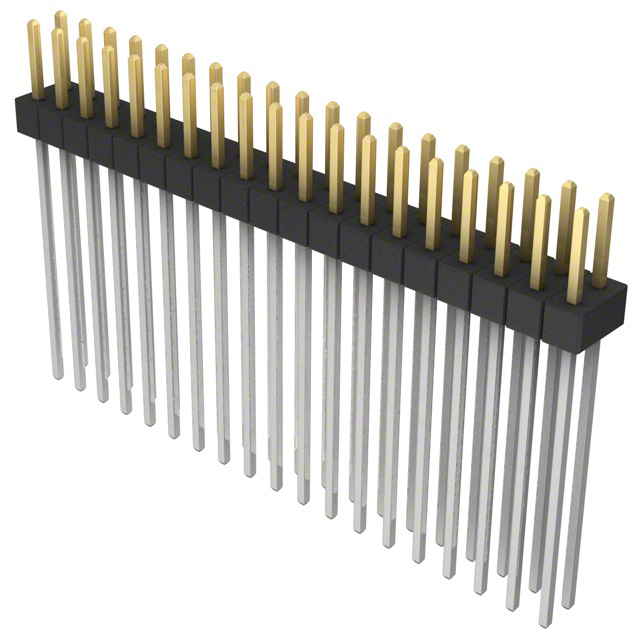

Sullins Connector Solutions PBC19DAHN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	1.15 in	29.21 mm	3 A		Gold	Tin	20.83 mm	0.82 in	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2
Sullins Connector Solutions PBC19SAGN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	19	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	1.05 in	26.67 mm	3 A	1	Gold	Tin	18.29 mm	0.72 "	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black
Sullins Connector Solutions PBC19SFCN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	19	8.08 mm	0.318 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm		18.75 mm	3 A	1	Gold	Tin	8.13 mm	0.32 in	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black				0.738 in
Sullins Connector Solutions PBC19DABN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	0.56 in	14.22 mm	3 A		Gold	Tin	5.84 mm	0.23 "	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2
Sullins Connector Solutions PBC19SAEN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	19	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	0.85 in	21.59 mm	3 A	1	Gold	Tin	13.21 mm	0.52 in	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black
Sullins Connector Solutions PBC19DAFN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm	0.95 in	24.13 mm	3 A		Gold	Tin			0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2		15.75 mm	0.62 "
Sullins Connector Solutions PBC19DBAN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	5.84 mm	0.23 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm			3 A		Gold	Tin	2.54 mm	0.1 in			Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2				6.1 mm	0.24 in
Sullins Connector Solutions PBC19DGAN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	8.08 mm	0.318 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm			3 A		Gold	Tin	2.54 mm	0.1 in			Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2				6.1 mm	0.24 in
Sullins Connector Solutions PBC19DFCN	2.54 µm	100 µin	All	Push-Pull	Unshrouded	38	8.08 mm	0.318 in	Phosphor Bronze	UL94 V-0	Square	Board to Board Cable	0.25 µm	10 µin	0.1 "	2.54 mm		18.75 mm	3 A		Gold	Tin	8.13 mm	0.32 in	0.1 in	2.54 mm	Header Breakaway	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	-65 ░C	125 °C	Black	0.1 in	2.54 mm	2	0.738 in
